FootBoard mountinG
• Unscrew 4 scres from the footboard and x the
board on the base frame.
PaPer roll holder
• Separate the paper roll from the holder.
Slide the right holder to the middle to free the
screw hole.
• Unscrew 2 screws from the head support and x
the paper roll holder with them onto the support.
- 218 - eBike II L / EL - uncrating instructions

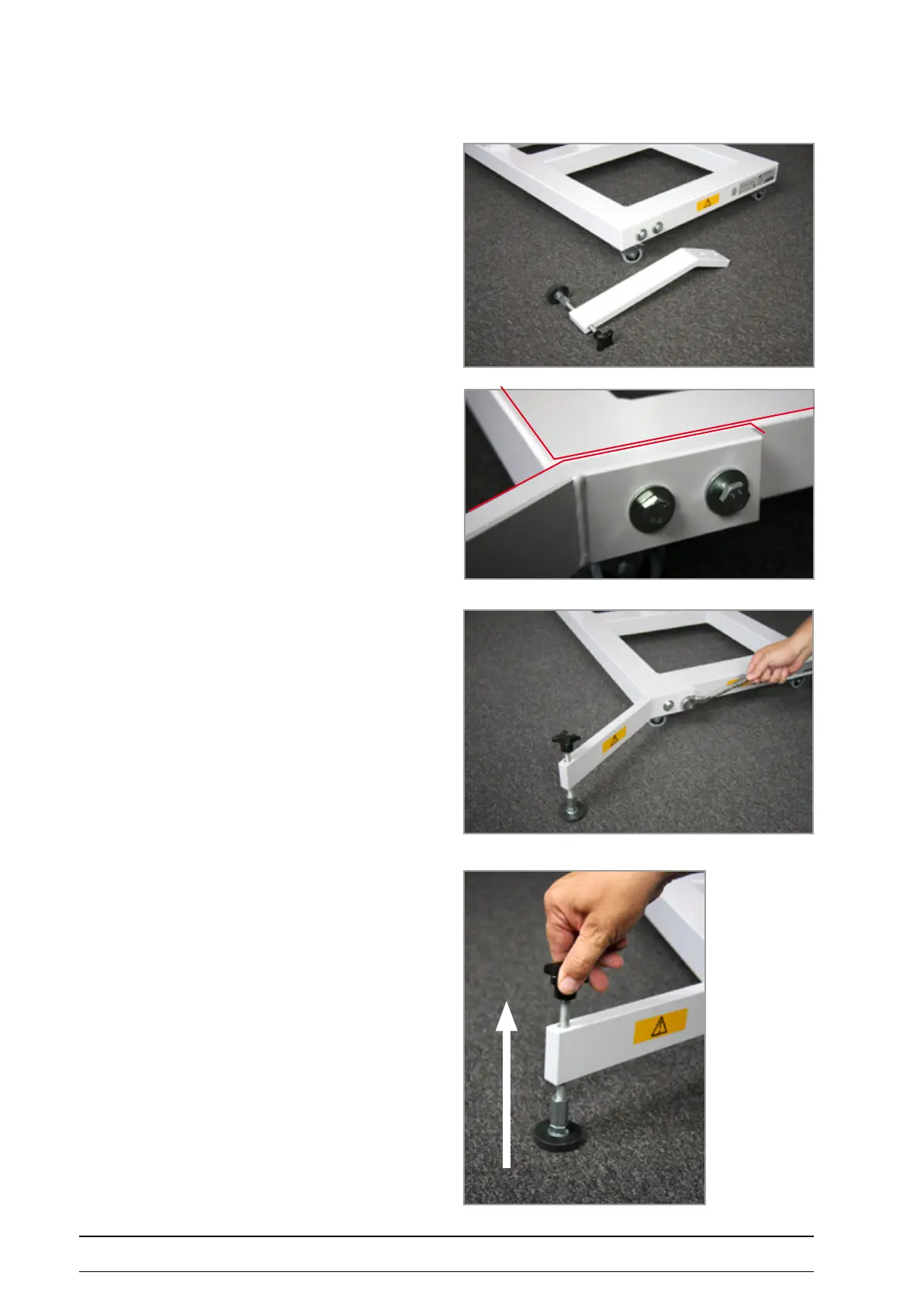

outriGGer mountinG (eBike el)
• Unscrew the 2 screws (17 mm) with washer from
the base frame.
• Fix the outrigger with these screws (wrench 17
mm) and tighten them.
Take care to mount the outrigger in parallel to
the base frame.
• For transport to the nal location, screw the
screw foot into the top position.
