analog CoMparIson (CalIBratIon)
This function is used to allign the analog remote signals
(input and output) to the corresponding ECG devices.
The eBike II ergometers have to be equipped with the
optional „COM-Modul“. This module is placed onto the
9-pin DSUB connector and screwed to the chassis.
Additionally, a jumper connector has to be placed on the
BKE board.
The COM module handles one analog input and 6 analog
output signals from/to external devices.
Select the analog signal to be aligned and conrm
with ENTER.
alignMent of analog input / output SignalS
Analog Calibration
Input 1 Load
Output 1 Load
Output 2 Heart.
Output 3 Syst.
Output 4 Diast.
RETURN
Hint
• To allign the analog load signals, the corresponding ECG
recorder should be connected as a reference voltage
source.
• Disconnect a RS232- or USB cable, if connected.
• The allignment of the analog signals can be controlled
after leaving the service menu (e.g. by starting a remote
controlled stress test).

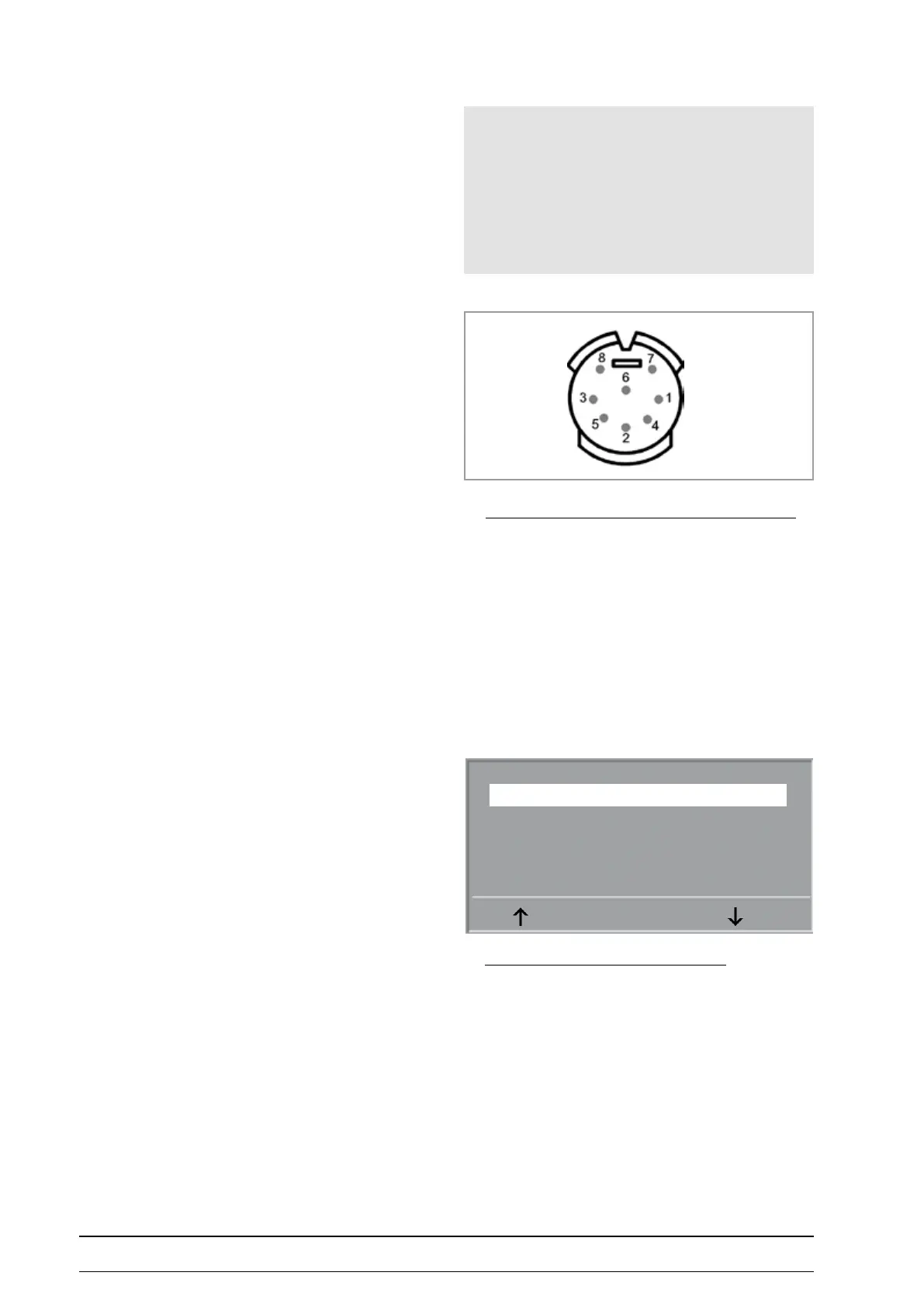

Signal aSSignMent of analog connector (coM Module)
Pin 1 : INPUT Load
Pin 2:
reserved - do not connect
Pin 3: reserved - do not connect
Pin 4: OUTPUT BP heartrate
Pin 5: OUTPUT Load
Pin 6: OUTPUT Diastole
Pin 7: OUTPUT rpm
Pin 8: OUTPUT Systole
Housing: Signal GND
