MeCHanICal asseMBly
Controls and IndICators
1 Control terminal
2 Blood pressure cu connection (option)
3 Adjustment of the handlebar angle
4 Blood pressure cu
5 Adjustment of the handlebar height
(eBike comfort only)
6 Castors
7 Speed display (RPM) for patient
8 Adjustment of the saddle height (eBike 100 only)
9 Digital saddle height indication
(eBike comfort only)
10 Power switch (green button)
11 Sockets for power cord and connection cables
(underside of ergometer)
12 Levelling devices to adjust the ergometer to uneven
oors

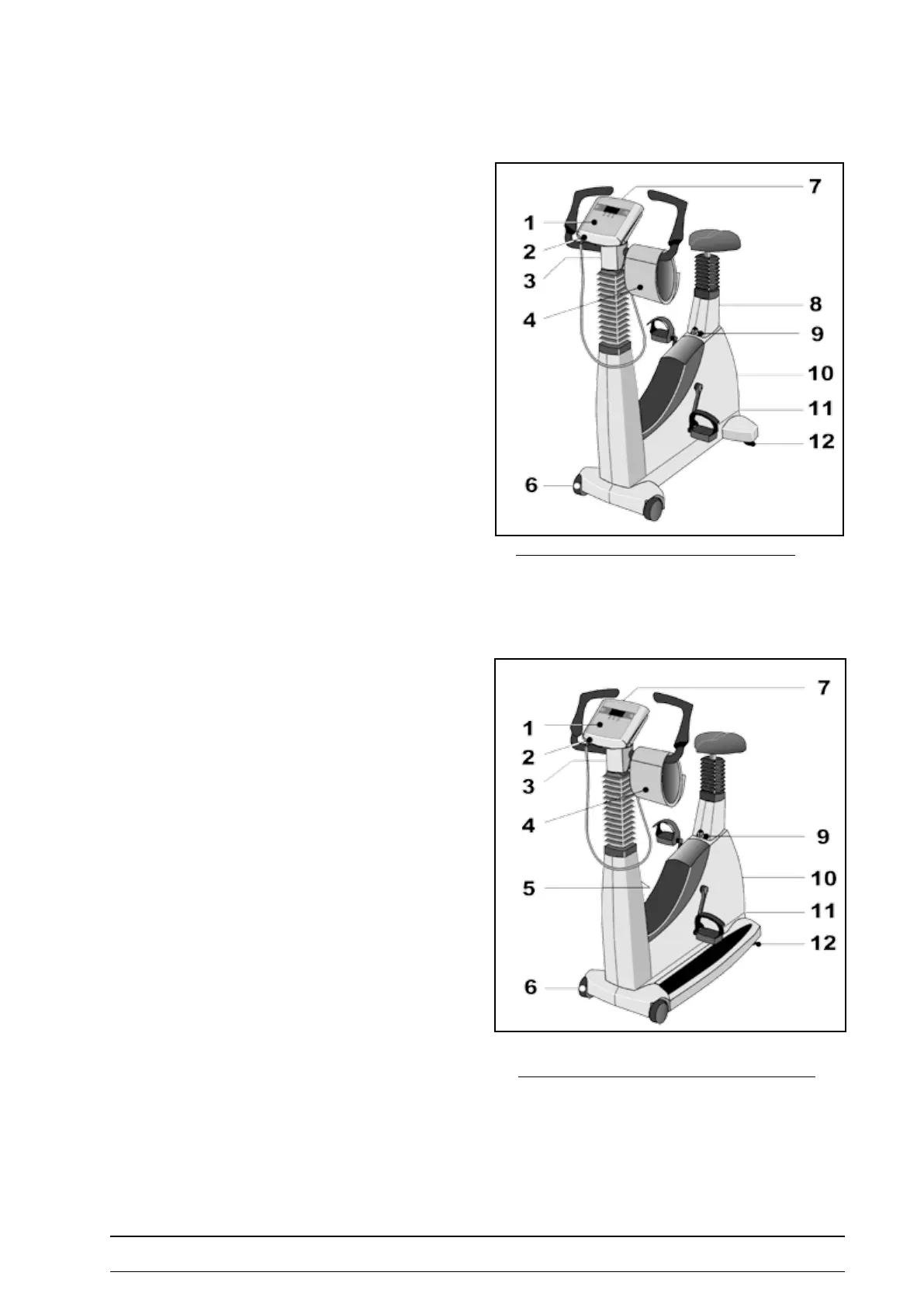

ebiKe baSic - controlS, connectionS and indicatorS
ebiKe coMfort - controlS, connectionS and indicatorS
