GE eBike BASIC - BDE - Bloodpressure PCB; PNE - Bloodpressure Pneumatic Unit

2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 37 -

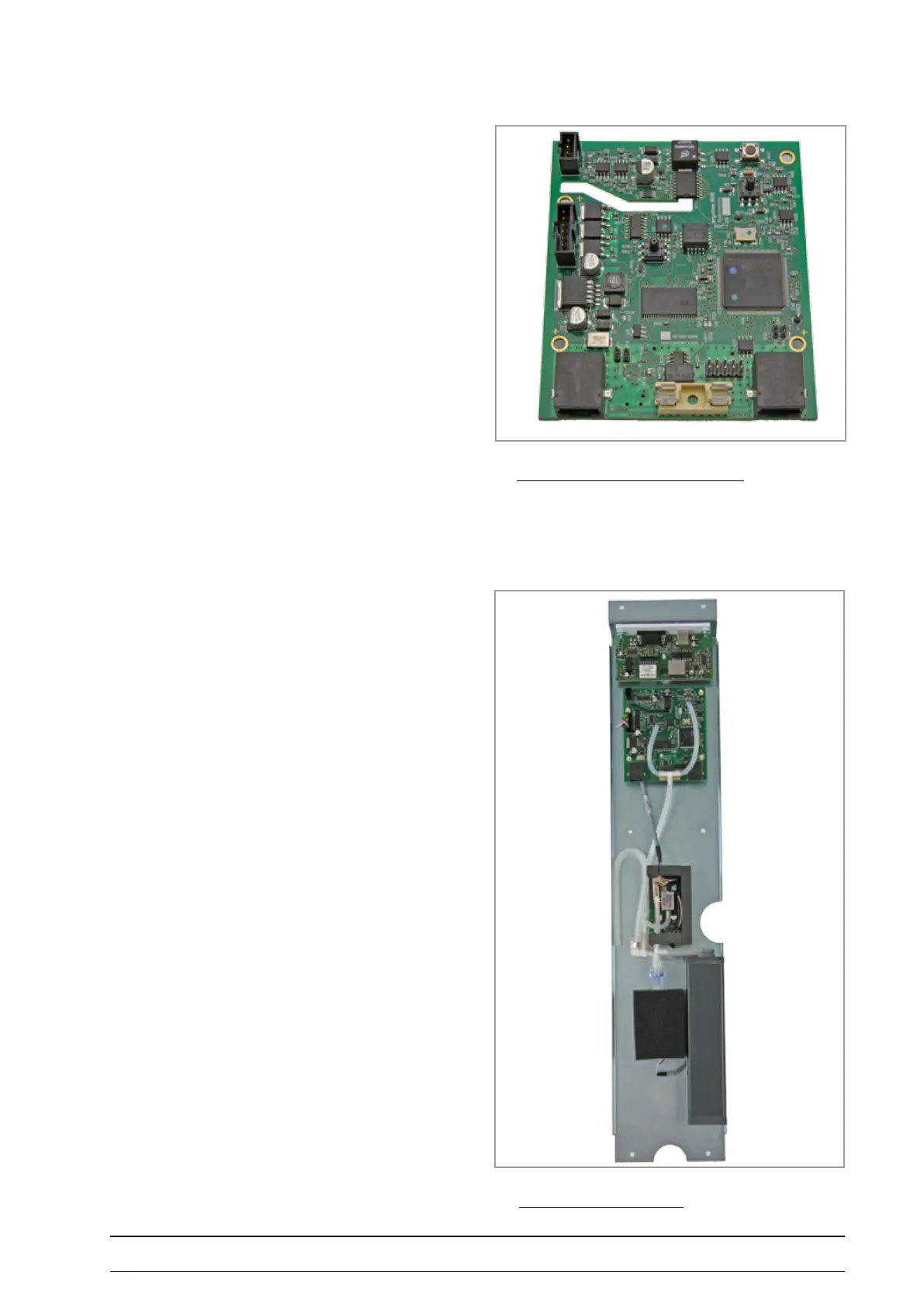

Bde - Bloodpressure pCB
The BDE electronics is responsible for analysing the
microfone signals and controlling the valves and the
pump.
The input of the microphone (upper left in picture) is
galvanically separated.
A redundant surveillance system (2 nd pressure sensor)
continously monitores the actual cu pressure and the
pump time.
By use of the two RJ-45 jacks the BDE board is connected
to the eBike II bus system.
pne - Bloodpressure pneuMatIC unIt
Depending on the actual ergometer type, the pneumatic
components (pump, valves, compensating container) are
arranged on dierent positions.
Electronic cabling and connection of the pressure tubes is
nevertheless identical.
bde- bloodpreSSure MeaSureMent board
ergoMeter bloodpreSSure unit
