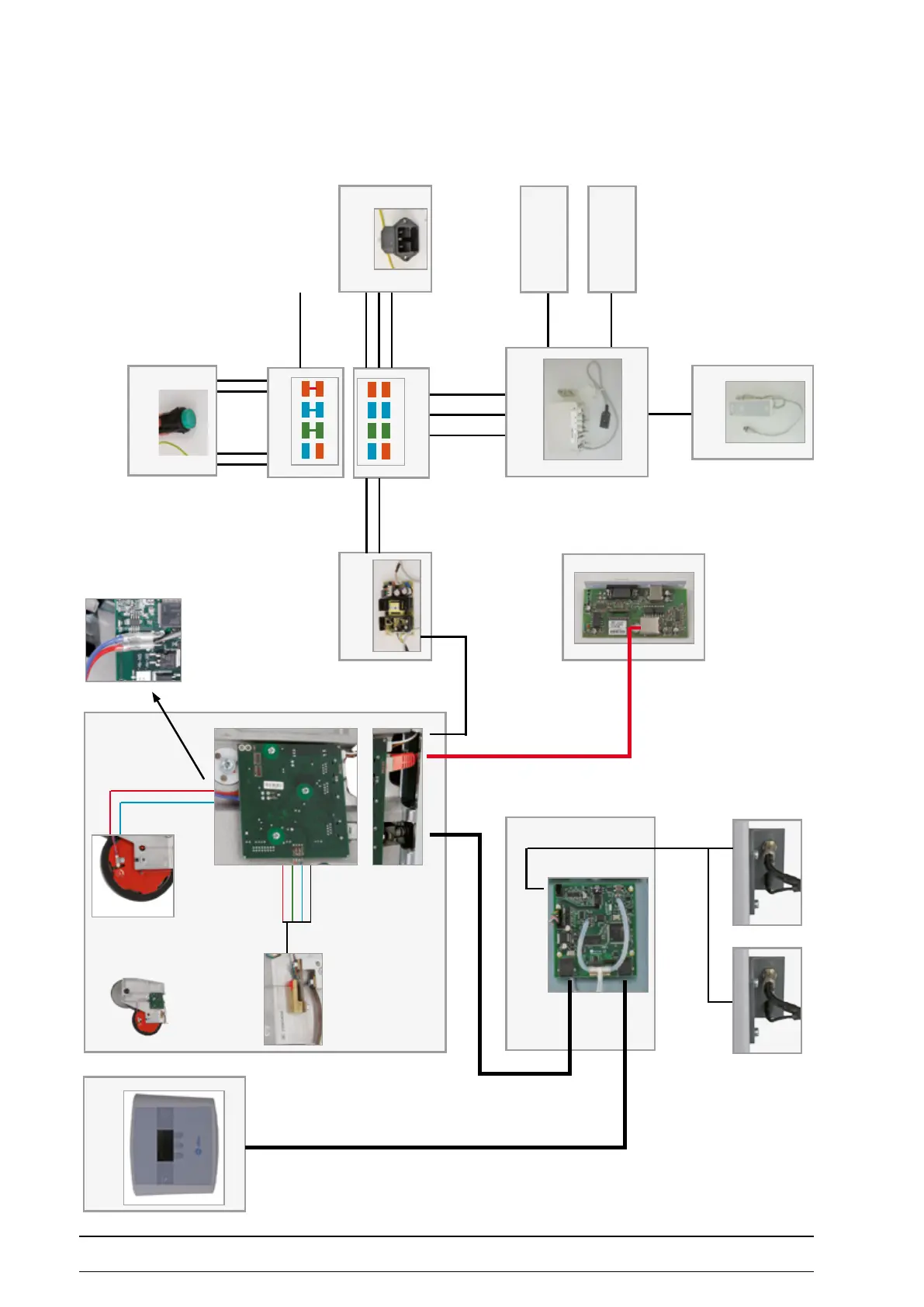

GE eBike BASIC - Wiring Diagram Ebike II L with NIBP and BCU

E F G H A B C D
5 6 7 8 1 2 3 4
Strain gauge
red (rot) green (grün) blue (blau) black (schw.)
Drive unit
Control terminal
red (rot)
blue (blau)
Modular connector
Power supply
patch cable BLACK
Eddie current brake
LRE PCB
RJ-45 RJ-45 RJ-45
RS-232
RJ-45
X11
brown/white
Bloodpressure module
patch cable BLACK
BKE module (interface)
patch cable RED (RS-232)
RJ-45
RJ-45
RJ-45
BDE PCB
X1
X16
microphone cable
cu connector panel left cu connector panel right
Power switch
Modular connector
Power input
EC / G
B / F
PE
A D / H
1 5 2 (PE)
3 4
Motor control
Saddle motor
Motor longitudinal
Remote control
786 (PE)
2 1
2 1
DSUB connector
wIrIng dIagraM eBIke II l wItH nIBp and BCu
- 24 - eBike II, eBike II L, eBike II EL 2018112-069 Rev. F
