GE eBike BASIC - Mechanical Assembly; Controls and Indicators

- 116 - eBike II, eBike II L, eBike II EL 2018112-069 Rev. F
MeCHanICal asseMBly

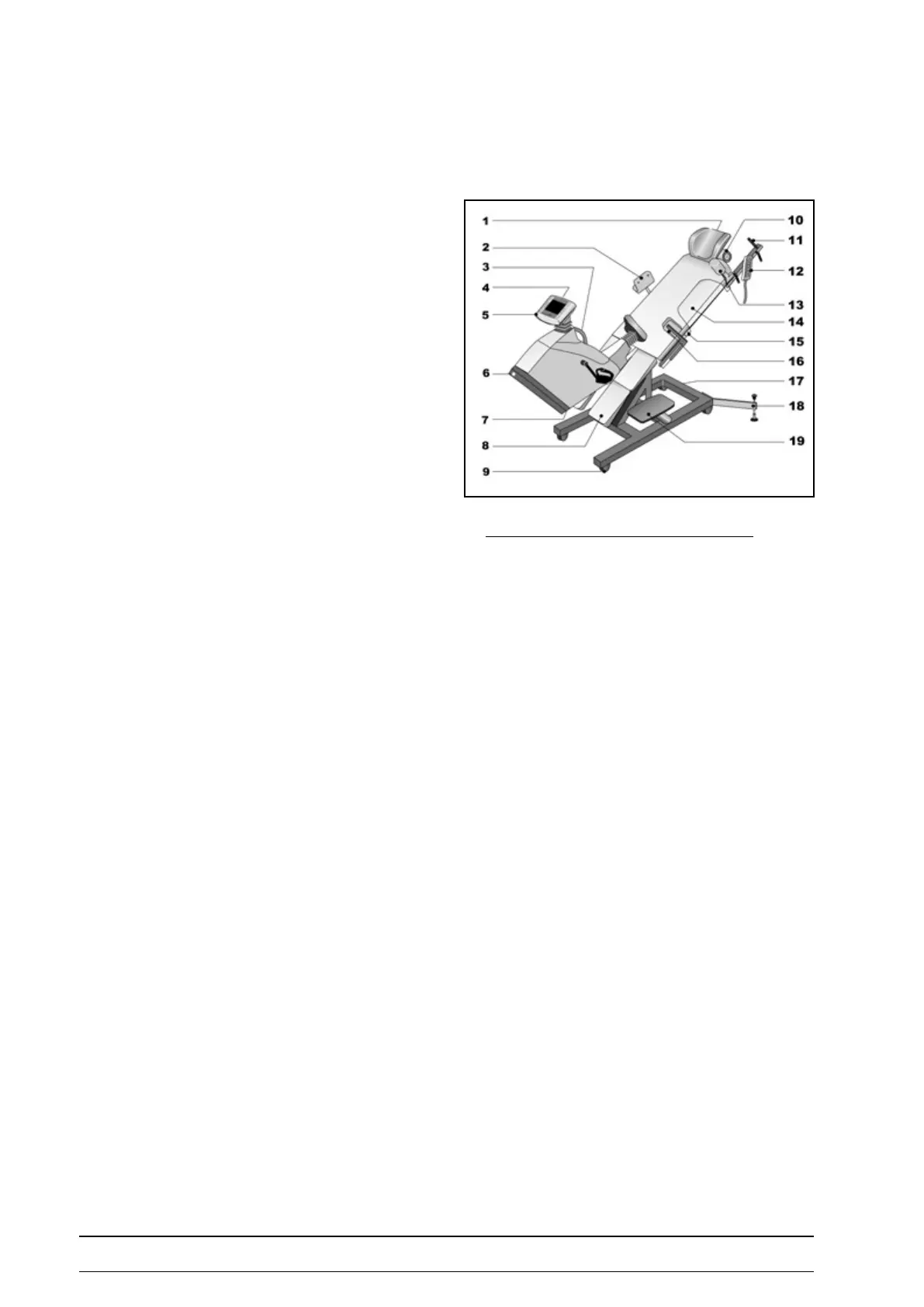

Controls and IndICators
1 Clamping lever for head rest adjustment
Release lever for upholstery drop section (14)
2 Arm rest for blood pressure measurement (right
or left; on systems with automatic blood pressure
measurement only)
3 Handgrip (mounting and dismounting aid)
4 Speed indication for patient
5 Control terminal
6 Power switch (green button)
7 Connectors for power cord and connection cables
8 Leg rest (option)
9 Castors, locking
10 Tissue roll
11 Upper handgrip, adjustable
12 Remote control for couch and saddle adjustment
13 Armpit support, adjustable
14 Drop section of upholstery
15 Connection for blood pressure cu on either side of
the couch (on systems with automatic blood pressure
measurement only)
16 Hip support, adjustable
17 Type plate
18 Outrigger
19 Footboard
ebiKe el - controlS, connectionS and indicatorS
