addItIonal Modules
Mae - saddleMotor / HeIgHt dIsplay pCB
Controlling of saddle motor (eBike II comfort) and display
of the actual saddle height is performed by the MAE board.
The MAE board has always to be placed at the end of the
eBike II bus system (1 x RJ-45 jack only).
The saddle motor itself is connected with a special cable to
the MAE board.
dre - external rpM dIsplay pCB
The eBike supine ergometers (eBike II 1000 and 1200) can
be equipped with an external control terminal.
In this case a special rpm display for patient information is
needed.
.
This electronic board has its own microprocessor and
communicates via the eBike bus (CAT-5 patch cable).
The rpm display unit has to be connected as the last unit in
the bus system (one RJ-45 connector only).

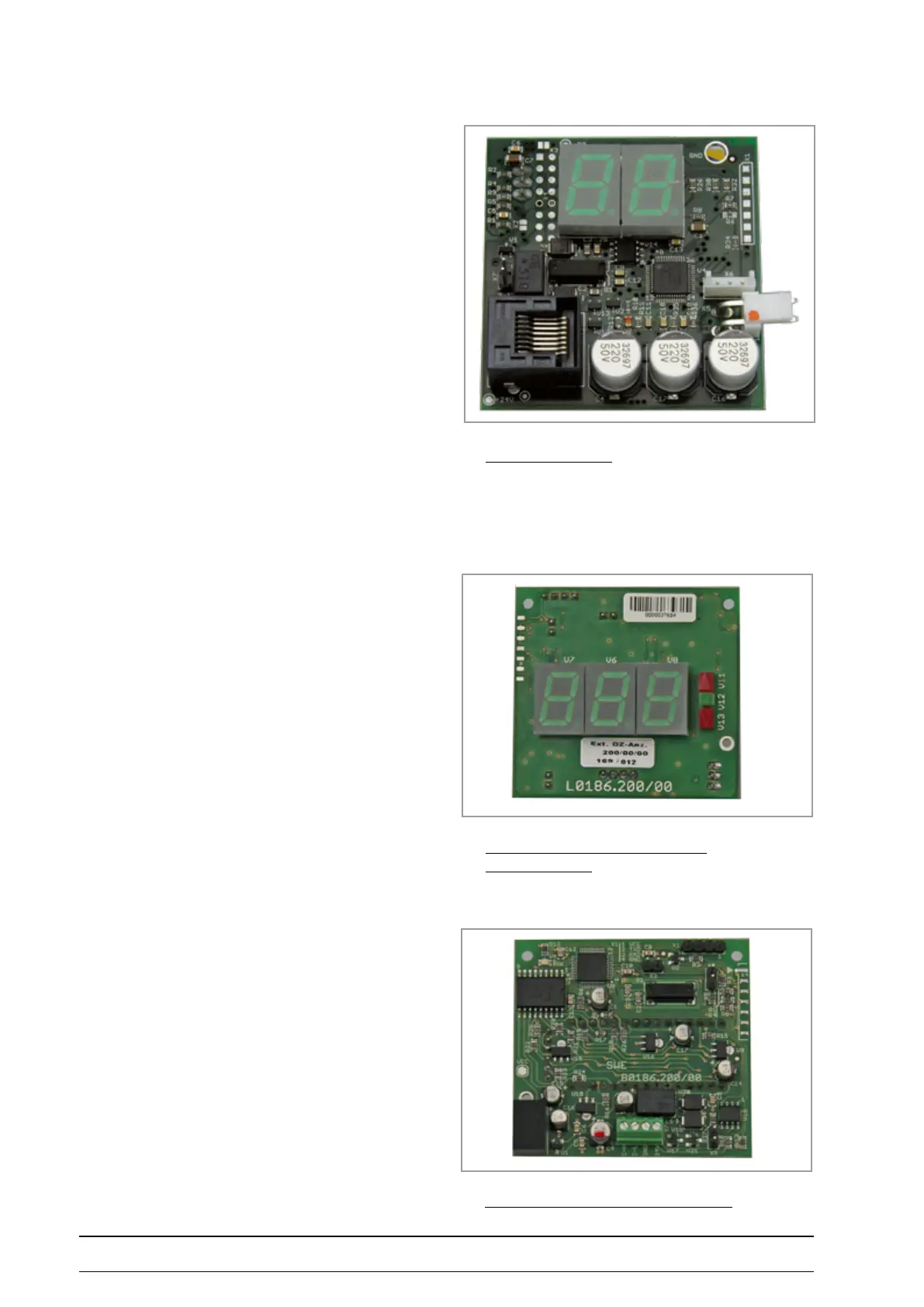

Mae board (top view)
dre - external rpM diSplay, front Side
(Supiine ergoMeter)
dre - external rpM diSplay, coMponent Side
