GE eBike BASIC - Exchange Motor Control Unit

- 124 - eBike II, eBike II L, eBike II EL 2018112-069 Rev. F
motor control
power cord
remote control
motor left side tilting
motor longitudinal tilting
saddle motor
on/o
switch
SUB-D
connector
1 1
2 2
for connector identication:
see „wiring diagrams“
3 3
exCHange Motor Control unIt

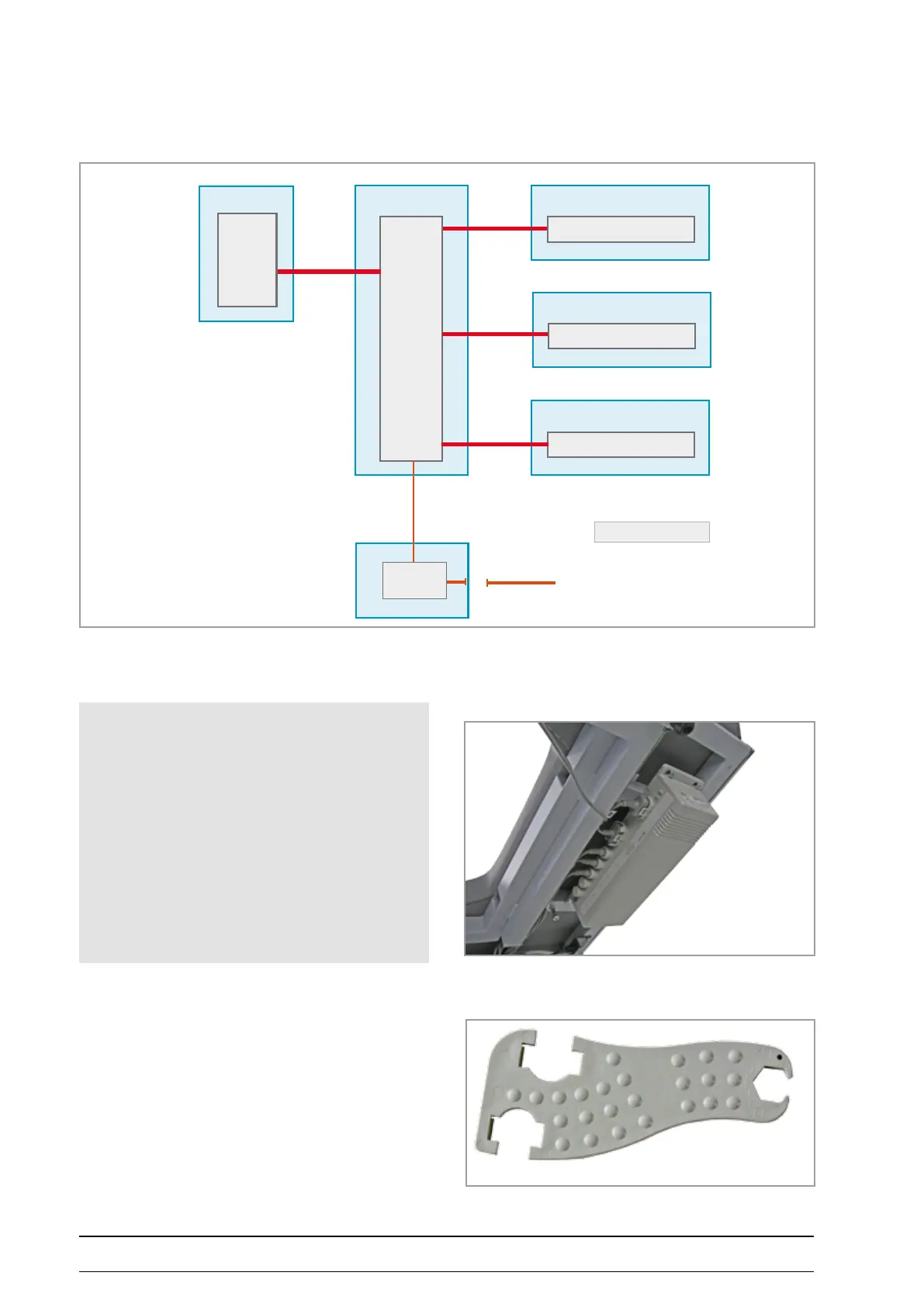

BloCk dIagraM Motor Control unIt
exCHangIng tHe Motor Control unIt
• Disconnect device from mains!
• Disconnect all cables prior the disassembling of the
unit, using a suitable fork wrench or the special tool.
Troubleshooting
• Before replacing the motor control unit make sure
that the motor is actually defective.
• For this check, use a new hand switch for eBike EL
and test the motorfunctions.
• If the control unit does not work, it is out of order
and must be replaced.
• If it works, the hand switch is defective.
