2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 41 -
load unIt
asseMBly
All eBike ergometers are equipped with an identical load
unit (brake unit) with an eddy current brake of 1000 Watt.
transMIssIon CHaIn exCHange
The new chain has to be prepared:
Bend both ends of the small xation spring towards the
axis by use of a at nose plier.

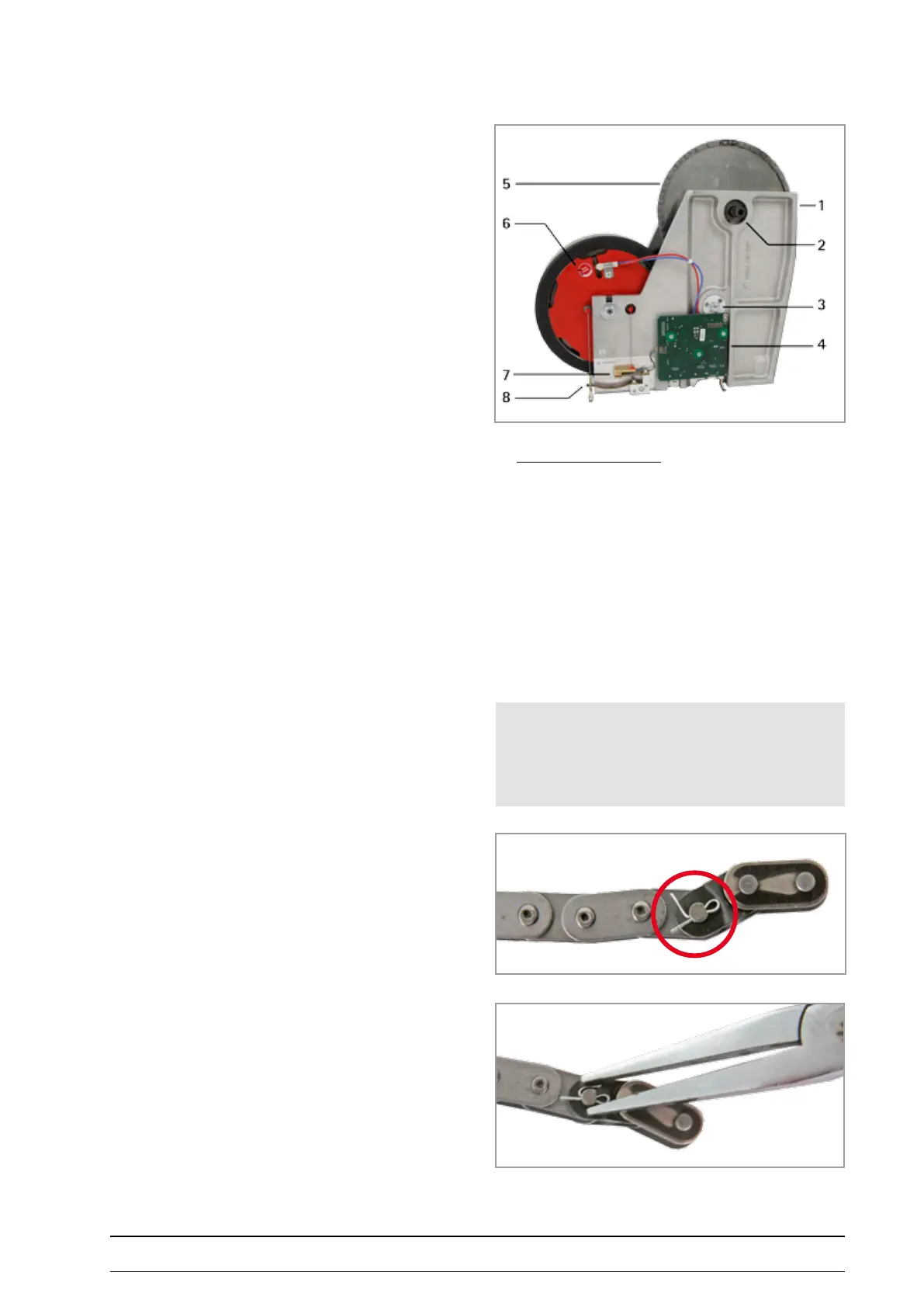

aSSeMbly of the load unit
1 Cast aluminium housing
2 Precision bearings
3 Rotational-speed sensor (magnetic)
4 LRE load regulation electronics
5 Sprocket with chain
6 Eddy current brake (1000 W )
7 Strain gauge unit (DMS)
8 Pretensioning spring
Hint
Exchange of the chain is possible without disassembling the
complete housing - only the top of the housing has to be lifted.
