GE eBike BASIC - Control Terminal; ZME - Main Electronic Board

2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 29 -

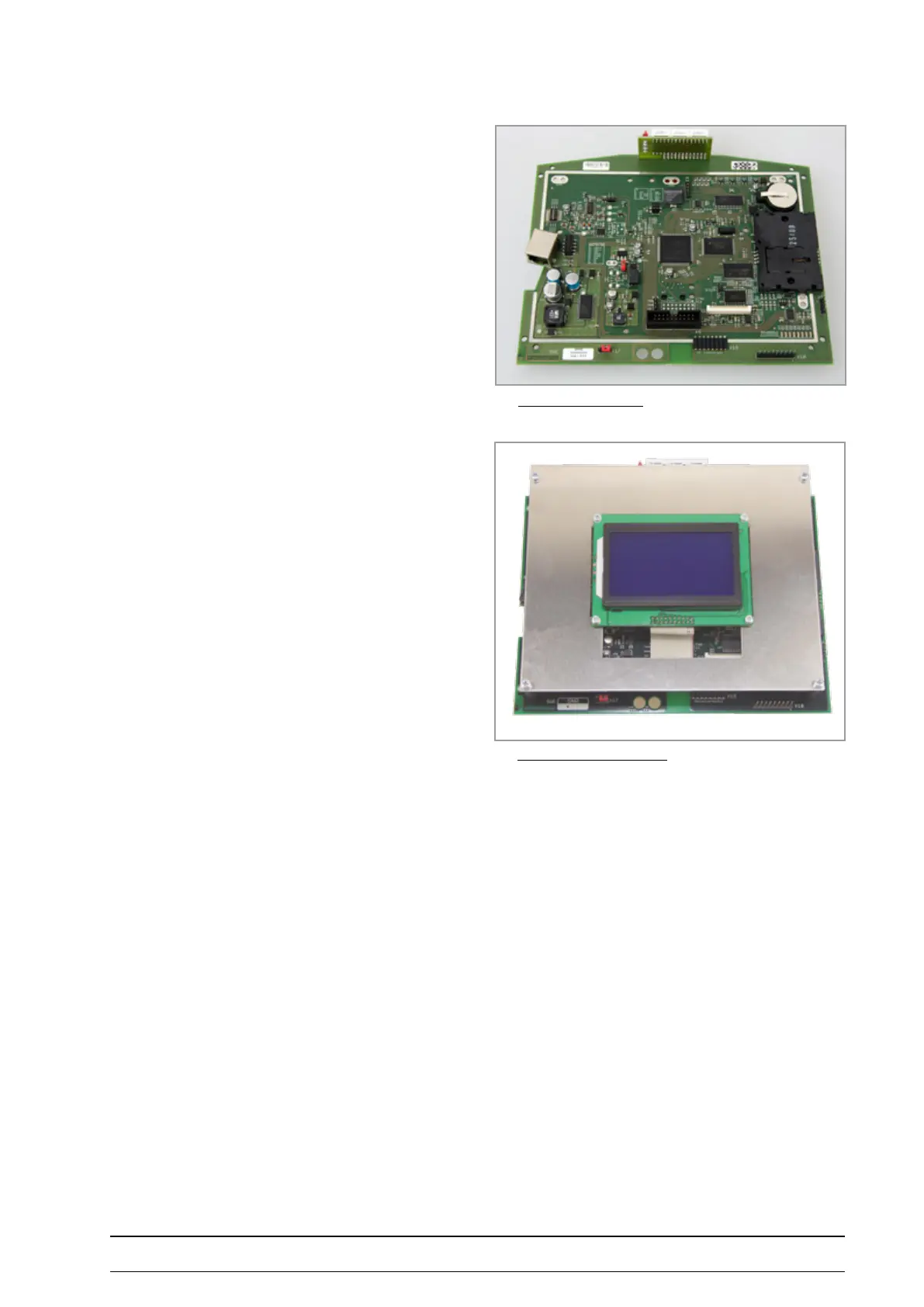

ZMe with diSplay Mounted
ZMe board (top view)
Control terMInal
ZMe - MaIn eleCtronIC Board
The ZME board represents the „mainboard“ of the eBike II
electronics.
The LC display and the foil keyboard are connected to this
board.
Remove the at cable of the display and loose the
4 screws xing the bearing metal plate.
The display unit can be removed.
