InterfaCe
Bke - InterfaCe pCB
The BKE board carries the external PC interfaces (RS-232
and USB).
Both interfaces are electrically isolated (optocouplers).
The BKE is the only board without a microprocessor.
Therefore this board is always connected directly to the
LRE board - the jack on LRE is labeled with „RS-232“.
usB InterfaCe
drIver InstallatIon (vIrtual CoMx)
Administrator rights are required to install the driver.
• Start PC and Monitor.
• Finish all running programs (- in background running
programs as well).
• Insert the USB driver CD (PN 2017911-130) into the
CD-ROM drive.
• Depending on the Windows
®
operating system used,
start the appropriate driver from the CD:
Windows 2000
®
:
CP210x_VCP_Win2K_XP_S2K3.exe
Windows XP
®
, Windows Vista
®
, Windows 7, Windows 8
®
:
CP210x_VCP_XP_S2K3_Vista_7.exe

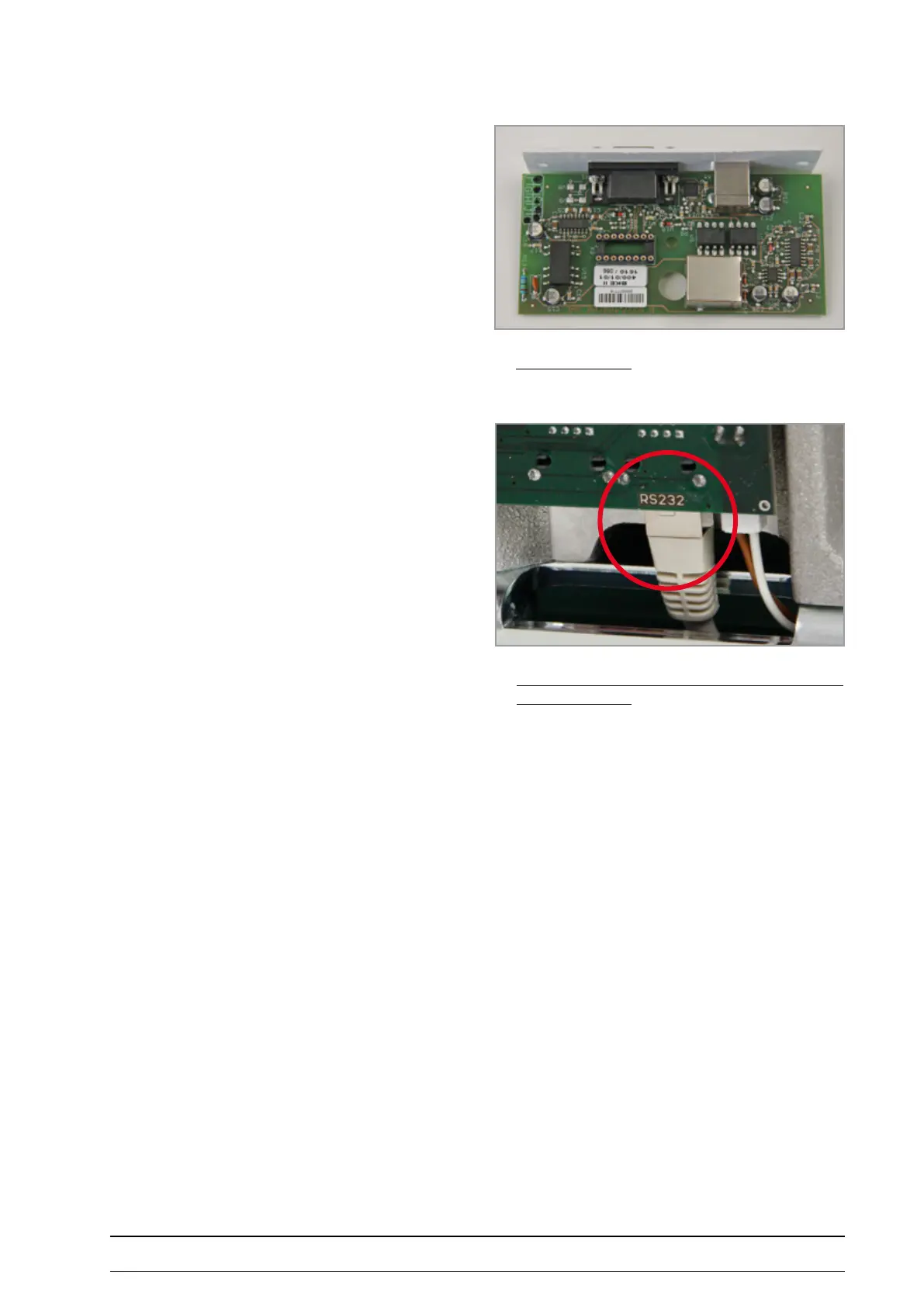

rJ-45 connector on thge lre board to connect with the
bKe interface board
bKe interface board
