GE eBike BASIC - Tools

- 12 - eBike II, eBike II L, eBike II EL 2018112-069 Rev. F
tools

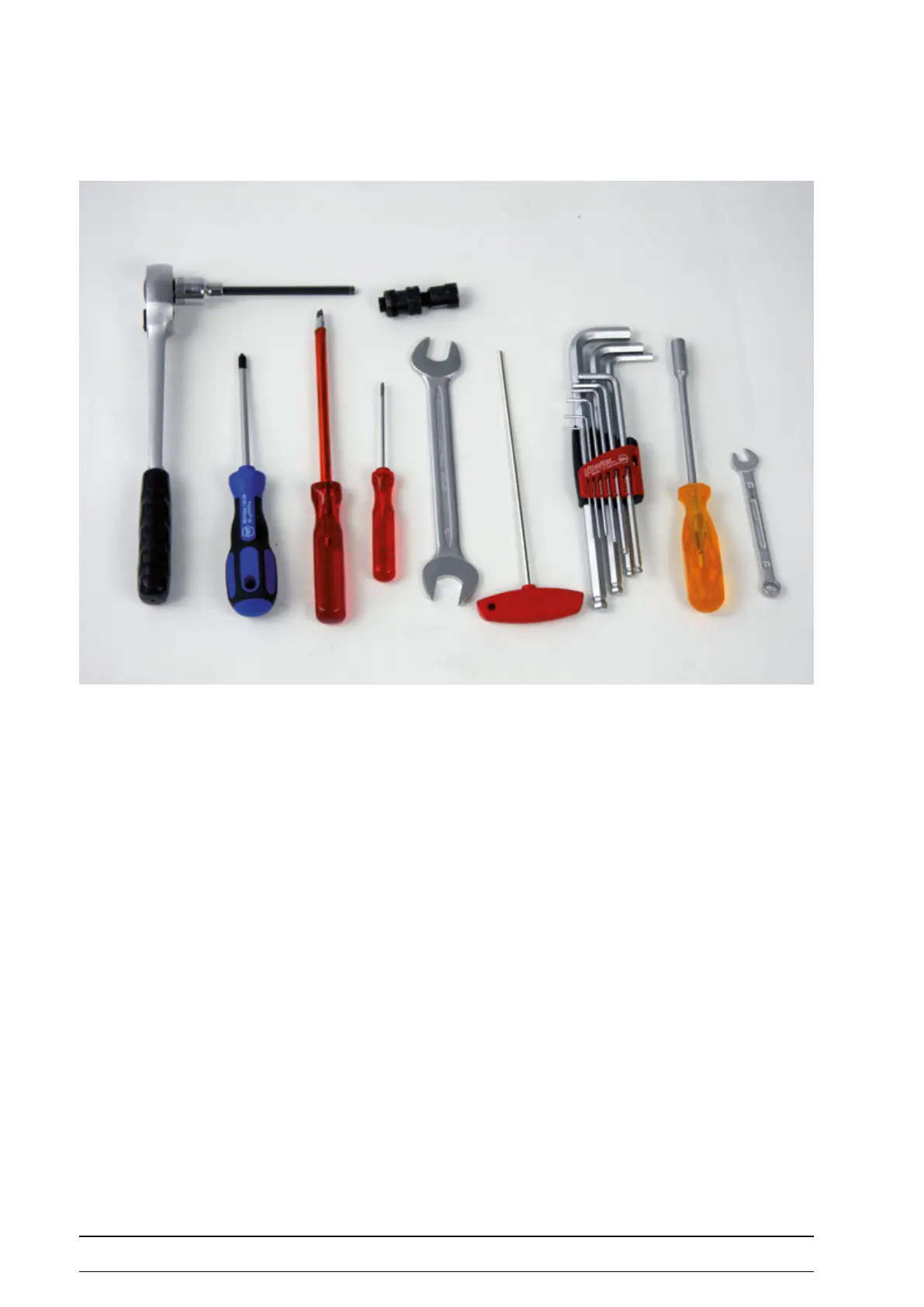

The following tools are recommended to disassemble the devices:
Flat bladed screwdrivers: Philips screwdrivers:
1 pc. 1.0 x 0.18 1 pc. PH 1
1 pc. 4.0 x 0.8 1 pc. PH 2
1 pc. 6.0 x 1.2 1 pc. PH 3
Fork wrenches: Allan keys:
1 pc. 5.5 mm 1 pc. 2.5 mm straight
2 pc. 7 mm 1 pc. 3 mm straight and elbow
1 pc. 13 mm 1 pc. 4 mm straight and elbow
1 pc. 17 mm 1 pc. 5 mm straight
1 pc. 19 mm 1 pc. 6 mm straight and elbow
Socket wrenches: Pliers
1 pc. 5.5 mm 1 pc. side cutter
1 pc. 13 mm 1 pc. flat nose pliers
1 pc. multigrip pliers
Special tools
1 pc. crank extractor (P/N 2005737-001)
2 pc. round pin, max. 3 mm, minimum length 15 mm
1 pc. ergometer eBike lift-up service tool (P/N 2018111-143)
1 pc. calibrated NIBP measure instrument
