GE eBike BASIC - Alignment Input: Analog Loadcontrol“





2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 55 -

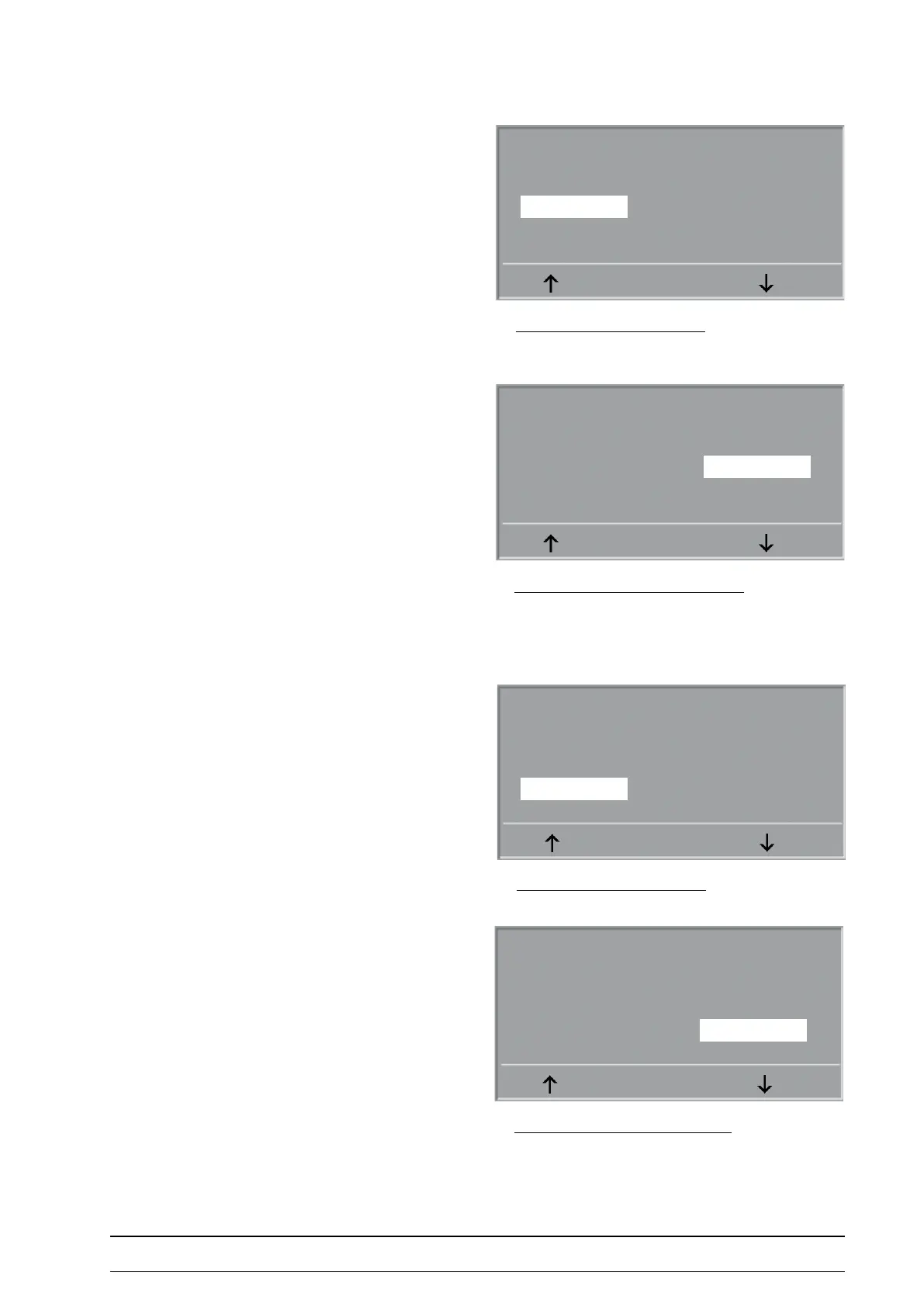

alignMent of analog input „load“
INPUT 1 Load
IN-Volt: 0.10 V
OFFSET 20 Watt
GAIN 300 Watt
ENTER
offSet alignMent of analog input „load“
INPUT 1 Load
IN-Volt: 0.10 V
OFFSET 20 Watt
GAIN 300 Watt
SET
alIgnMent „Input: analog loadControl“
IN-Volt: displays the voltage at the analog input
Set the ECG recorder output to a low load value
(e.g. 20 Watt).
The according voltage is displayed (IN-Volt).
Wait until the voltage has settled.
Select „OFFSET“ and conrm with ENTER.
By using the arrow keys set the load value to the ECG
recorder vaue (e.g. 20 Watt) and conrm with SET.
The setting is stored in the ergometer.
Set the ECG recorder output to a high load value
(e.g.300 Watt).
The according voltage is displayed (IN-Volt).
Wait until the voltage has settled.
Select „GAIN“ and conrm with ENTER.
By using the arrow keys set the load value to the ECG
recorder vaue (e.g. 300 Watt) and conrm with SET.
The setting is stored in the ergometer.
Setting range:
OFFSET: range from 20 to 1000 Watt in 10 Watt steps
GAIN: range from 20 to 1000 Watt in 10 Watt steps
alignMent of analog input „load“
INPUT 1 Load
IN-Volt: 3.05 V
OFFSET 20 Watt
GAIN 300 Watt
ENTER
gain alignMent of analog input „load“
INPUT 1 Load
IN-Volt: 3.05 V
OFFSET 20 Watt
GAIN 300 Watt
SET
