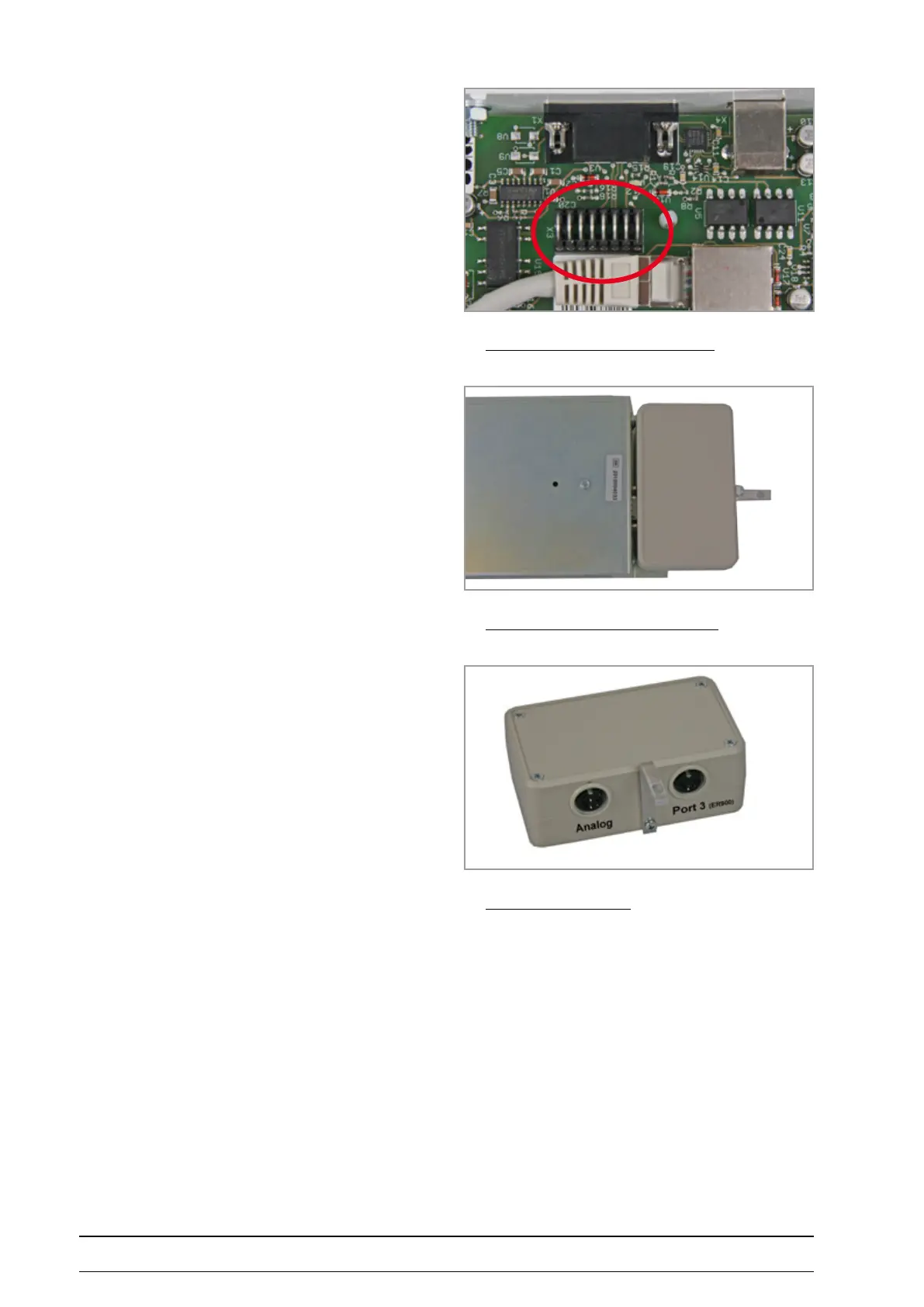

bKe-pcb with JuMper adapter inStalled
• Insert the jumper adapter into the corresponding
socket, to close all necessary connections.
• Close the housing and x to the ergometer chassis
again.
The COM module is plugged onto the 9 pole DSUB
connector (PORT 1) and screwed to the ergometer chassis.
The analog adapter has to be activated as follows:
• In Service Menu go to System Conguration and set
Analog Interface to I.
• Then power OFF/ON the eBike.
• Go to Settings, select ECG Type, enter password 003
and select Analog / Digital
Insert the appropriate digital and analog connecting cables
and x the cables to the chassis using a strain relief..
coM Module Mounted on 9 pole dSub
coM Module connectorS
