5-14 Section 5-4 - Block Diagrams and Theory
5-4-3 CPU/Back End Processor (For BEP4 for BT09 or later)
5-4-3-1 BEP4 Signal Connections

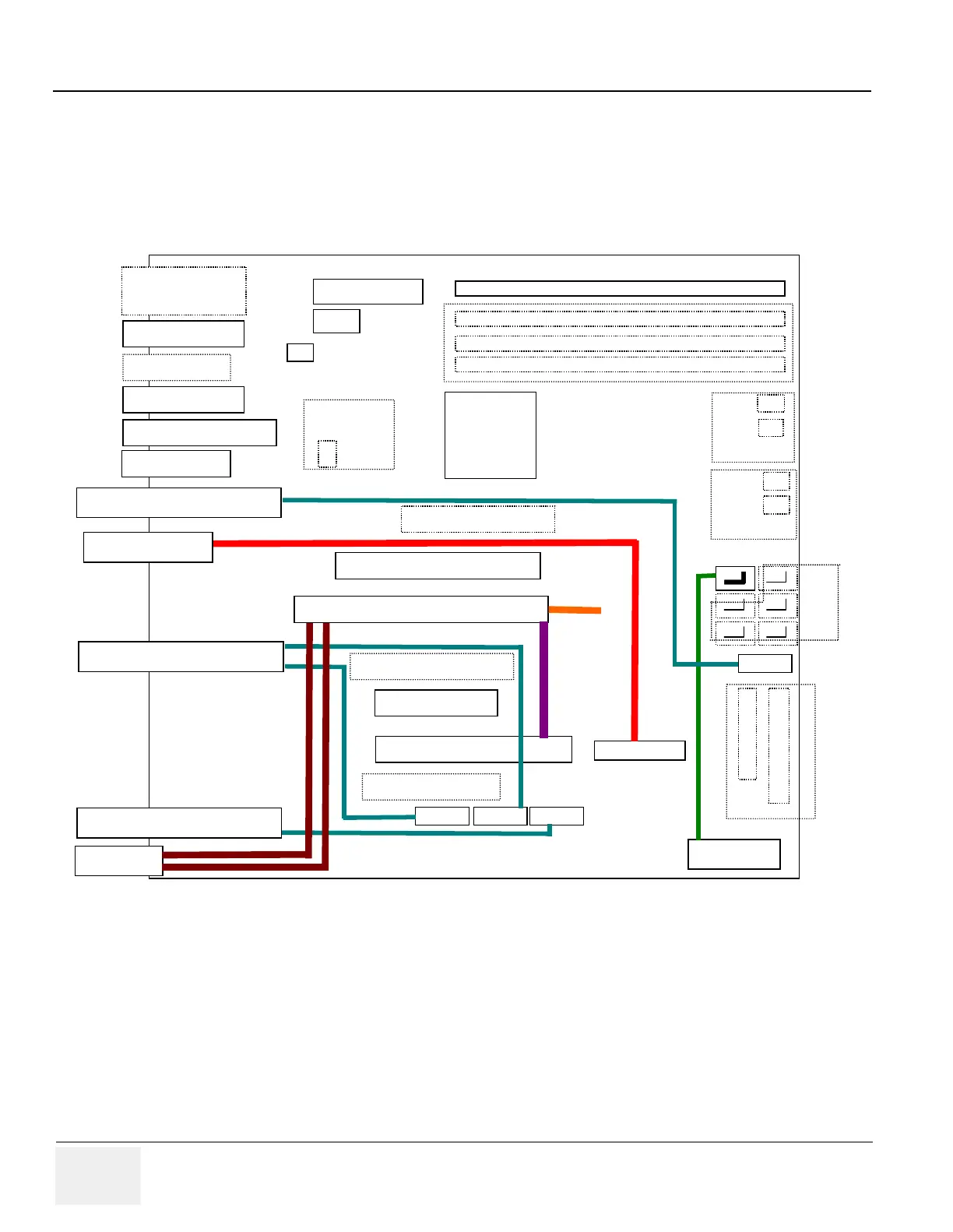

Figure 5-37 BEP4 Signal Cable Connection
CPU
PW2
Keyboard, Mouse
( Not Used )
VGA ( Not Used )
USB Ports (2 ports)
MIC, Line in/out
OPMA Conn ( Not Used )
PCI-Express slot - Graphics Card
PCI Slot - PCIDGVIC2
PCI-Express slot (Not Used )
PCI Slot - FALCON
PCI Slot - PC2IP3
PCI Slot ( Not Used )
FDD / IDE
( Not Used )
USB 4
USB5 USB6 USB3
CPU Fan
Fan2
( Not Used )
Fan 6
Fan 4
( Not Used )
SATA
LAN (one of three is used)
PW1
Memory DIMM1
DIMM2
DIMM3
DIMM4
Not Used
Not Used
SATA HDD
Bulk Head
Extended USB Ports (2 ports)
Pin Header
( Power SW,
Reset SW,
HDD LED,
Power LED )
Connector Panel
ECG unit
[ Signal Cable connection in BECOMP4 for L7 ]
Extended USB Ports (2 ports)
Extended USB Ports (4 ports)
USB Ports (2 ports)
Fan 5
Fan 3
( Not Used )
