GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
4-14 Section 4-2 - General Procedure
4-2-6-5 Archiving Presets to an CD-R/DVD-R Disk
1.) Insert an empty (blank) formatted CD-R/DVD-R disk into the CD-R/DVD-R device.
2.) Access to the Utility Menu on the Touch Panel, and select System>Backup/Restore. The Backup
screen will be shown on the monitor.
3.) Select the item to back up either from Resource Files.
4.) Select the media to locate the items.
5.) Click on Backup. The backup status for each item is displayed on the Result column.
6.) Make sure “Finished OK” is displayed on the Result column.

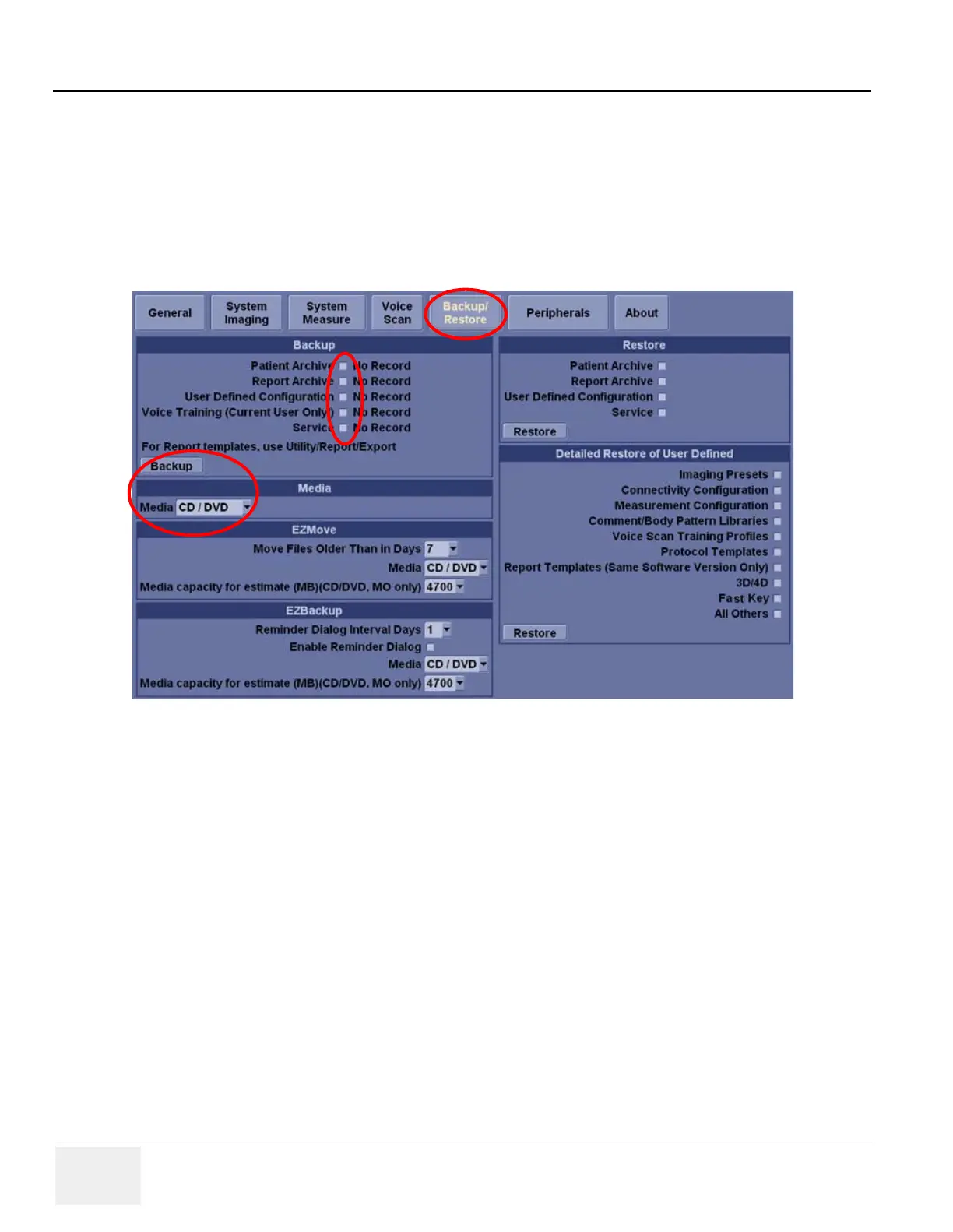

Figure 4-17 Clicking on Backup
