GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
Section 6-6 - BW Printer Setting / Adjustment 6-27
Section 6-6
BW Printer Setting / Adjustment
6-6-1 Parameters for UP-D897
1.) When system started, Go to Utility > System >Peripherals, then hit Printers button in the Setup
group.
2.) Click SONY UP-D897 in the Printer List, then right click and select "Properties".
3.) Select "General" tab, then hit "Printing Preferences ..."
4.) Select "Layout" tab, then ...
-Set "1920x1280" into "Paper"
-Check off into "Enlarge to Paper"
-Set "Bilinear" into "Interpolation Method"
-Set "Landscape" into "Orientation"

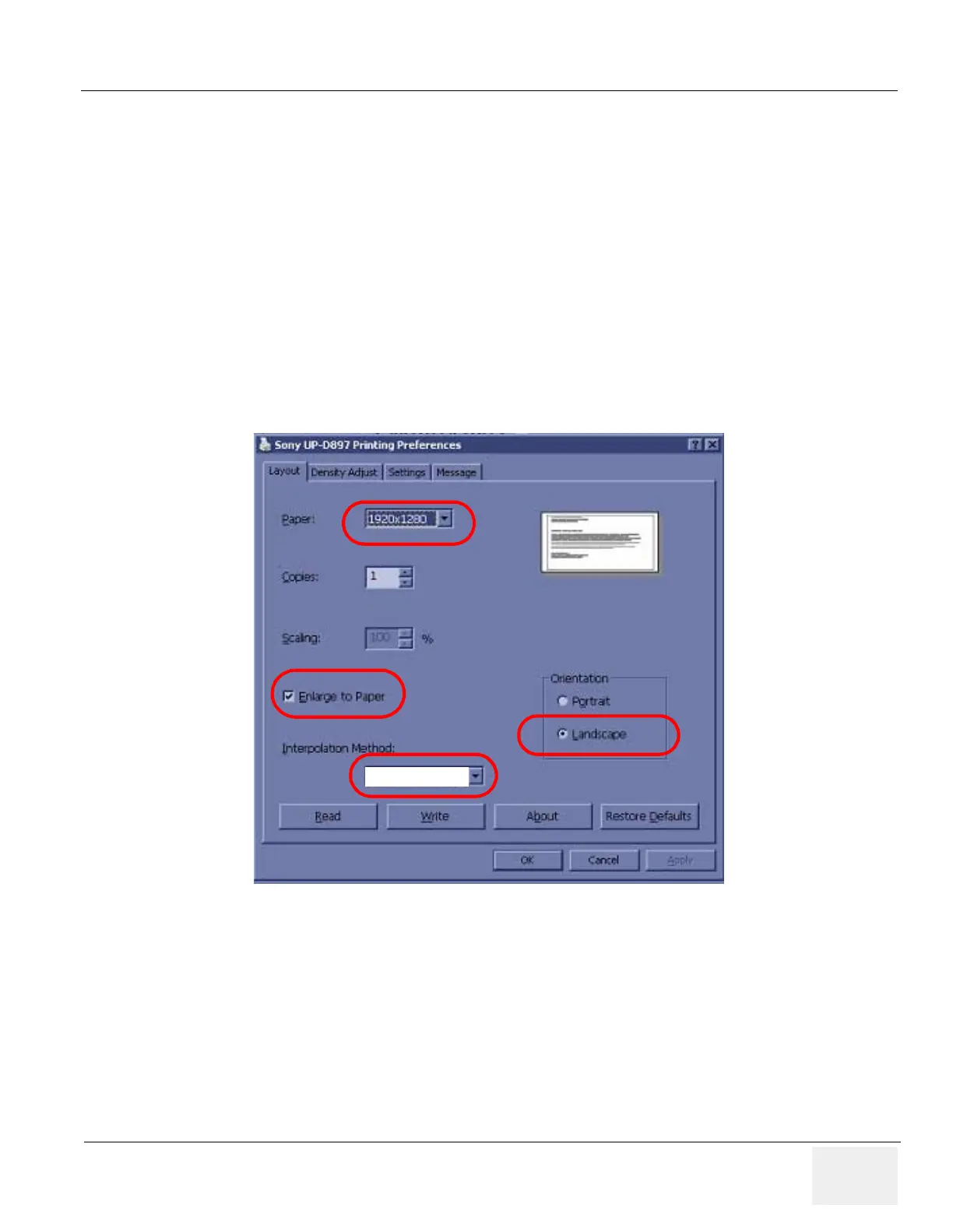

Figure 6-35 Printing Preferences
Bilinear
To Next Page
