GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
Section 6-3 - Caster Brake/Swivel Function Adjustments 6-7
6-3-1 Brake Function Adjustment (cont’d)
4.) Adjuster of the rear caster is also located on the caster linkage joint as shown.
5.) Turn the adjuster so that the caster lock lever is in the ceter position, as same as the front caster,
and the link is securely in place.

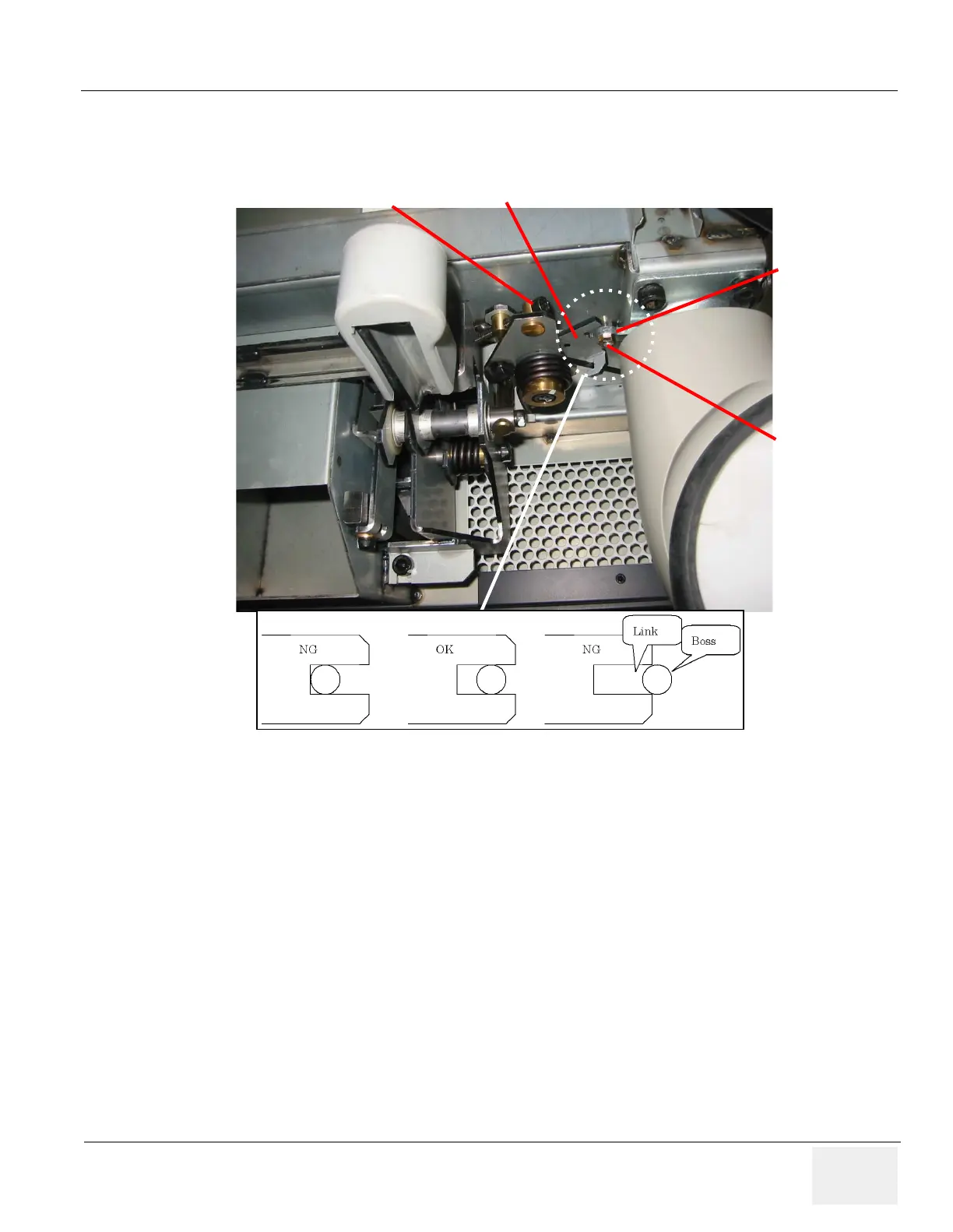

Figure 6-7 Rear Caster Adjuster Location
Adjuster Nut
Link
Rear Caster
Lock Arm
Boss
To Next Page
