6-20 Section 6-5 - Monitor and LCD Adjustments
6-5-5-2 For Technart (cont’d)
5.) Display the LCD monitor menu and visually check if auto adjustment succeeds.
- If no character blurring exits, auto adjustment succeeds. Go to 6-5-5-2-3 Completing
adjustment.
- If character blurring exits, auto adjustment fails. Perform 6-5-5-2-2 Manual Deblurring (For
Technart ONLY).

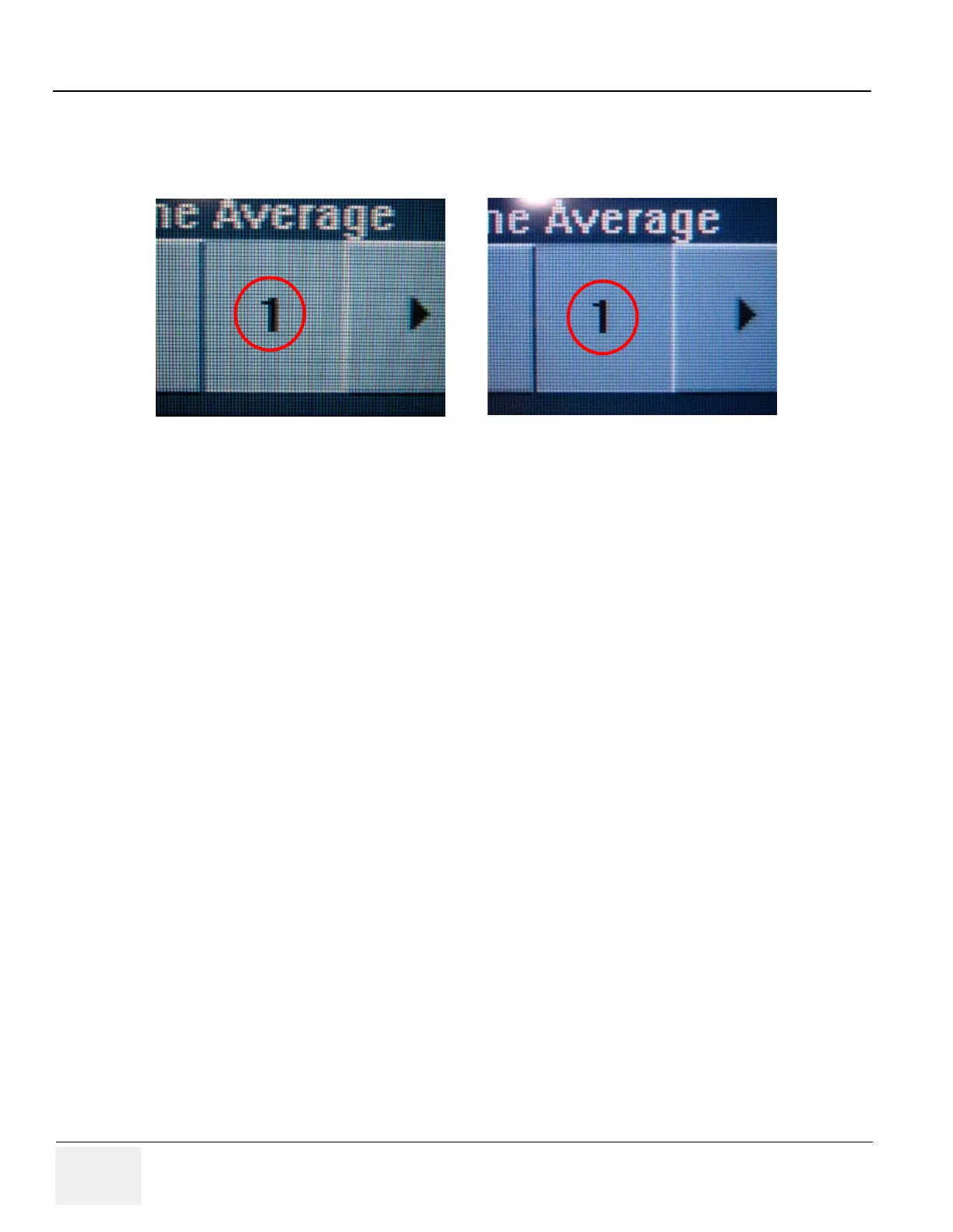

Figure 6-25 Blurring/No Blurring
Blurring at the right side of the character
Example: Blurring
Example: No blurring
