GE LOGIQ 7 Service Manual

GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
Section 9-3 - Renewal Parts List For BT09 9-3
9-3-2 BT09 Parts
The following parts are new for BT09 but other parts are common with BT06. For Common Parts not
listed here, refer to Section 9-4 - Renewal Parts List For R7.5.x.

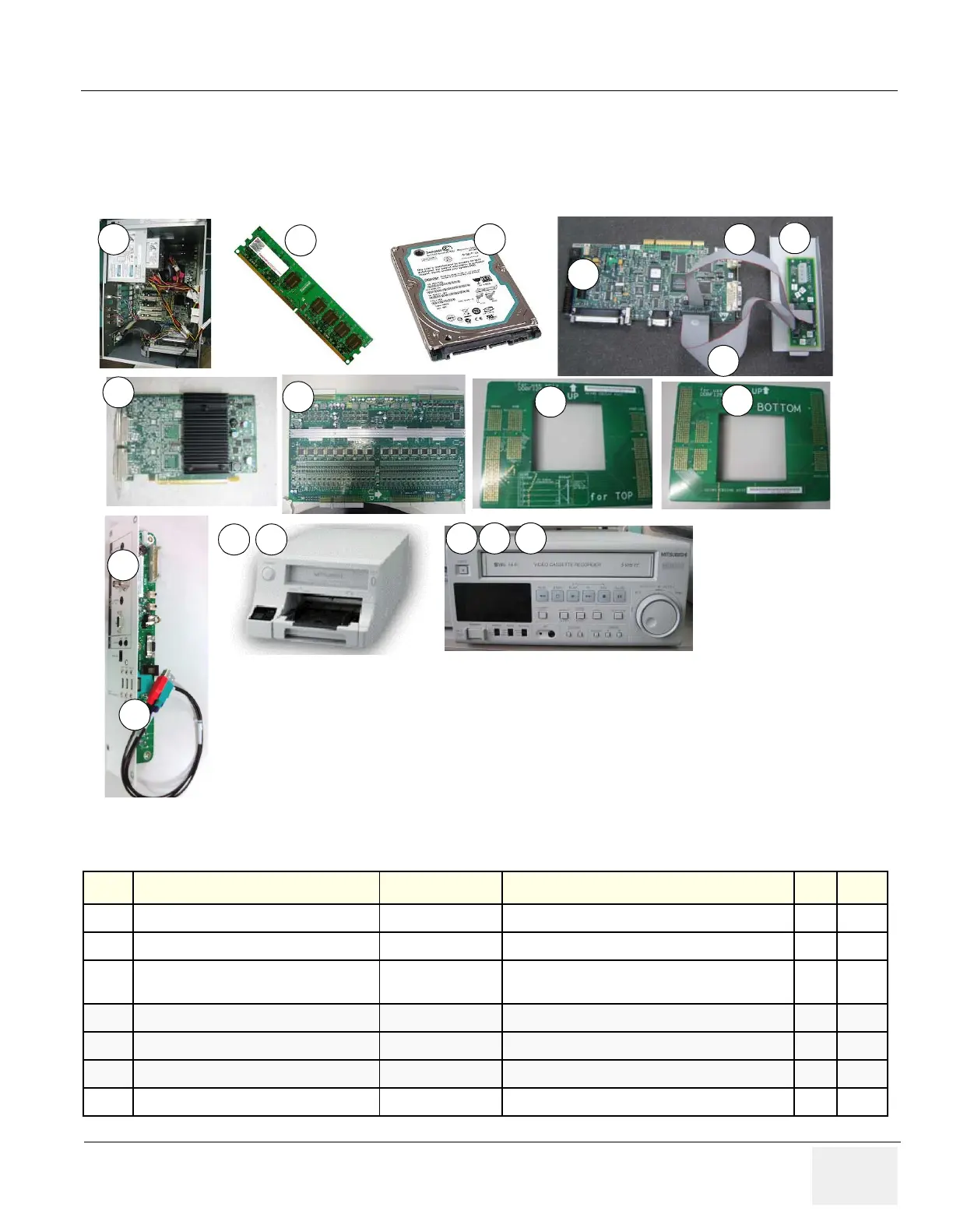

Figure 9-1 BT09 Parts
Table 9-3 BT09 Parts
Item Part Name Part Number Description Qty FRU
1 SVP-BECOMP4-L7 5308149 Device cards and UPS batteries not included 1 1
2 DDR2 MEMORY4 1GB 5306528 DDR-2 667 (1GBx1) 1 1
3 SATA HDD 160GB 5306526
Serial ATA interface (both Signal and Power
connectors are SATA)
11
4 PCI Express Graphic board 5306525 Matrox P690 PCI-Express Slot 1 1
- SVP BECOMP4 PARTS 5316350 Small parts collection for BEP4 1 1
5 PCI-DGVIC2 Assembly 5301220-2 Video/Signal Interface 1 1
6 BulkHead for L7 and LS6 5257226 3 connectors in sheet metal 1 1
2
3
5
4
11
12
13
9
14
16
10
1 7
8
6
15
17 18
1
