9-24 Section 9-8 - Renewal Parts List For BT06-2 CONSIP (SOI)
9-8-2 BT06-2 CONSIP Parts
The following parts are unique to BT06-2 CONSIP, but other parts are common with BT06-2. Parts not
listed here are common with BT06-2. For BT06-2 CONSIP Parts, refer to Section 9-7 - Renewal Parts
List For BT06-2 or later and Section 9-9 - Renewal Parts List For BT04 and BT06.
NOTE: Software R6.3.x application with base image is required to support this CONSIP Console.
NOTE: For BECOMP3 replacement, the following parts must be reused:
• Extended Memory
•PC2IP3
•UPS
•DGVIC
•Video Card
- G550 for CRT
- G450 for LCD
- SONO64 for LCD
• Video Capture Board
• HDD

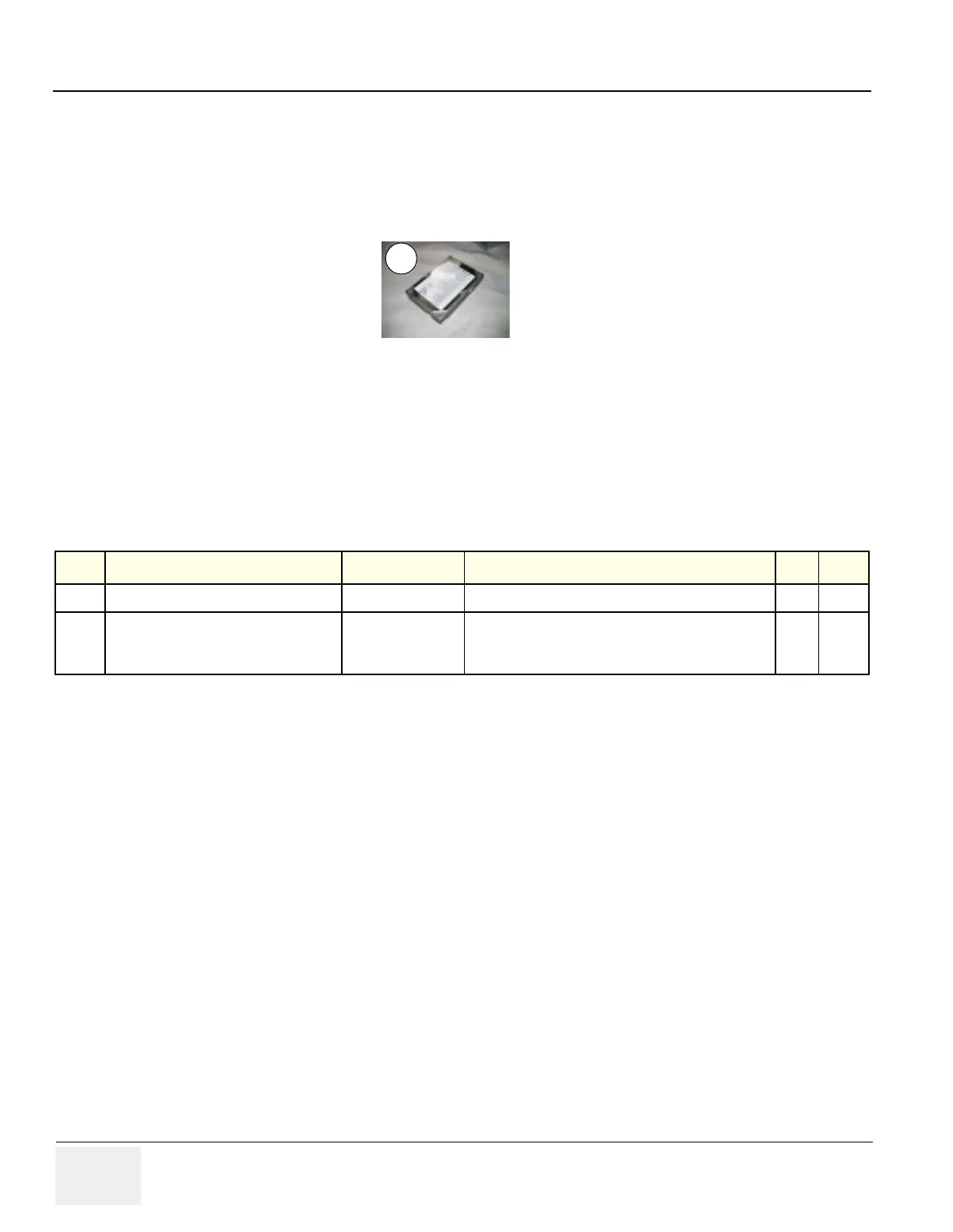

Figure 9-4 BT06-2 CONSIP Parts
Table 9-19 Monitor
Item Part Name Part Number Description Qty FRU
1 HDD for L7 CONSIP 5179643 HDD 160GB only for CONSIP Console 1 1
2 BECOMPSW3SVC 5119906-4
This BECOMP part contains 80GB HDD. FE must
either reuse HDD, or order 160GB HDD (5179643) for
use with this part.
11
1
