DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
9-20 Section 9-7 - Renewal Parts List For BT06-2 or later
9-7-4 BT06-2 Parts
The following parts are new for BT06-2, but other parts are common with BT06. Parts not listed here
are common with BT06. For BT06-2 Parts, refer to Section 9-9 - Renewal Parts List For BT04 and BT06.
NOTE: Software R6.2.x and later is required to support the hardware listed above.
NOTE: For BECOMP3 replacement, the following parts must be reused:
• Extended Memory
•PC2IP3
•UPS
•DGVIC

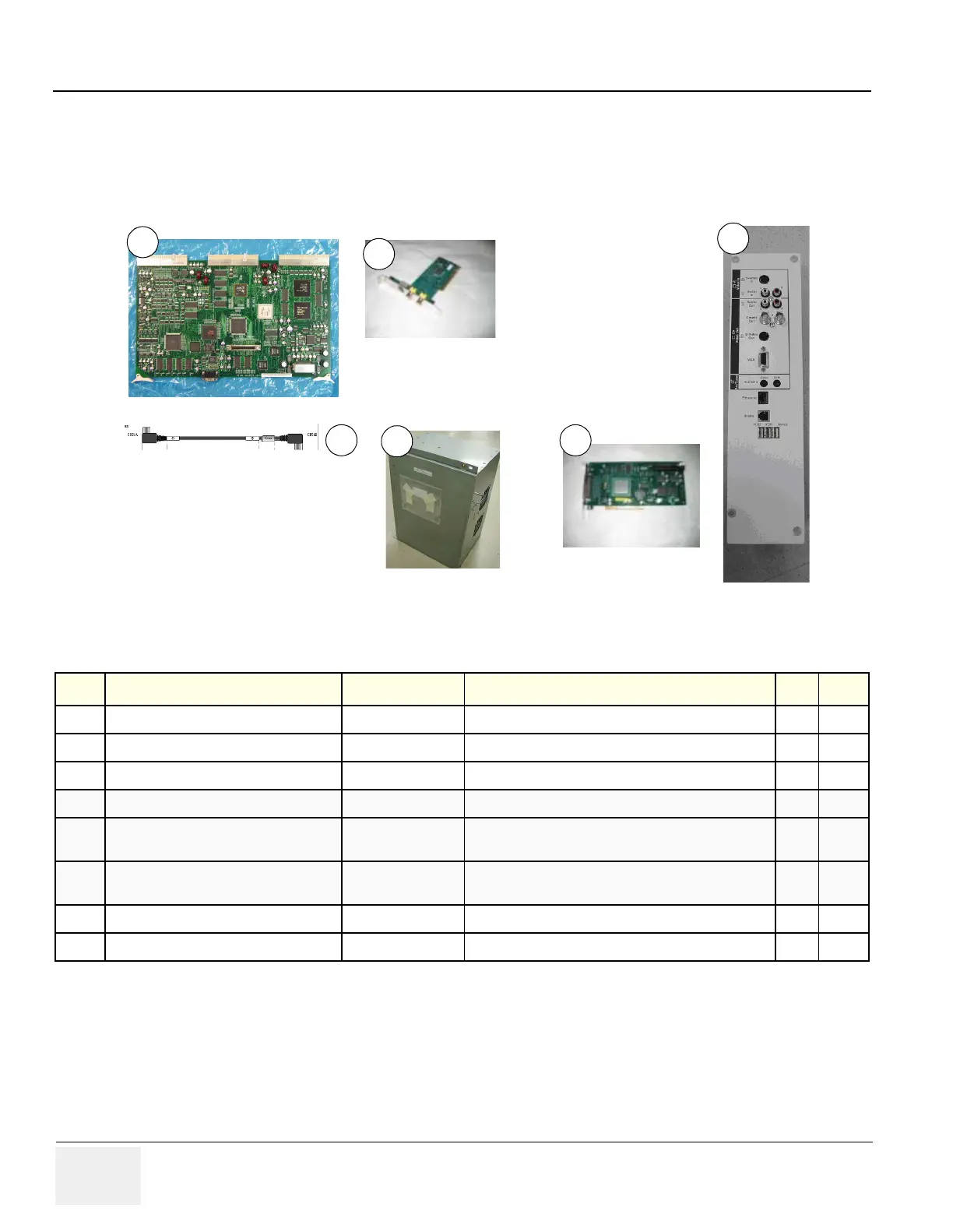

Figure 9-3 BT06-2 Parts
Table 9-17 Monitor
Item Part Name Part Number Description Qty FRU
1 MDBRG2S 5145999 1 1
2 Capture Board 5147460 1 1
3 Rear Panel 5174604 1 1
4 YC Cable (S-Video) 5169391 1 1
5 BECOMP3
5119906-3 or
5119906-4
Refer to 9-9-13 - HDD and Battery. 1 1
- PC2IP3 FC200755
Obsolete. Acceptable to use the part if remained in
stock.
- -
6 PC2IP3 FD200033 New PC2IP3. Fully compatible to FC200755. 1 1
7 4D Motor Controller Option 1 1
2
5
64
1
3
