Section 6-8 - Jumper and Dip Switch Setting 6-39
6-8-2 Jumper Setting
6-8-2-1 HDD
Always set the jumper between MASTER pins.
6-8-3 Printer Dip Switch Setting
6-8-3-1 Mitsubishi MD-3000 VCR Dip Switch Setting
This section describes Mitsubishi MD-3000 VCR communication setting. Field Service Engineer (FSE)
is not allowed to modify dip switch setting. Following setting is documented for purpose of
troubleshooting by FSE.

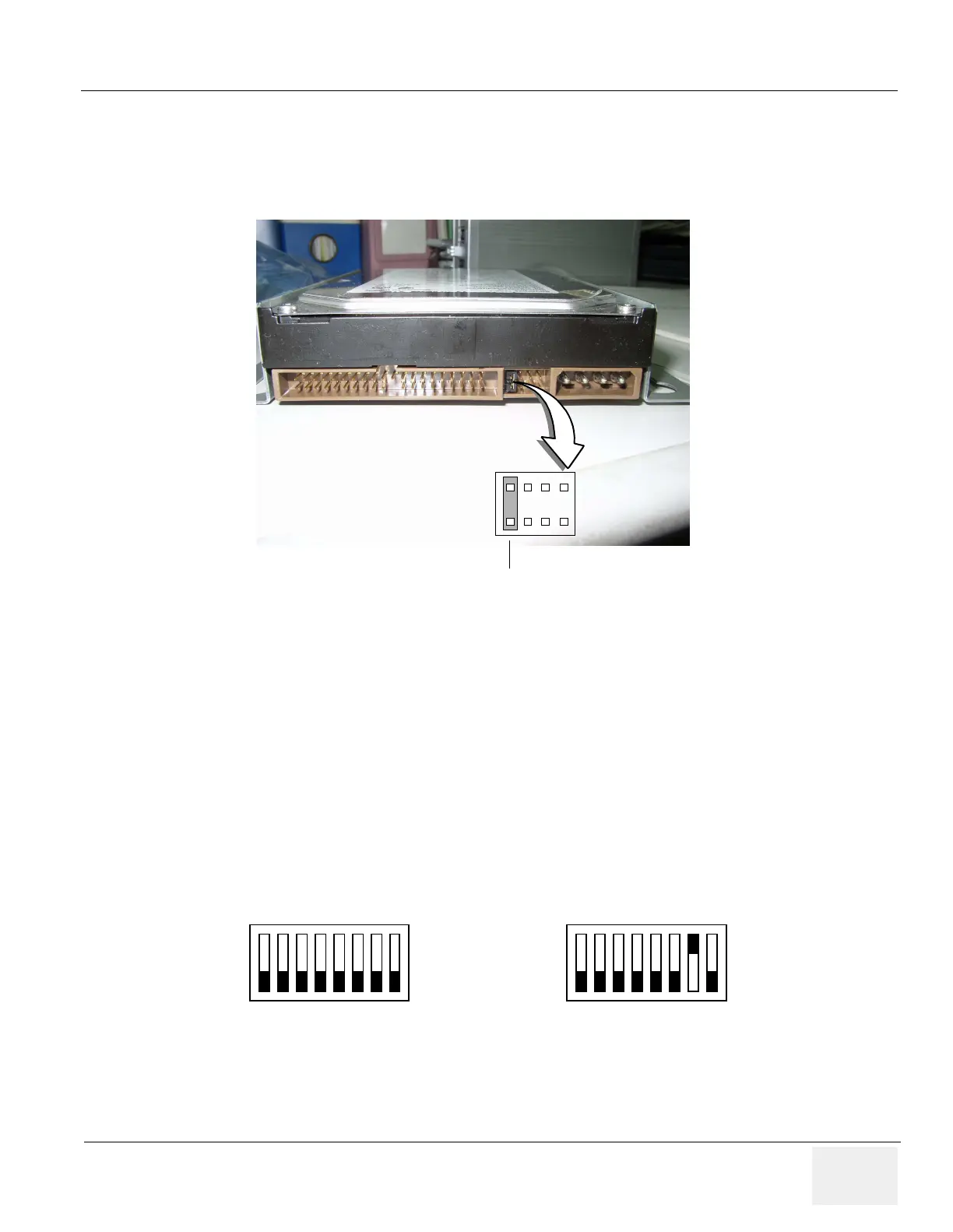

Figure 6-50 HDD Jumper
Figure 6-51 MD-3000 Dip Switch
Master
1 2 3 4 5 6 7 8
ON
OFF
SW5001
1 2 3 4 5 6 7 8
ON
OFF
SW5001
Serial Communicatiton USB Communicatiton
To Next Page
