DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
9-62 Section 9-10 - Renewal Parts List for BT03 or lower
9-10-3 Casters and Pedals

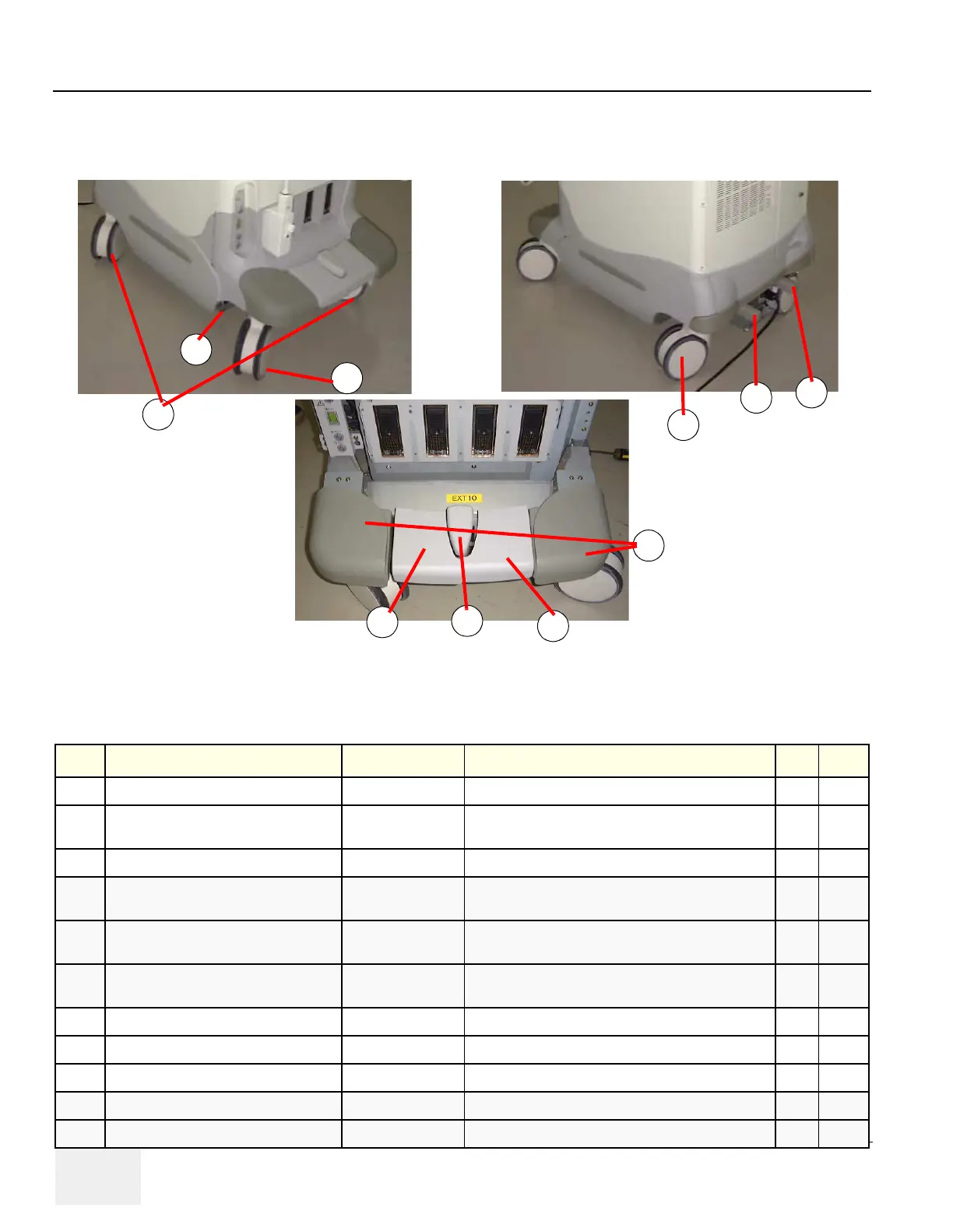

Figure 9-19 Casters and Pedals
Table 9-42 Casters and Pedals
Item Part Name Part Number Description Qty FRU
201 CASTER LINK ASSY 2304800 entire brake mechanism 1 2
- CASTER SWIVEL
2379694-2 or
2307311
Obsolete. Do not use these parts. - -
202 CASTER SWIVEL 5233773 swivel, rear right. Improved rubber type (anti-stain). 1 2
- CASTER LOCK
2379695 or
2307312
Obsolete. Do not use these parts. - -
203 CASTER LOCK 5233774
lock, front right and rear left. Improved rubber type
(anti-stain).
2 2
- CASTER FREE
2379693-2 or
2307301
Obsolete. Do not use these parts. - -
204 CASTER FREE 5233772 free, front left. Improved rubber type (anti-stain). 1 2
205 FRONT-BUMPER-ASSY 2315419 front bumper, left and right 1 2
207 PEDAL-R 2291870 rubber pedal for brake caster lock 1 2
208 PEDAL-L 2291869 rubber pedal for brake caster lock 1 2
209 PEDAL CENTER 2291871 rubber pedal for brake caster lock 1 2
