DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
Section 1-2 - Important Conventions 1-17
1-3-7 Label Locations (For BT03 or lower) (cont’d)
1.) ETL Label
2.) Identification and Rating Plate
3.) SDA Label (For China ONLY)

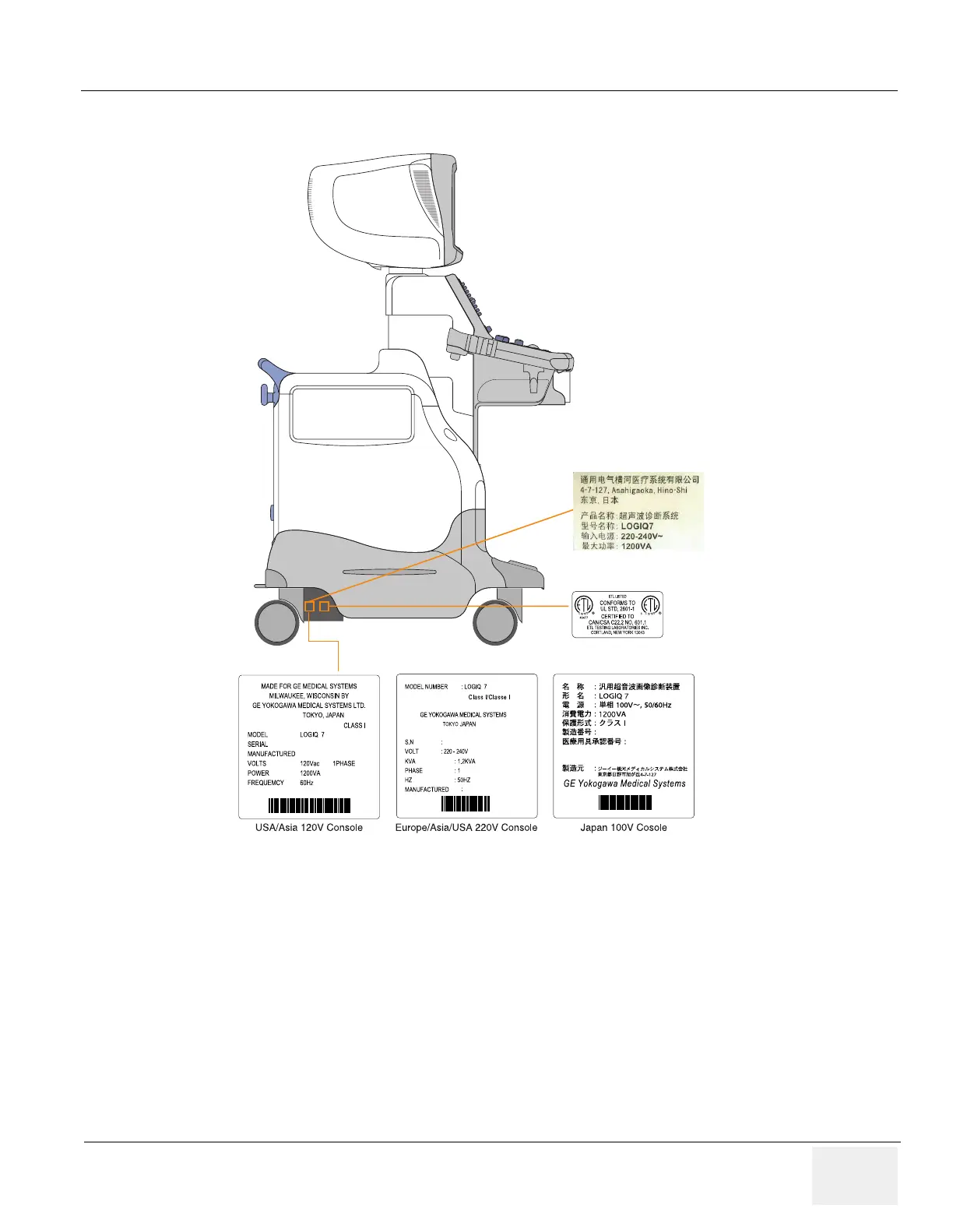

Figure 1-5 OUTSIDE MARKINGS OF LOGIQ™ 7 For BT03
or lower (Left Side)
~
China220VConsole
(RightSide)
2.
1.
3.
