Simon Security System
10

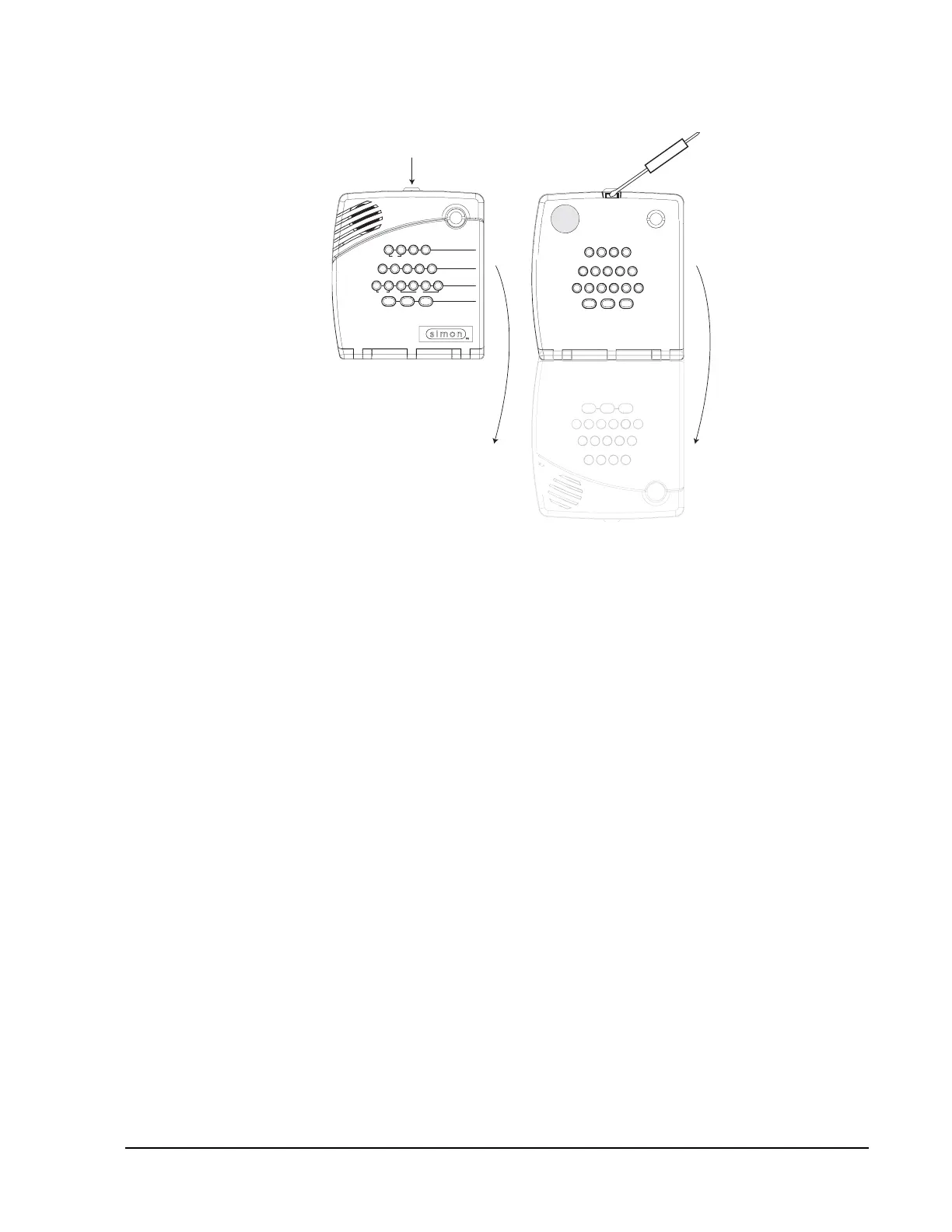

Figure 2. Opening the Panel Cover and Chassis
Mounting the Panel
The panel must be securely mounted on a wall or on the optional Tabletop Base.
Wall Mounted Panel
The panel must be securely mounted to the wall using the 4 screws supplied to prevent
accidental movement and to protect the consumer from the system wiring and termi-
nals.
Note
When choosing the AC out-
let location for the AC power
transformer, make sure the
outlet is not controlled by a
switch or that it is not part of
a ground fault interrupt cir-
cuit (GFIC).
1. Choose a panel location.
2. Run all necessary power, phone, siren, and hardwire contact wires to the desired
panel location.
3. Refer to Figure 3 (Wall Mount) for mounting hole locations.
4. Hold the panel against the wall and mark the mounting hole locations with a pencil.
5. Insert wall anchors into holes where studs are not present.
6. Install all screws and tighten gently.
Tabletop Mounted Panel
Note
A tabletop mounted applica-
tion is only recommended
when the panel requires the
power and telephone cable
as the only hardwire connec-
tions. Use the wall mounted
position in all other applica-
tions.
The tabletop base must be fitted to the back of the panel if the panel is to be used on a
table or bench.
1. Select a suitable location near power and phone line.
2. Run all necessary wires from the panel through the openings in the tabletop base.
3. Refer to Figure 3 (Tabletop Mount) for mounting hole locations.
4. Place the panel back on the tabletop base until the top and bottom panel mounting
holes line up with the mounting holes on the tabletop base.
5. Secure the panel to the tabletop base with the screws provided.
6. Ensure the cables are neat and will not create a tripping hazard.
T e s t W e e k l y
C O D E
S t a t u s
S y s t e m
9 / 0
W i n d o w s
D o o r s &
S e n s o r s
M o t i o n
D i s a r m
5 / 6
A r m
3 / 4 7 / 8
O n O f f
A U X
S e n s o r
M o t i o n T i m e
F I R E P O L I C E
L i g h t s
S p e c i a l
H O M E C O N T R O L
E M E R G E N C Y
H O M E S E C U R I T Y
D o o r s
C h i m e
1 / 2
Press tab with thumb,
then swing cover down.
Press tab up with
screwdriver, then
swing chassis
down.
