Cross-Zoning
Note
Cross-Zoning is not recom-
mended for exit/entry zones.
Each zone has the ability to
individually protect the
intended area. (e.g. motion
detector patterns overlap).

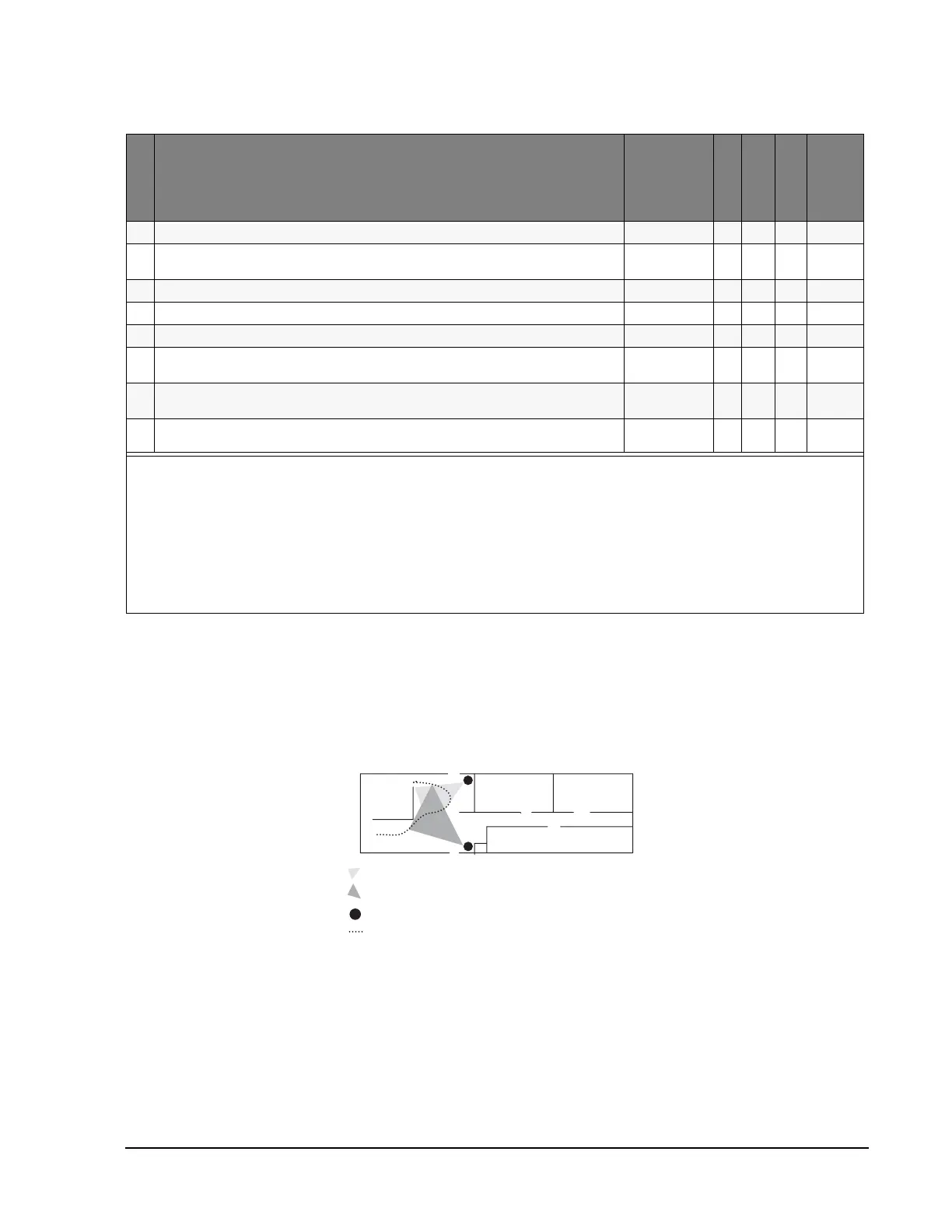

Cross-Zone (Two-Trip) refers to two different Group 18 sensors that must be tripped
within two minutes of each other to report an alarm to the central station. The diagram
in Figure 14 shows the path of a person walking from the kitchen to the living room.
When the person is detected walking through the kitchen, the motion sensor in the
kitchen is tripped, sounding a local alarm. If motion is detected by the living room
motion sensor within two minutes, an alarm report will be sent to the central station.
Figure 14. Cross-Zone Diagram
28 PIR motion sensor, sound sensor or pressure mat.‡ No reports Silent I No Yes 01234
29 Auxiliary: Freeze Sensors Trouble
Beeps
I Yes Yes 01234
32 PIR motion sensor or sound sensor‡ No reports Silent I No No 01234
34 Carbon Monoxide Alarm Emergency I Yes Yes 01234
35 Entry/Exit Delay Interior PIR Motion Intrusion S No Yes 234
36 Special Intrusion: such as gun cabinets and wall safes. Reports as tamper if
tripped. RF Thermostat. DTIM (tamper only).
Intrusion I Yes Yes 1234
37 Light Switch Control: X10 Modules turn either on or off when a door is opened.
No reports.
Silent I No Yes 01234
38 Auxiliary: Water Sensors. Trouble
Beeps
I Yes Yes 01234
Sensor Group Characteristics
Type
Name/Application Siren Type
Delay
Restoral
Supervisory
Active
in
Levels
* This type is not certified as a primary protection circuit for UL-listed systems and is for supplementary use only.
§ This type is required for UL-listed residential fire alarm applications.
‡ This type has not been investigated by UL.
# See “Cross Zoning” section on page 72
Delays:
I = Instant Delay (no delay, immediate alarm)
S = Standard Delay (alarm sounds after programmed entry delay time)
F = Follower Delay (alarm sounds immediately if entry/exit delay is not active, otherwise alarm sounds after programmed
entry delay time)
D i n i n g
R o o m
H a l l
B e d r o o m
B e d r o o m
B e d r o o m
P a t h o f P e r s o n W a l k i n g
M o t i o n S e n s o r
D e t e c t i o n P a t h / K i t c h e n M o t i o n S e n s o r
D e t e c t i o n P a t h / L i v i n g R o o m M o t i o n S e n s o r
K i t c h e n
L i v i n g
R o o m
