Simon Security System 15
No Line Seizure
Note
Connecting the panel to a
standard phone (voice) line
in this manner should be
avoided. Other devices in
use at the same time the
panel is using the line can
prevent reports from going
through.
This method is typically used where DSL (digital subscriber line) service exists. DSL
allows multiple devices on a single phone line to be used simultaneously. Simply con-
necting the panel LINE IN jack to an available phone jack on the premises is all that is
required.
An in-line filter may be required to ensure panel reporting is successful.
* For UL installations, installer needs to verify line seizure.
Wiring the Power Transformer
Connect the power transformer to the panel AC terminals as shown in Figure 10.
Note
Do not plug in the trans-
former at this time

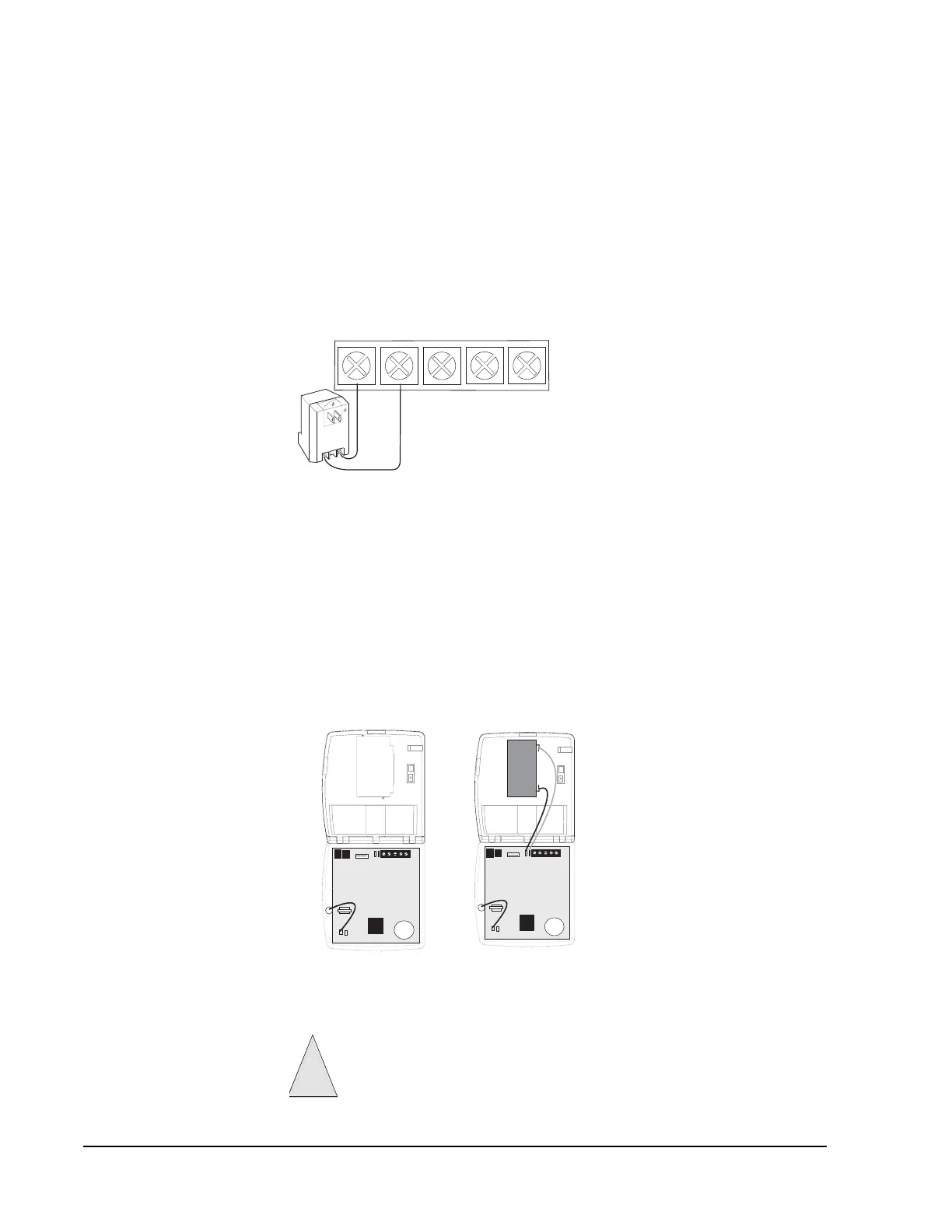

Figure 10. Connecting the Power Transformer
Powering Up the Panel
When applying power to the panel connect the battery first, then plug in the AC power
transformer. This sequence prevents a battery fault condition.
Installing the Panel Backup Battery
1. Remove the cover from the Battery Compartment (A in Figure 11).
2. Connect the red and black battery leads (included with panel) to the battery and
panel terminals (see B in Figure 11).
3. Place the battery in the compartment, running the wires through the openings in
the top and bottom of the compartment.
Figure 11. Installing the Panel Backup Battery
4. Replace the cover to the Battery Compartment (see Figure 12).
H W I N 2
H W I N 1D C O U T
A C A C
A
B
+
-
Cover
+
-
+
-
Black
Red
Tighten the screws to the Battery Compartment securely. Failure to do so coul
d
Tighten the screws to the Battery Compartment securely. Failure to d
!
result in damage to the panel board when the cover and chassis are closed.
C
aution
!
