Zoom20/30/35 Pro | 16Description of the System
Container contents part
2 of 2

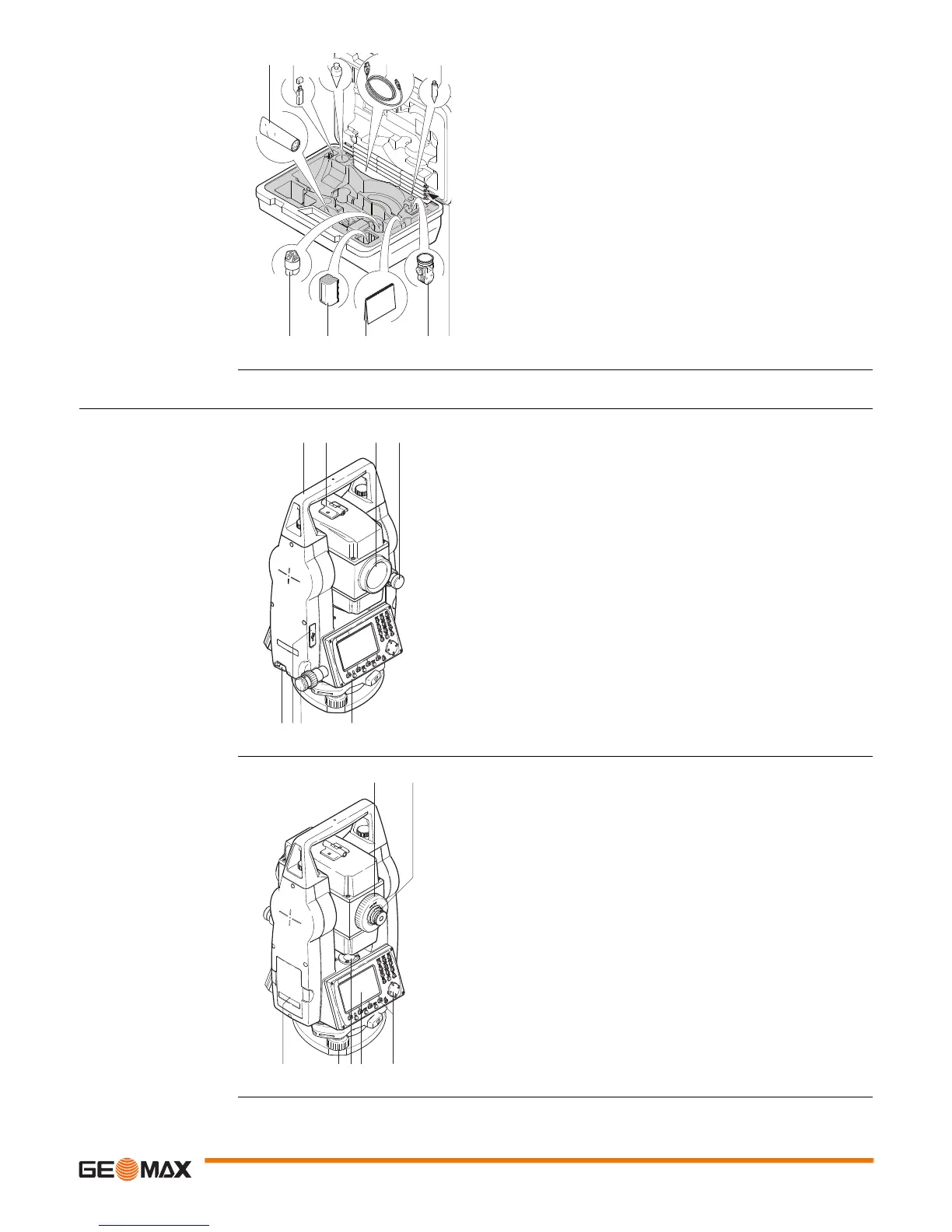

2.3 Instrument Components
Instrument components
part 1 of 2
Instrument components
part 2 of 2
c) Adjustment tools
d) USB memory stick
e) Plumb bob
f) ZDC220 USB cable*
g) Tip for mini prism pole*
h) Protective cover
i) ZBA400 battery*
j) Quick Guide
k) ZPM100 mini prism*
l) Mini prism pole*
*Optional
003753_002
cd e fg
hi
j
k
l
a) Detachable carrying handle
b) Optical sight
c) Objective with integrated Electronic Distance
Measurement (EDM). Exit for EDM laser beam
d) Vertical drive
e) Interface RS232/USB
f) USB host port
g) Horizontal drive
h) Second keyboard*
*Optional
b c da
e f g h
Zoom_002
i) Focusing telescope image
j) Eyepiece; focusing graticule
k) Battery cover
l) Foot screw
m) Circular level
n) Display
o) Keyboard
i
j
k l nm o
Zoom_003
