Functions Zoom20/30/35 Pro | 37

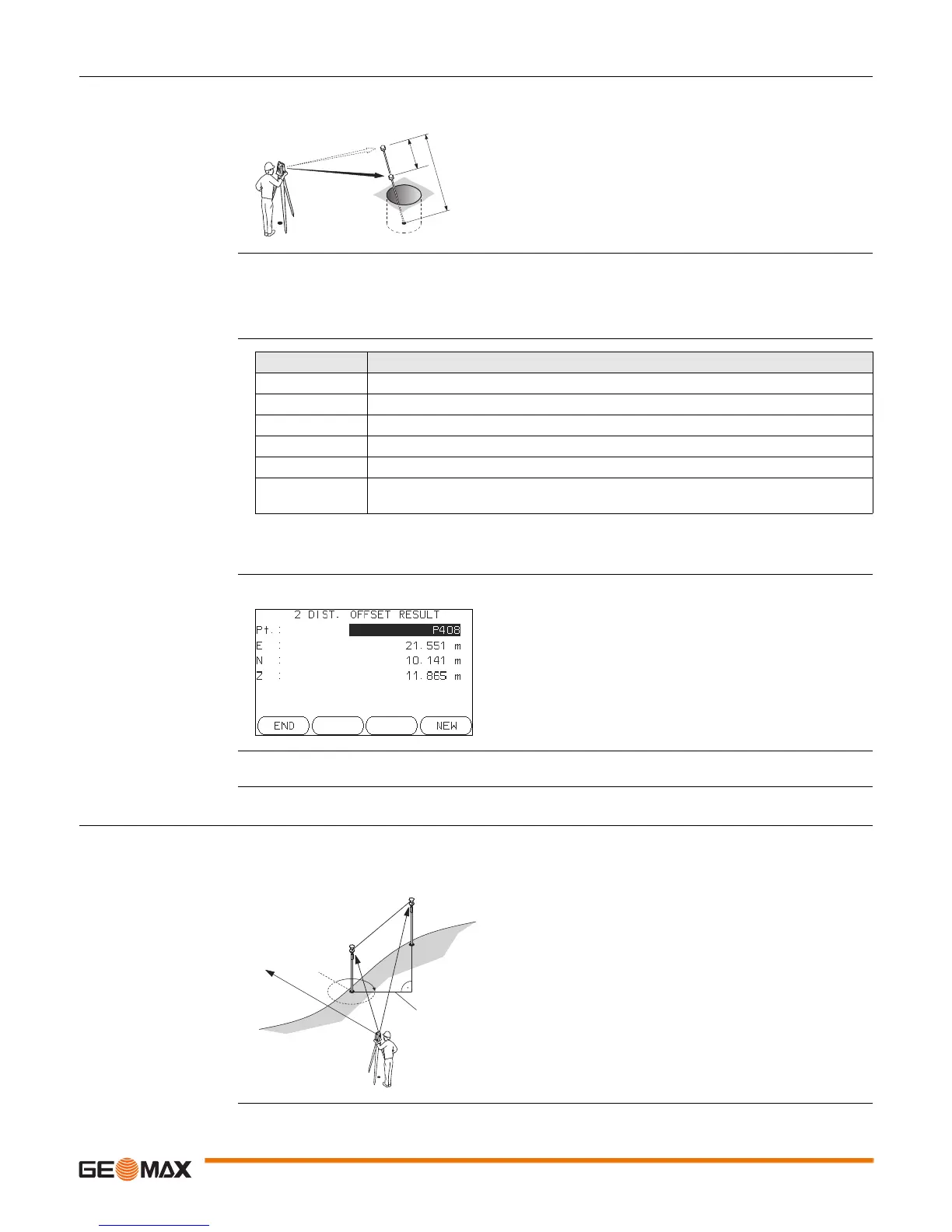

7.5 2 Dist. Offset
Description This function is used for measurements to a point that is not directly visible, using a special 2 Dist. Offset
pole.
Access 1) Press FNC when within any application.
2) Select 2 Dist. Offset from the FUNCTIONS menu.
Next step
If required, press POLE to define the pole or EDM settings.
POLE SETTINGS
Next step
In the 2 DIST. OFFSET screen, measure to the first and second prisms using ALL and the 2 DIST.
OFFSET RESULT screen is displayed.
2 DIST. OFFSET RESULT Displays Easting, Northing and Height coordinates of the target point.
Next step Press END to return to the application where FNC was selected.
7.6 Brg/Dist
Description This function calculates and displays the slope and horizontal distance, height difference, azimuth, grade,
and coordinate differences between the last two measured points. Valid distance measurements are
required for the calculation.
1 E, N, Z of target point
2Pole length
3Distance P1-P2
1
2
3
Field Description
Mode Changes the EDM Mode.
Type Changes the prism type.
GeoMax Const Displays the prism constant.
Pole Length Total length of 2 Dist. Offset pole
Dist. P1-P2 Spacing between the centers of the prisms P1 and P2.
Meas. Tol Limit for the difference between the given and measured spacing of the prisms. If the
tolerance value is exceeded, the function will issue a warning.
END
To record results and return to application
where FNC was selected.
NEW
To return to the 2 DIST. OFFSET screen.
Azi Azimuth
SD Slope distance
VD Height distance
HD Horizontal distance
Azi
SD
VD
HD
N
