Zoom20/30/35 Pro | 76Applications
11.13.6 Slope Setout

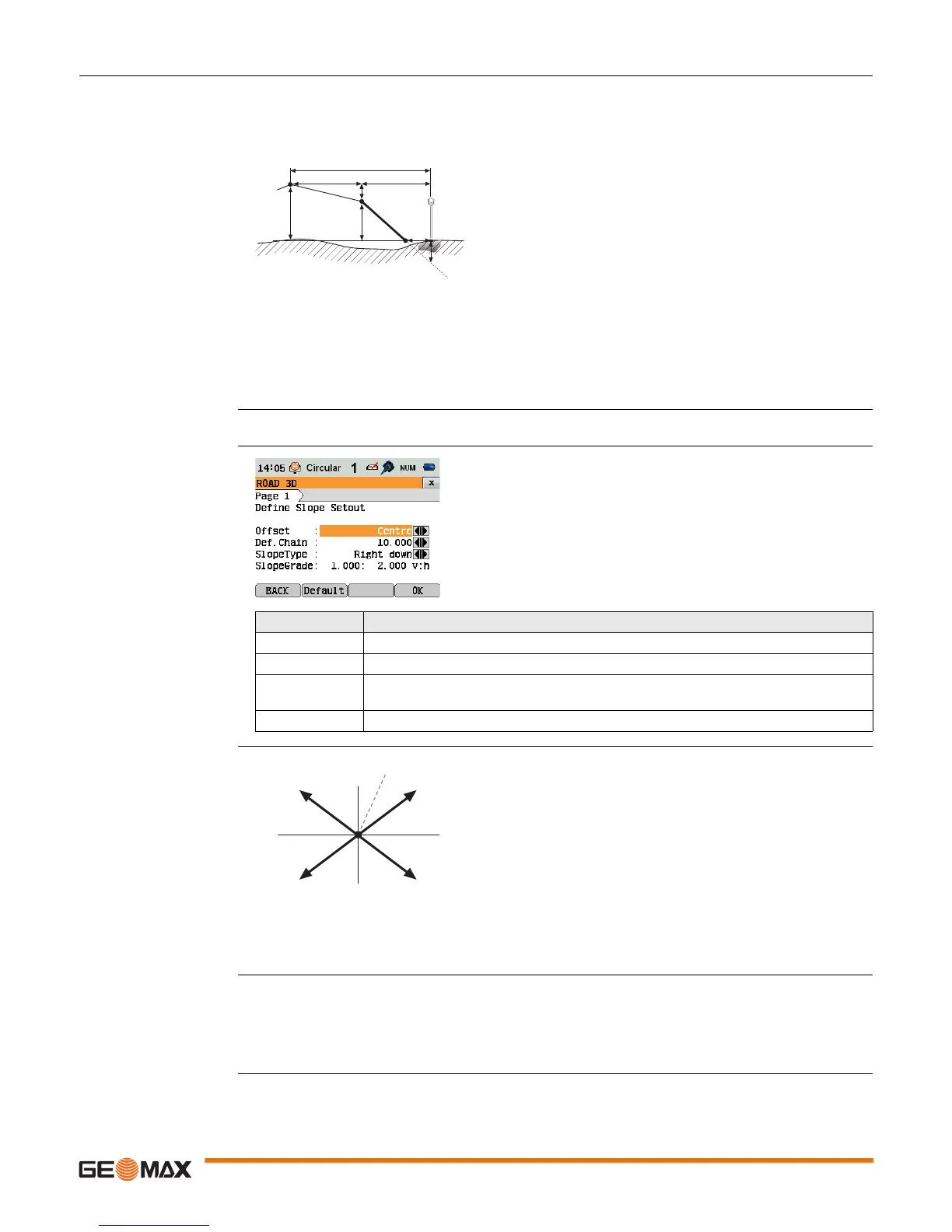

Description The application Slope Setout is used to stake out the catch point, which is the intersection point of a
defined slope with the natural surface.
The slope is always defined as starting from a hinge point. If the parameter offset right/left and height
difference are not entered, the point at the defined chainage on the horizontal alignment is the hinge point.
Access Press Set Slp from the Define Setout/Check/Slope values screen.
Define Slope Setout
Slope Type
Slope Grade Ratio of the slope. The unit for slope grade is defined in the GENERAL SETTINGS screen. Refer to "5.1
General Settings".
Next step
Press Slope Setout to proceed to the Slope Setout screen.
P1 Measured point
a Horizontal alignment
b Defined offset
c Defined height difference
d Hinge point
eDefined slope
fCatch point
g Natural surface
h Offset to catch point
i Cut/fill to catch point
j Offset to hinge point
k Offset to alignment
l Height difference to hinge point
m Height difference to alignment
TSOX_056
P1
f
e
i
h
g
a
c
b
k
lm
j
d
Field Description
Offset Horizontal offset from the horizontal alignment to define the hinge point.
Def.Chain Defined chainage for stakeout.
SlopeType Type of slope. Refer to "Slope Type".
SlopeGrade Slope ratio. Refer to " Slope Grade".
Left up Hinge point Right up Left up
Creates an upward plane extending to the left of
the defined hinge point.
Right up
Creates an upward plane extending to the right of
the defined hinge point.
Left down
Creates a downward plane extending to the left of
the defined hinge point.
Right down
Creates a downward plane extending to the right of
the defined hinge point.
Left down Right down
TSOX_120
To Next Page
