Zoom20/30/35 Pro | 62Applications
11.9.7 Line Segment
Description The line segment application calculates and displays the setout elements for the points along the line,
orthogonal (dL, dO, dH) and polar (dH.A., dH.D., d.d.z.). Line Segment is limited to the reference line,
between the defined start and end points of the line.

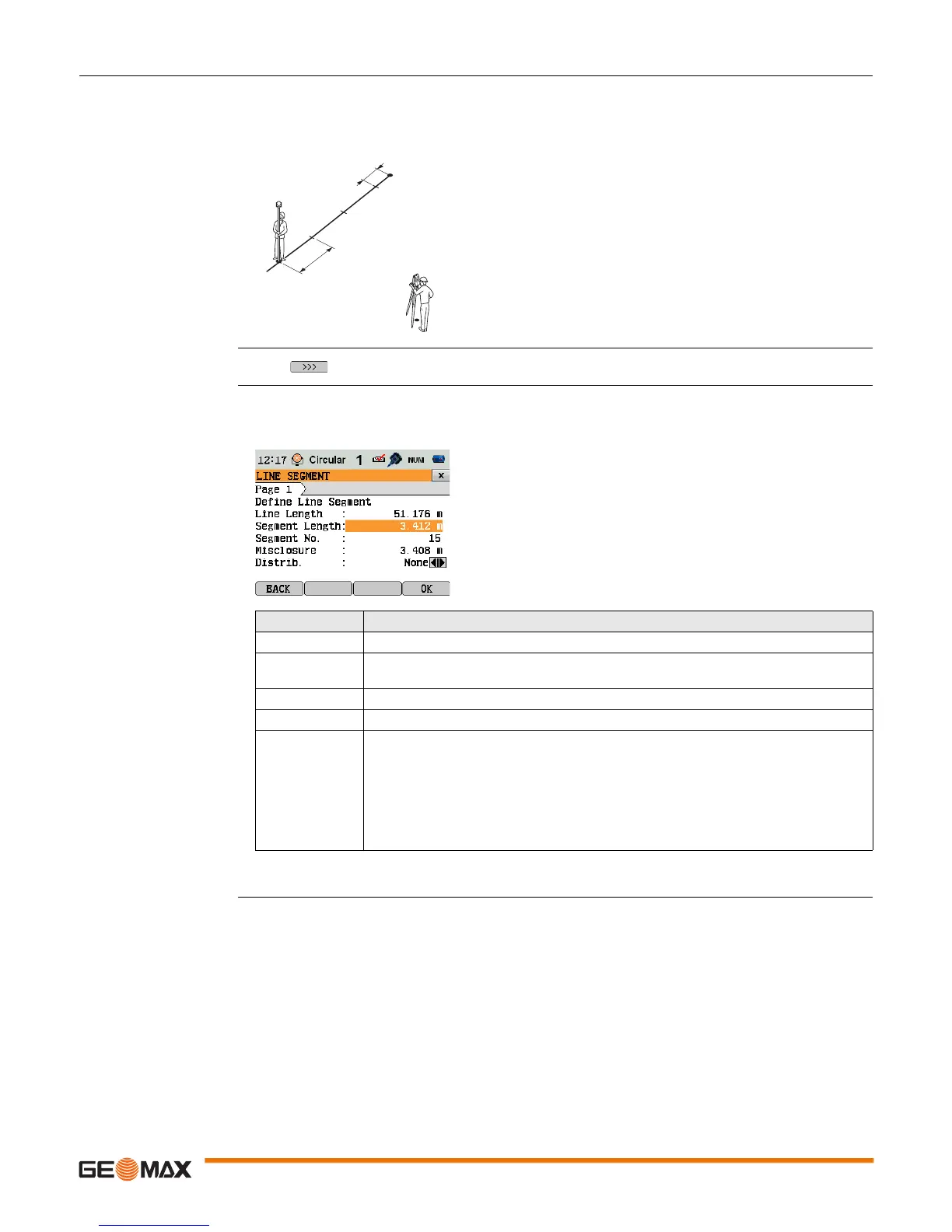

Example Line Segment Setout
Access Press Segment from the REFERENCE LINE screen.
Segment Definition Enter either the number of segments, or the length of segments and define how the remaining line length
is treated. This misclosure can be placed at the start, at the end, at the start and the end or distributed
evenly along the line.
Next step
Press OK to proceed to the LINE SEGMENT - SETOUT screen.
P0 Instrument station
P1 First reference point
P2 Second reference point
a Reference line
d1 Segment length
d2 Misclosure
TSOX_040
P1
P2
a
d1
d2
P0
Field Description
Line Length Calculated length of the defined reference line.
Segment
Length
Length of each segment. Updated automatically if the number of segments is entered.
Segment No. Number of segments. Updated automatically if the segment length is entered.
Misclosure Any remaining line length after segment length has been entered.
Distrib. Method of misclosure distribution.
None All of the misclosure will be placed after the last segment.
Equal The misclosure will be equally distributed between all segments.
At start All of the misclosure will be placed before the first segment.
StartEnd The misclosure is equally distributed at the start and at the end of the
segment line.
