Zoom20/30/35 Pro | 18User Interface

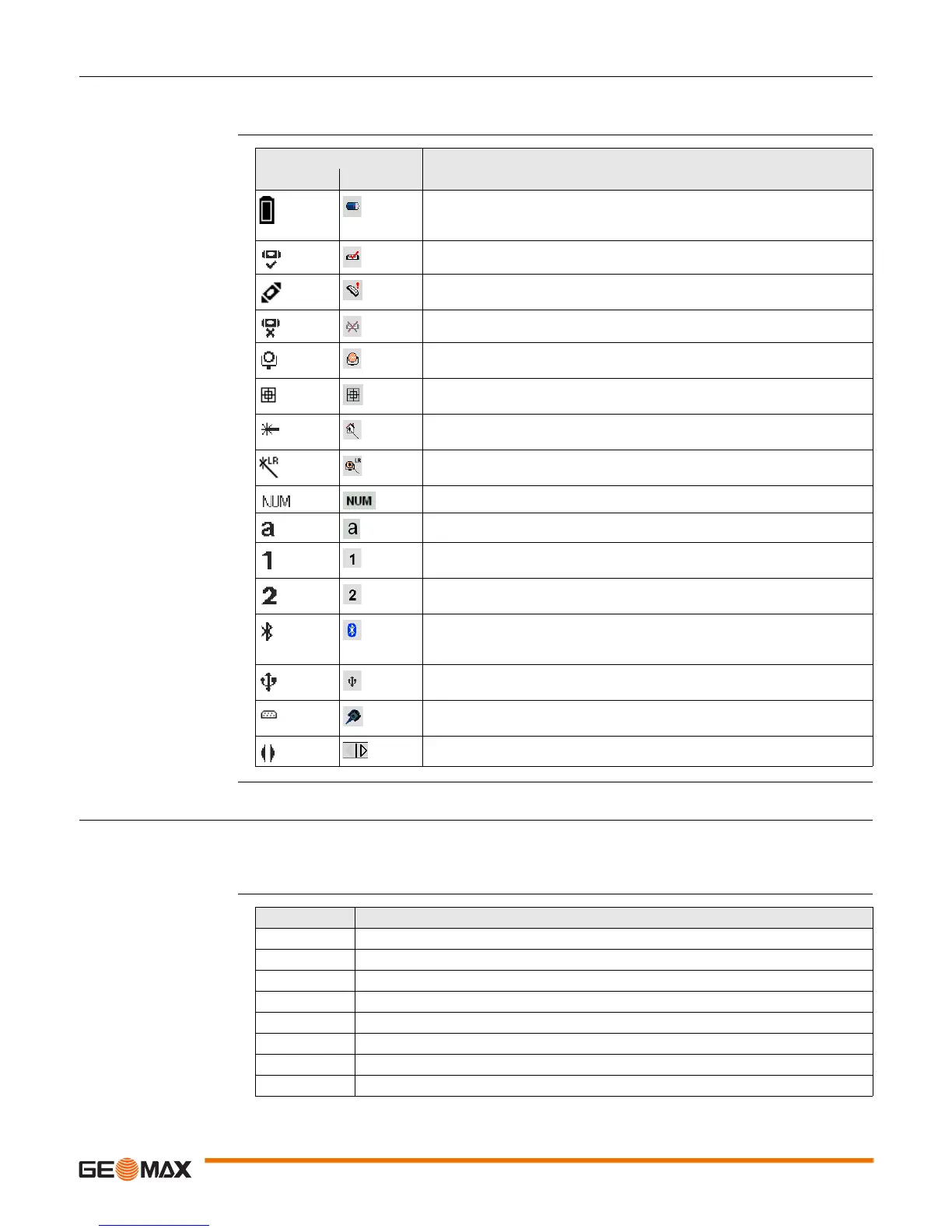

3.3 Status Icons
Description The icons provide status information related to basic instrument functions. Depending on the display type,
different icons are displayed.
Icons
3.4 Softkeys
Description Softkeys are selected using the relevant F1 to F4 function key. This chapter describes the functionality of
the common softkeys used by the system. The more specialised softkeys are described where they appear
in the program chapters.
Common softkey func-
tions
Icon Description
B&W C&T
The battery symbol indicates the level of the remaining battery capacity,
75% full shown in the example. For C&T: Tapping the icon opens the
SYSTEM INFO screen.
Compensator is on. For C&T: Tapping the icon opens the Level Up screen.
Compensator is tilted and out of level. For C&T: Tapping the icon opens the
Level Up screen.
Compensator is off. For C&T: Tapping the icon opens the SETTINGS screen.
IR EDM mode for measuring to prisms and reflective targets. For C&T:
Tapping the icon opens the EDM SETTINGS screen.
Foil EDM mode for measuring to reflective foils and reflector tapes. For C&T:
Tapping the icon opens the EDM SETTINGS screen.
RL EDM mode for measuring to all targets. For C&T: Tapping the icon opens
the EDM SETTINGS screen.
RL-Long Range EDM mode for measuring to prisms. For C&T: Tapping the
icon opens the EDM SETTINGS screen.
Keypad is set to numeric mode.
Keypad is set to alphanumeric mode.
Indicates telescope position is face I. For C&T: Tapping the icon opens the
Level Up screen.
Indicates telescope position is face II. For C&T: Tapping the icon opens the
Level Up screen.
Bluetooth is connected. If there is a cross beside the icon, the Bluetooth
communication port is selected, but the status is inactive. For C&T: Tapping
the icon opens the COMMUNICATION SETTINGS screen.
USB communication port is selected. For C&T: Tapping the icon opens the
COMMUNICATION SETTINGS screen.
RS232 communication port is selected. For C&T: Tapping the icon opens the
COMMUNICATION SETTINGS screen.
A double arrow indicates a field has a selectable list.
Key Description
ALPHA To change the keypad operation to alphanumerical.
NUM To change the keypad operation to numerical.
ALL To start distance and angle measurements and save the measured values.
BACK To return to the last active screen.
COORD To open the manual coordinate entry screen.
EDM To view and change EDM settings. Refer to "5.2 EDM Settings".
EXIT To exit the screen or application.
MEAS To start distance and angle measurements without saving the measured values.
