Zoom20/30/35 Pro | 78Applications

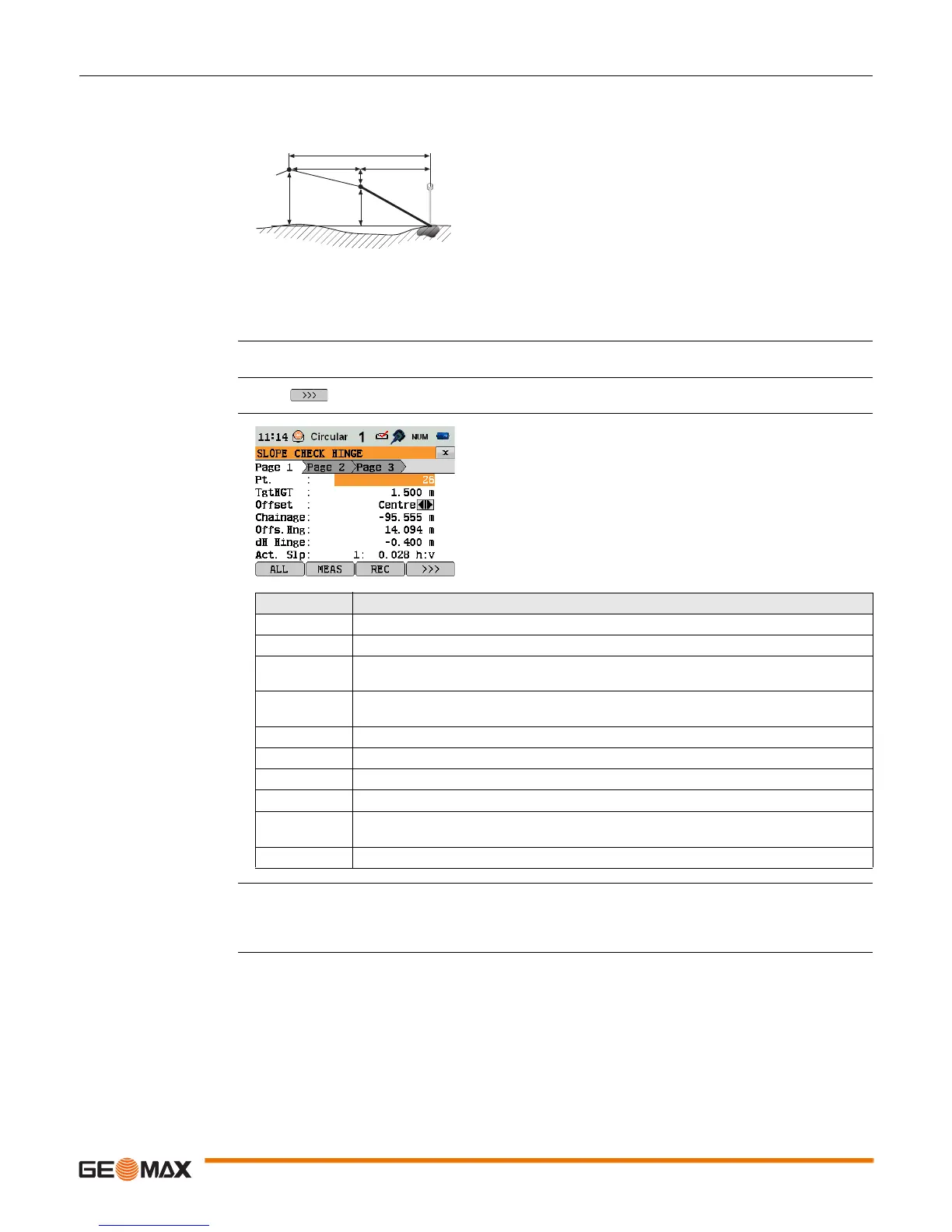

11.13.7 Check Slope
Description The application Check Slope is used for as-built checks and to get information about slopes, for example
on a natural surface. If the parameter offset left/right and height difference are not entered, the point on
the horizontal alignment is the hinge point.
Defined chainage and increment values will not be considered in the application Check.
Access Press Ch Slp from the Define Setout/Check/Slope values screen.
SLOPE CHECK HINGE
Next step • Either, press ALL to measure and record.
• Or, press ESC to return to the Define Setout/Check/Slope values screen.
• Or, continue selecting ESC to exit the application.
P1 Measured point
a Horizontal alignment
b Defined offset
c Defined height difference
d Hinge point
e Actual slope
f Natural surface
g Offset to hinge point
h Offset to alignment
i Height difference to hinge point
j Height difference to alignment
TSOX_055
e
f
a
c
b
h
i
j
g
d
P1
Field Description
Offset Defined horizontal offset. Left, Right or Center.
Chainage Current chainage from measured point.
Offs.Hng Offset to hinge. Measured offset to the horizontal alignment including offset right and
offset left.
dH Hinge Height difference to the hinge point. The vertical offset between the defined height at
the current chainage, and the measured position including defined height difference.
Act. Slp The measured slope ratio of the measured point to the hinge point.
sDIST Hng Slope distance from the measured point to the hinge point.
Z Height value of the measured point.
Offs.Aln Measured offset to the horizontal alignment excluding offset right and offset left.
dH Aln Height difference to the alignment. The vertical offset between defined height at the
current chainage, and the measured position, excluding the defined height difference.
sDIST Aln Slope distance from the measured point to the alignment.
