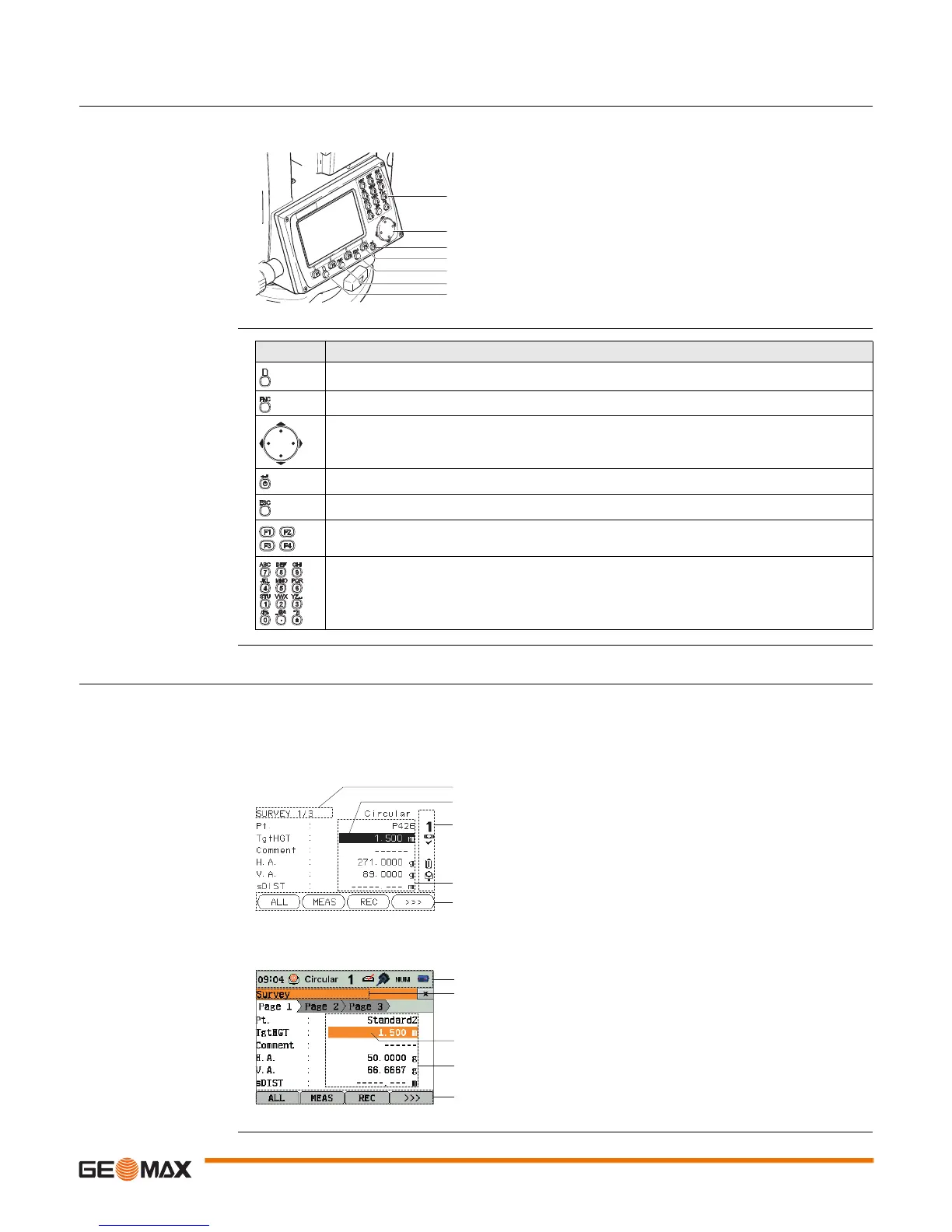

User Interface Zoom20/30/35 Pro | 17
3 User Interface
3.1 Keyboard
Keyboard
The keyboard layout may differ depending on the instrument model.
Keys
3.2 Screen
Screen The instruments are available with Black&White or with Color&Touch display.
All shown screens are examples. It is possible that local firmware versions are different to the
basic version.
Black&White screen:
Color&Touch screen:
a) Alphanumeric keypad
b) Navigation key
c) ENTER key
d) Function keys F1 to F4
e) ESC key
f) FNC key
g) PAGE key
Zoom_009
a
b
c
d
e
f
g
Key Description
Page key. Displays the next screen when several screens are available.
FNC key. Quick-access to measurement supporting functions.
Navigation key. Controls the focus bar within the screen and the entry bar within a field.
ENTER key. Confirms an entry and continues to the next field.
ESC key. Quits a screen or edit mode without saving changes. Returns to next higher level.
Function keys that are assigned the variable functions displayed at the bottom of the screen.
Alphanumeric keypad for entry of text and numerical values.
a) Title of screen
b) Focus in screen. Active field
c) Status icons
d) Fields
e) Softkeys
a) Status icons
b) Title of screen
c) Focus in screen. Active field
d) Fields
e) Softkeys
Tap on an icon or field to run a function.
a
b
c
d
e
Zoom_032
004511_001_en
a
b
c
d
e
