Zoom20/30/35 Pro | 44Applications - Getting Started
Next step
• Either, press OK to continue with the selected job.
• Or, press NEW to open the NEW JOB screen and create a new job.
Recorded data Once a job is set up, all subsequent recorded data will be stored in this job.
If no job was defined and an application was started, or if in Survey and a measurement was recorded,
then the system automatically creates a new job and names it "DEFAULT".
Next step Press OK to confirm the job and return to the Pre-Settings screen.
10.4 Selecting the Station
Description All measurements and coordinate computations are referenced to the set station coordinates.
The station coordinates that are set must include:
• at least grid coordinates (E, N), and
• the station height, if required.
The coordinates can be entered manually or selected from the memory.
Access Select Select Station in the Pre-settings screen.
Station input
If no station was set and an application was started, or if in Survey and a measurement was recorded,
then the last station is set as the current station.
Next step The Inst.H. field appears once the station coordinates have been entered. Enter the instrument height if
desired and press OK to return to the Pre-Settings screen.
10.5 Selecting the Orientation
10.5.1 Overview
Description All measurements and coordinate computations are referenced to the orientation of the set station. The
orientation can be entered manually or determined from points that are either measured or selected from
the memory.
Access Select Select Orientn. in the Pre-settings screen and choose:
• Angle To enter a new bearing. Refer to "10.5.2 Manual Orientation".
• Coordinates To calculate and set the orientation using existing coordinates. A maximum of five
target points can be used. Refer to "10.5.3 Orientation with Coordinates".
10.5.2 Manual Orientation
Access Select Angle in the STN.ORIENTATION screen.
Field Description
Job Name of an existing job to be used.
User Name of user, if entered.
Date Date the selected job was created.
Time Time the selected job was created.

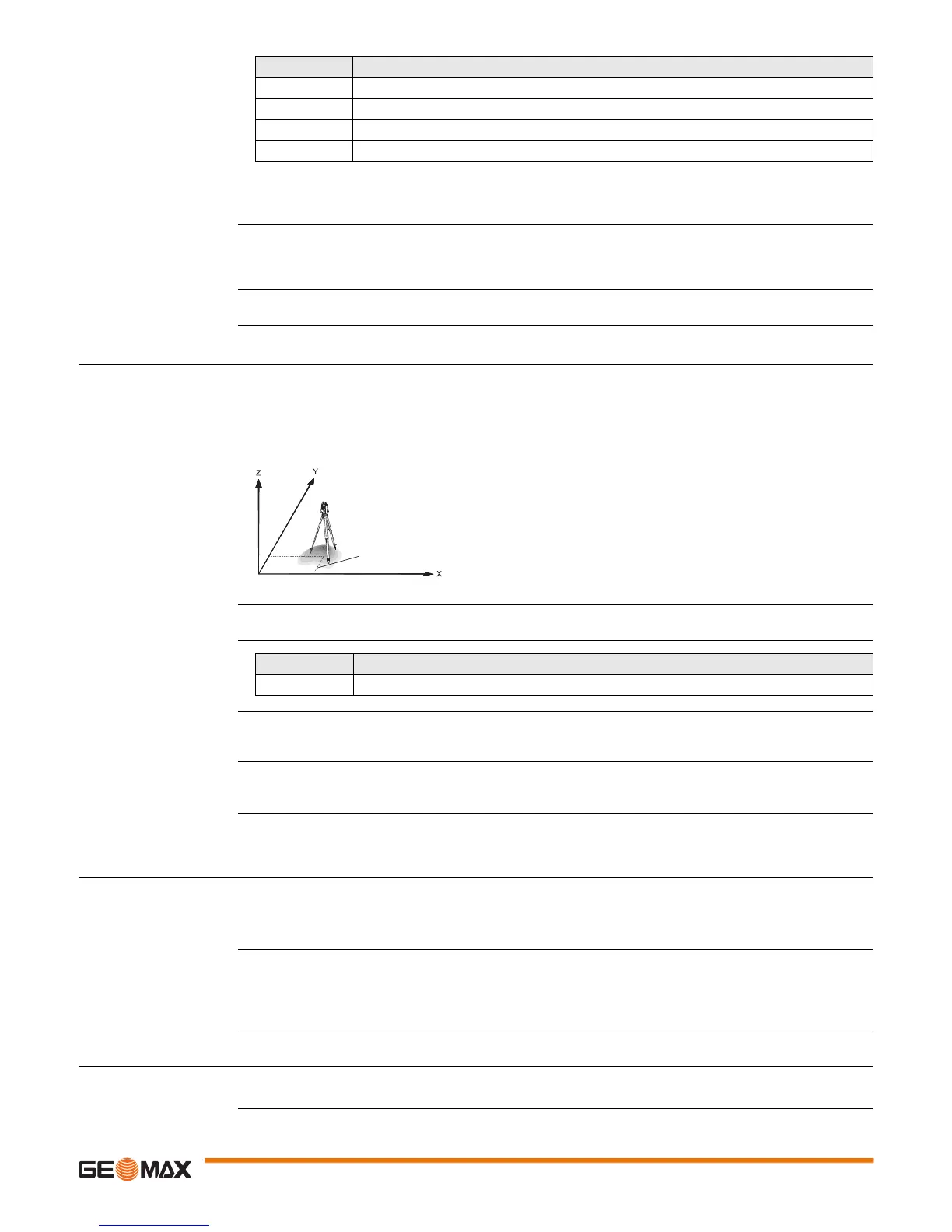

Directions
XEasting
YNorthing
ZHeight
Station coordinates
Stn.X Easting coordinate of station
Stn.Y Northing coordinate of station
STn.X
STn.Y
Field Description
Stn Station name of a previously saved station position.
