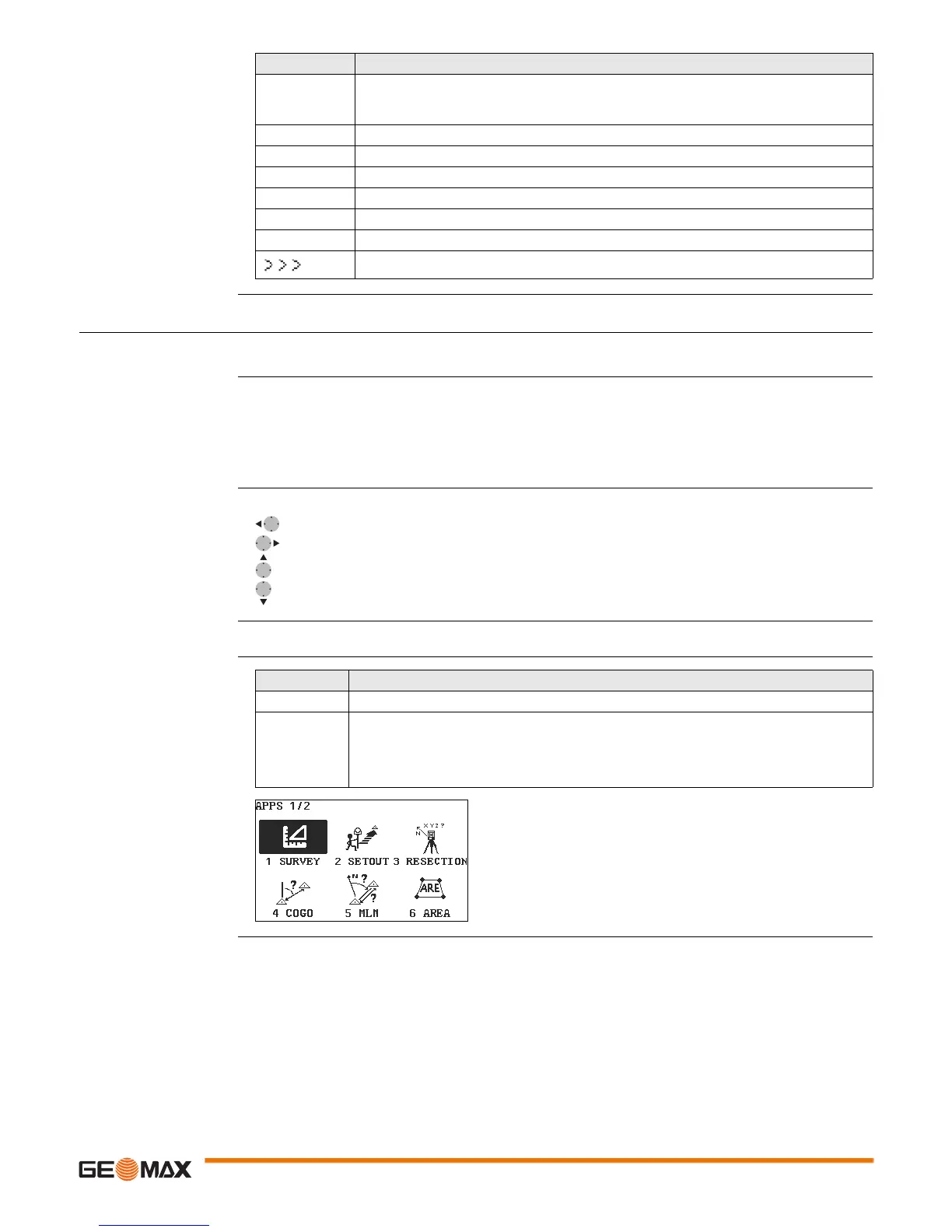

User Interface Zoom20/30/35 Pro | 19
3.5 Operating Principles
Turn instrument on/off Use the On/Off key.
Alphanumeric keypad The alphanumerical keypad is used to enter characters directly into editable fields.
• Numeric fields: Can only contain numerical values. By pressing a key of the keypad the number will
be displayed.
• Alphanumeric fields: Can contain numbers and letters. By pressing a key of the keypad the first
character written above that key will be displayed. By pressing several times you can toggle through
the characters. For example: 1->S->T->U->1->S....
Edit fields
In edit mode the position of the decimal place cannot be changed. The decimal place is skipped.
Special characters
OK If entry screen: Confirms measured or entered values and continues the process.
If message screen: Confirms message and continues with selected action or returns to
the previous screen to reselect an option.
IR/RL To toggle between IR and RL EDM modes.
DISPL. To display the list of available points.
REC To save the displayed values.
DEFLT To reset all editable fields to their default values.
SEARCH To search for an entered point.
VIEW To display the coordinate and job details of the selected point.
To display the next softkey level.
Key Description
ESC Deletes any change and restores the previous value.
Moves the cursor to the left
Moves the cursor to the right.
Inserts a character at the cursor position.
Deletes the character at the cursor position.
Character Description
* Used as wildcards in search fields for point numbers or codes. Refer to "3.6 Pointsearch".
+/- In the alphanumeric character set "+" and "-" are treated as normal alphanumeric char-
acters with no mathematical function.
"+" / "-" only appear in front of an entry.
In this example selecting 2 on an alphanumeric
keyboard would start the Set Out application.
