Settings Zoom20/30/35 Pro | 31
5.3 Communication Settings
Description For data transfer the communication parameters of the instrument must be set.
Access 1) Select Settings from the MAIN MENU.
2) Select Comm. from the Settings menu.

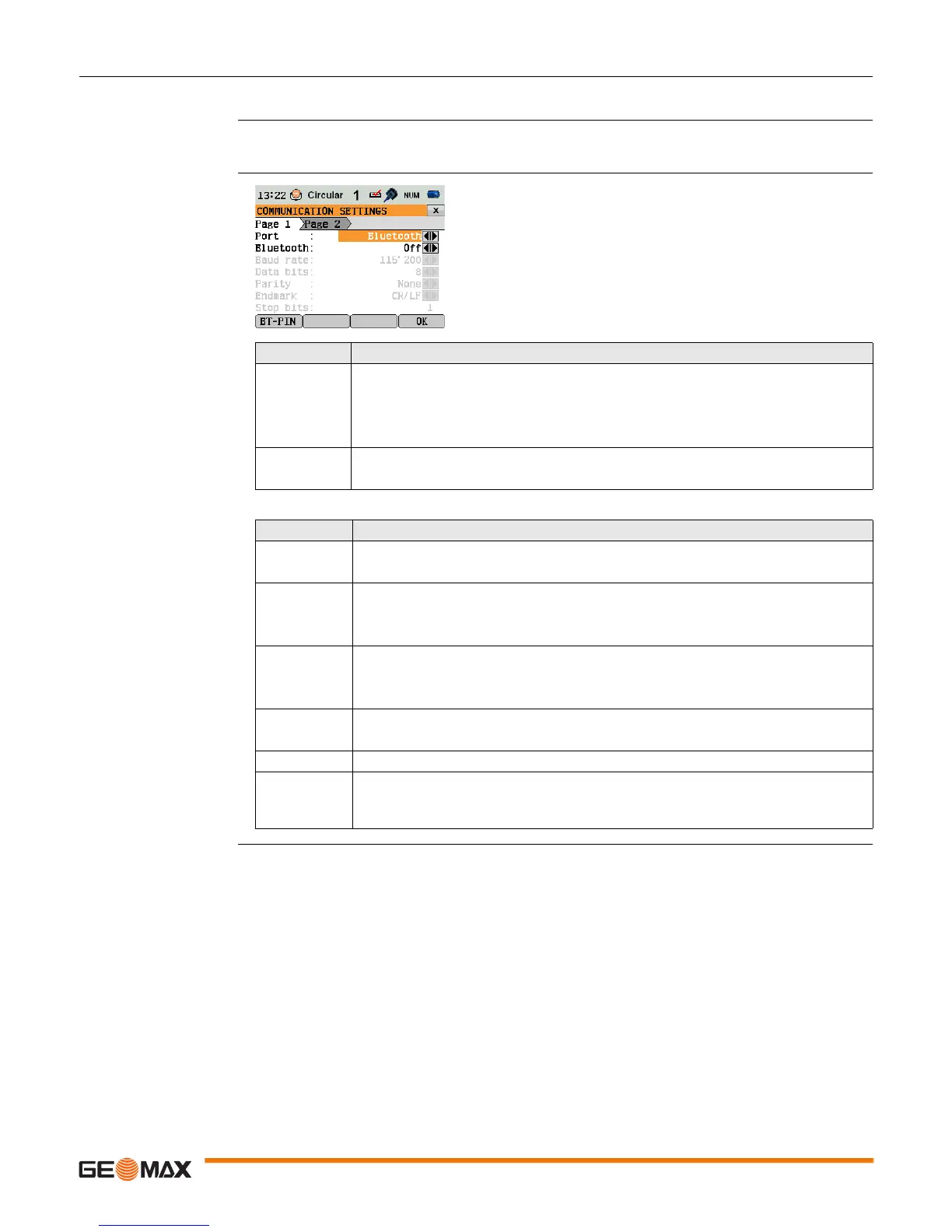

COMMUNICATION
SETTINGS
The following fields are active only when Port: RS232 is set.
BT-PIN
To set a code for the Bluetooth connection.
This softkey is only available for Zoom30
Pro/Zoom35 Pro instruments. The default
Bluetooth code is ’0000’.
Field Description
Port Instrument port.
RS232 Communication is via the serial interface.
USB Communication is via the USB host port.
Bluetooth Communication is via Bluetooth.
Bluetooth On Bluetooth sensor is activated.
Off Bluetooth sensor is deactivated.
Field Description
Baud rate Speed of data transfer from receiver to device in bits per second.
1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, Topcon, Sokkia
Data bits Number of bits in a block of digital data.
7 Data transfer is realised with 7 databits.
8 Data transfer is realised with 8 databits.
Parity Even Even parity. Available if data bit is set to 7.
Odd Odd parity. Available if data bit is set to 7.
None No parity. Available if data bit is set to 8.
Endmark CR/LF The terminator is a carriage return followed by a line feed.
CR The terminator is a carriage return.
Stop bits 1 Number of bits at the end of a block of digital data.
Acknowledge On Acknowledgement expected from other device after data transfer received.
An error message will display if no acknowledgement is returned.
Off No acknowledgement expected after data transfer.
To Next Page
