Applications Zoom20/30/35 Pro | 77

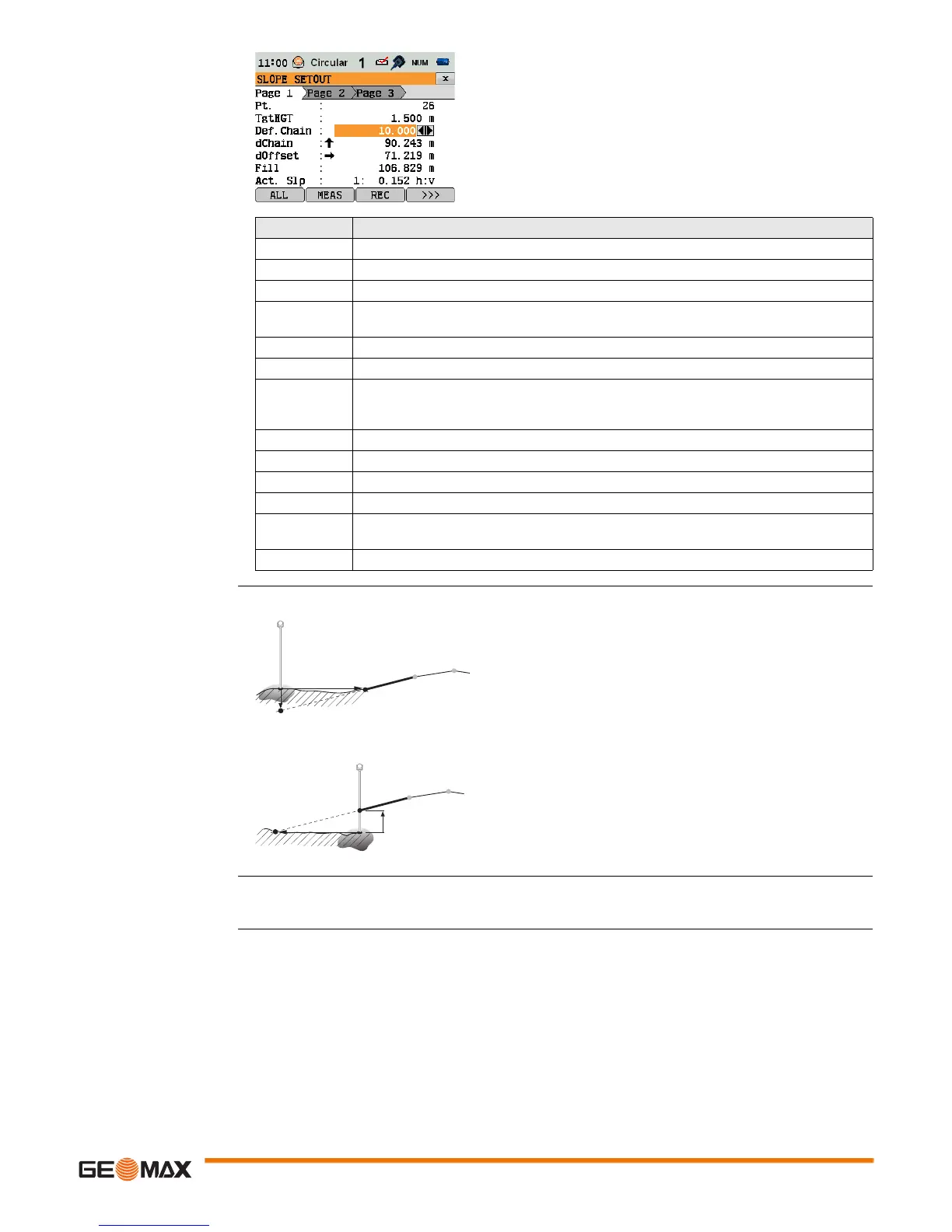

Slope Setout
Sign convention Cut situation
Fill situation
Next step • Either, press ALL to measure and record.
• Or, press ESC to return to the Define Setout/Check/Slope values screen.
Field Description
DefChain Defined chainage for stake out.
dChain Difference between the defined chainage and the measured chainage.
dOffset Horizontal offset between the catch point of defined slope and the measured position.
Cut Vertical offset between the catch point of the defined slope and the measured position.
A cut is above the slope, a fill is below the slope.
Act.Slp Measured slope of the reflector position to the hinge point.
Offs.Hng Measured offset to the horizontal alignment including offset right and offset left.
dH Hinge Height difference to the hinge point. The vertical offset between the defined height at
the current chainage, and the measured position, including the defined height differ-
ence.
sDISTHng Slope distance from the measured point to the hinge point.
Z Height value of the measured point.
Act. Ch. The measured chainage.
Offs.Aln Measured offset to the horizontal alignment excluding offset right and offset left.
dAln Height difference to the alignment. The vertical offset between defined height at the
current chainage, and the measured position, excluding the defined height difference.
sDIST Aln Slope distance from the measured point to the alignment.
P1 Measured point
P2 Catch point
a Horizontal alignment
b Hinge point
cCut
d Offset to catch point
P1 Measured point
P2 Catch point
a Horizontal alignment
b Hinge point
cFill
d Offset to catch point
TSOX_057
c
d
a
b
P1
P2
P2
TSOX_058
a
b
d
c
P1
P2
P2
