GeoMax Zoom20 Pro Series User Manual

Zoom20/30/35 Pro | 72Applications

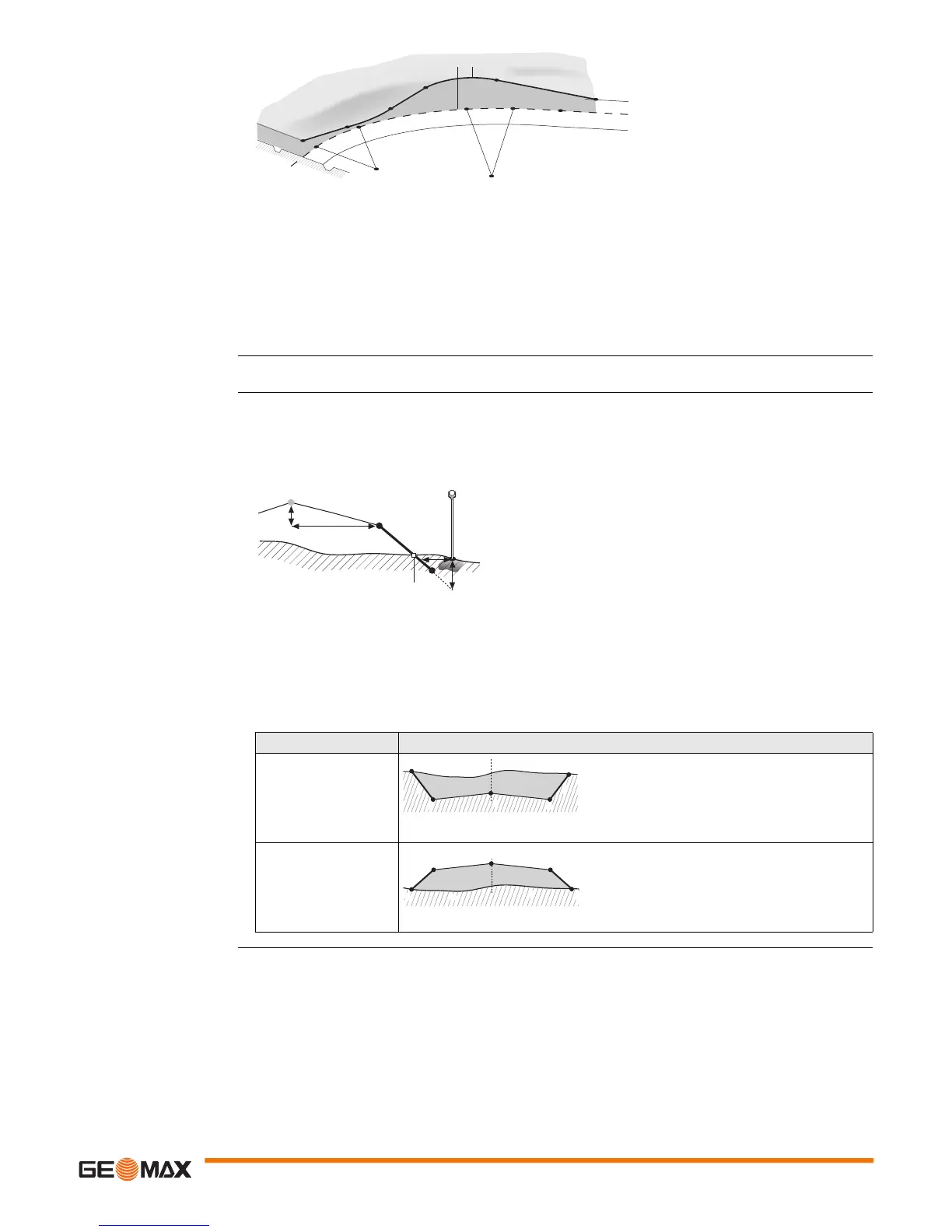

Horizontal and vertical
geometry elements
combined

Start and end chainage and tangent points can be different for the horizontal and vertical alignments.
Slope elements
Explanation of the slope elements:
a) Horizontal alignment at a defined chainage.
b) Hinge point, is defined by entered offset left/right and height difference.
c) Slope = ratio.
d) Catch point, or daylight point, indicates the point of intersection between the slope and the natural
surface. Both the hinge point and the catch point lie on the slope.
e) Natural surface, is the undisturbed surface before project construction.
a = Horizontal alignment (top view)
R1 Radius 1
R2 Radius 2
a1 Straight
a2 Curve with R1
a3 Partial spiral with R1 and R2
a4 Curve with R2
a5 Spiral out with R2 and R=
a6 Straight
b = Vertical alignment (front view)
b1 Straight
b2 Curve
b3 Straight
b4 Parabola
b5 Straight
• Tangent point
TSOX_116
R
R1
R2
-%
+%
-%
b1
b2
b3
ab
b4
b5
a2
a3
a4 a5
a6
a1
∞
P1 Measured point
a Horizontal alignment
b Hinge point
cSlope
dCatch point
e Natural surface
f Defined offset
g Defined height difference
h Cut situation for defined slope
i  Offset to catch point
Cut / Fill Description
Cut situation a) Horizontal alignment
b) Hinge point
c) Slope
d) Catch point
e) Natural surface
Fill situation a) Horizontal alignment
b) Hinge point
c) Slope
d) Catch point
e) Natural surface
TSOX 052
c
a
e
f
i
g
d
h
b
P1
TSOX_117
cc
a
e
e
bb
d
d
TSOX_118
d
d
c
c
a
e
e
bb
