Maintenance
334
• PC, or Menu Panel equipped with a mouse and keyboard,
• K-Frame Switcher Installer application program deployed onto the PC or Menu Panel,
and
• GV Switcher release software.
After creating new CF cards, you will need the following to restore your system to full
operation:
• Backup system configuration files (a Show file, or a set of Eng Setups and User Setups
files), and
• Node Settings information (IP addresses and names of all system components). This
may be written notes, screen shots, or a spread sheet. This information is not saved to
configuration files.
CF Card Formatting Procedure
1 Connect the CF card reader/writer to the USB port of the PC or Menu Panel and insert
the CF card into the reader/writer.

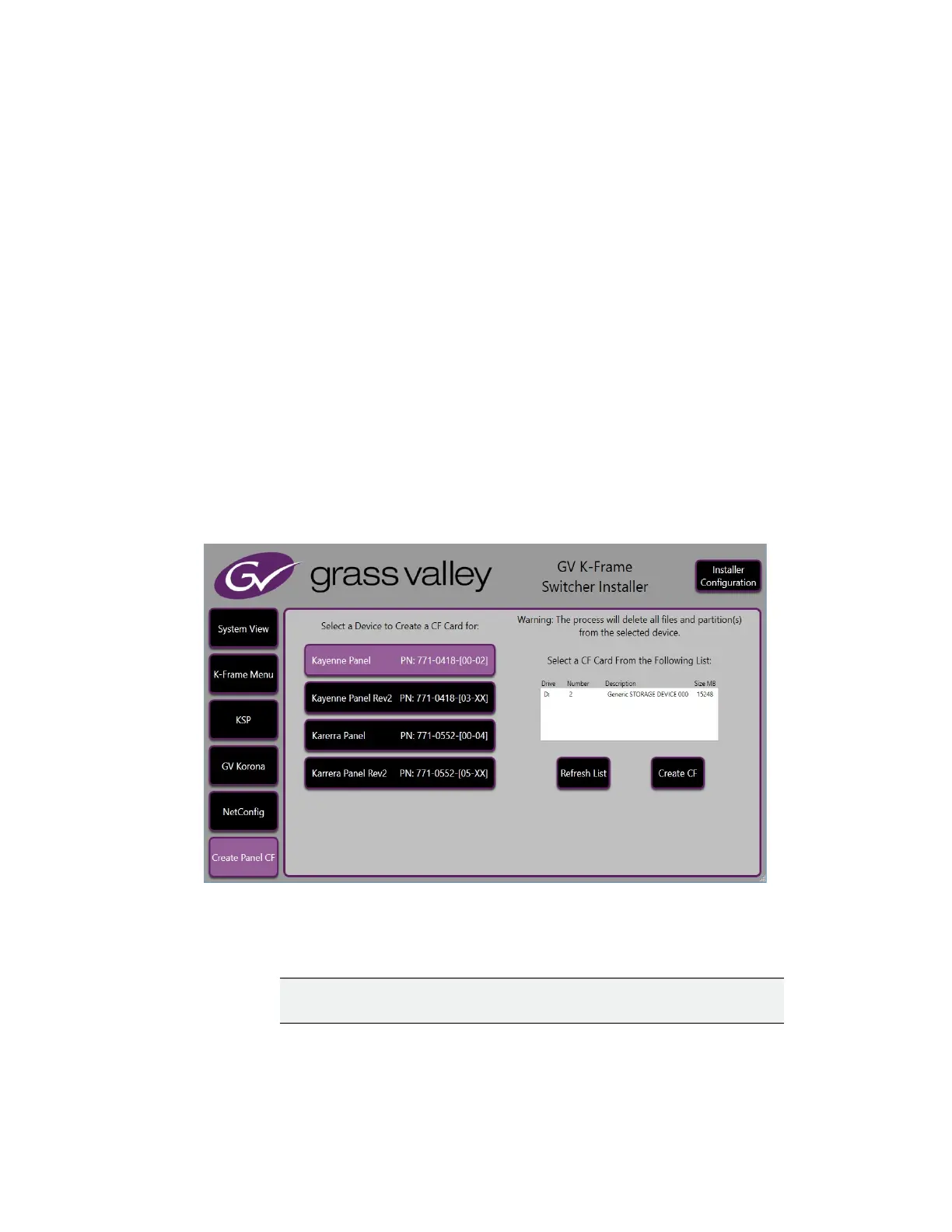

2 Launch the K-Frame Switcher Installer program.
3 Select
Create CF and select a device (left).
4 Select the CF Card from the list (right).
5 Select Create CF.
CAUTION: Any existing files or partitions on the CF card will be
deleted.
