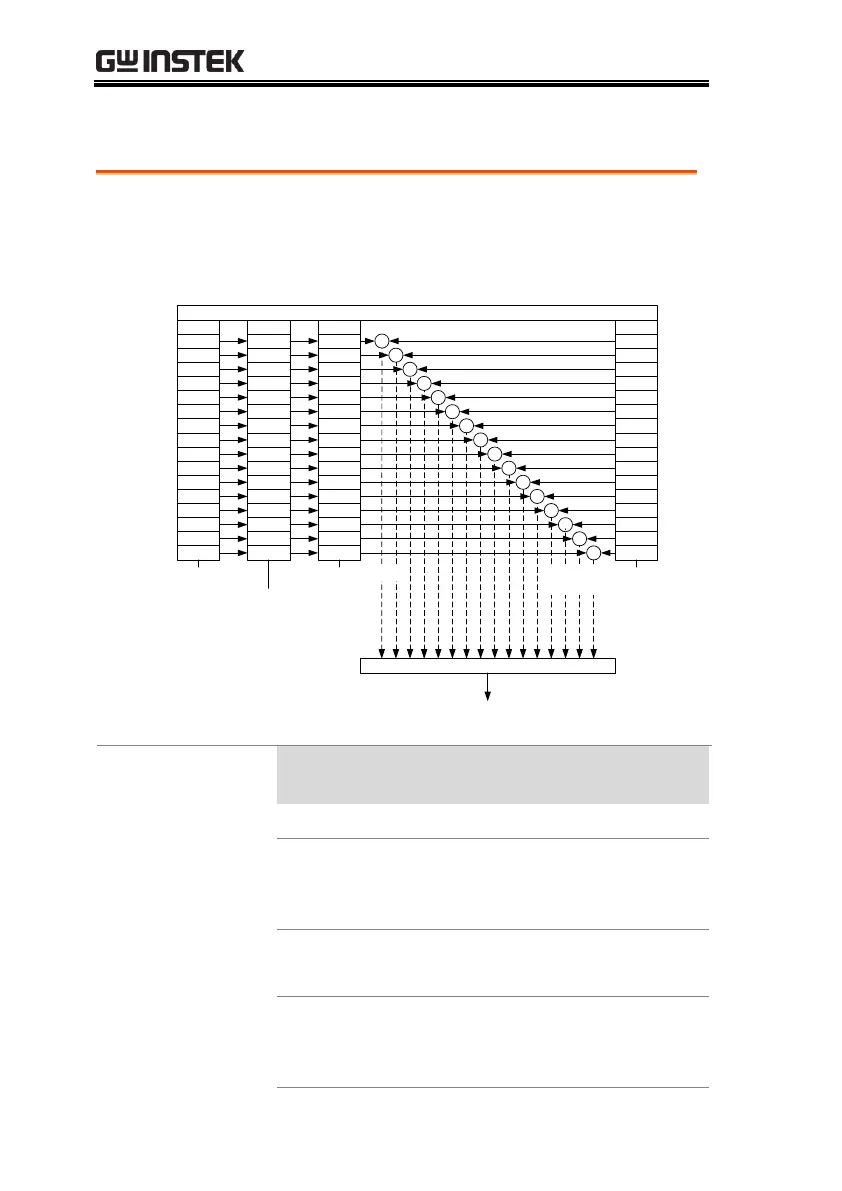

Questionable Status Register Group
Overview
The Questionable Status Register Group indicates
if any protection modes or limits have been
tripped.
Condition
Not Used 0
PTR/NTP Event Enable
OC 1
PUL 2
OPK 3
OT 4
OCP 5
Output Short
6
System Wait
7
CAL 8
OP 9
Not Used 10
Not Used 11
Not Used 12
Not Used 13
Not Used 14
Always 0 15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Questionable Status Register
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
Logical OR
To Status Byte Register
STATus:QUEStionable:CONDition? STATus:QUEStionable:EVENt?
STATus:QUEStionable:NTRansition <NRf>
STATus:QUEStionable:NTRansition?
STATus:QUEStionable:PTRansition <NRf>
STATus:QUEStionable:PTRansition?
STATus:QUEStionable:ENABle <NRf>
STATus:QUEStionable:ENABle?
Bit Summary
Event
Bit #
Bit
Weight
Not Used
0
1
OC (Over-Current)
Over current protection has been
tripped
1
2
PUL (Device error has occurred)
AC power switch is off
2
4
OPK (Over Peak)
Over Peak Protection has been
tripped
3
8
