23-2 23. SHINKO ELECTRIC PLC
Wiring

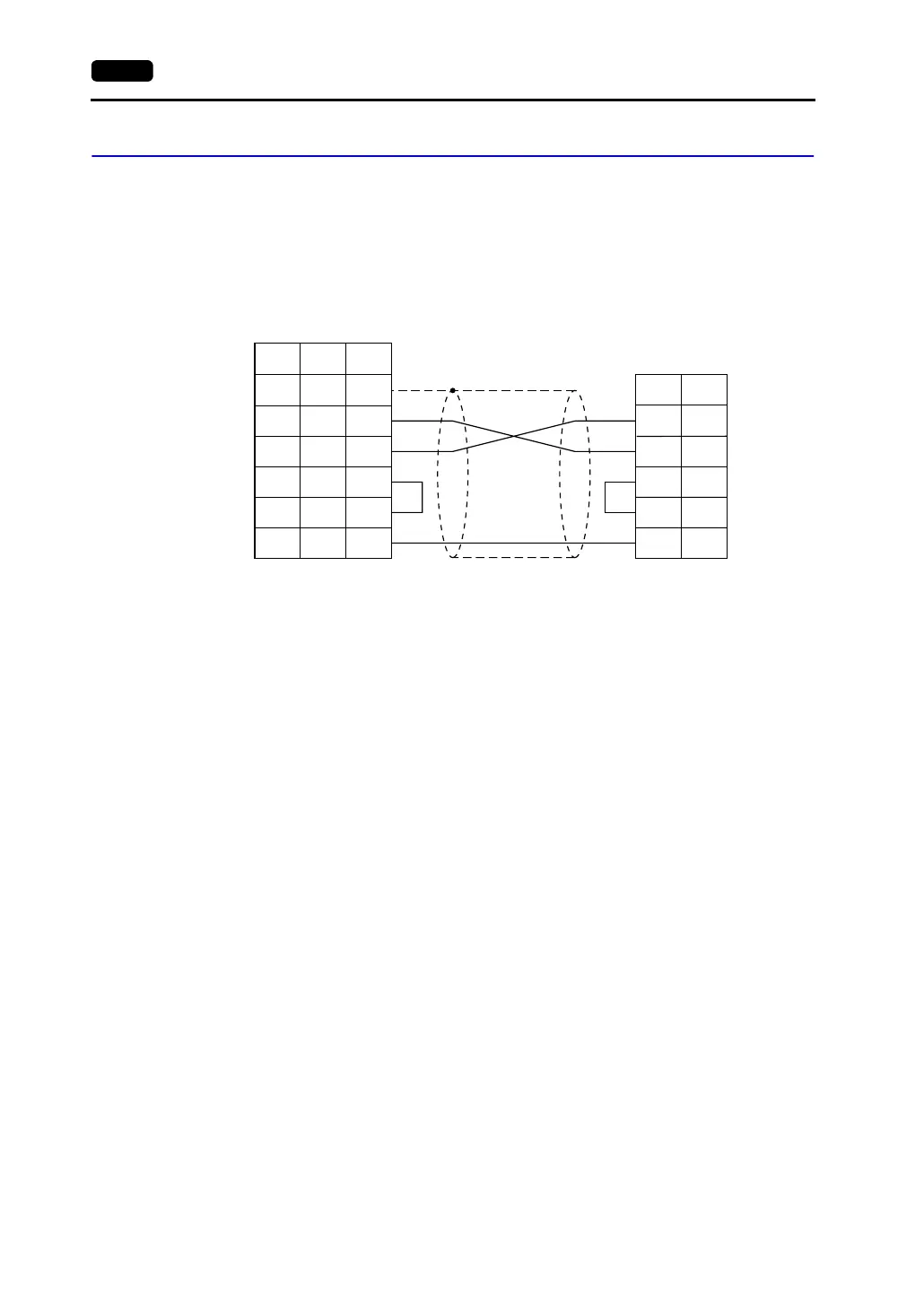

Wiring diagram with the PLC is shown below.
RS-232C
Wiring Diagram 1
SD
PLC
RD
RS
2
3
4
CS 5
SG 7
1
2
3
4
5
7
SD
RD
RS
CS
SG
SHELL
8
7
5
*1
* Use shielded twist-pair cables.
D-sub 25-pin (male)
D-sub 25-pin (male)RJ-45 8-pin
V Series
CN1
V706
MJ2
*1 Pin No. 1 of CN1 is used
as FG.
The metal shell of the
modular jack 2 on the
V706 is used as SG.
Signal
Name
Pin No. Pin No.
Signal
Name
Pin No.
