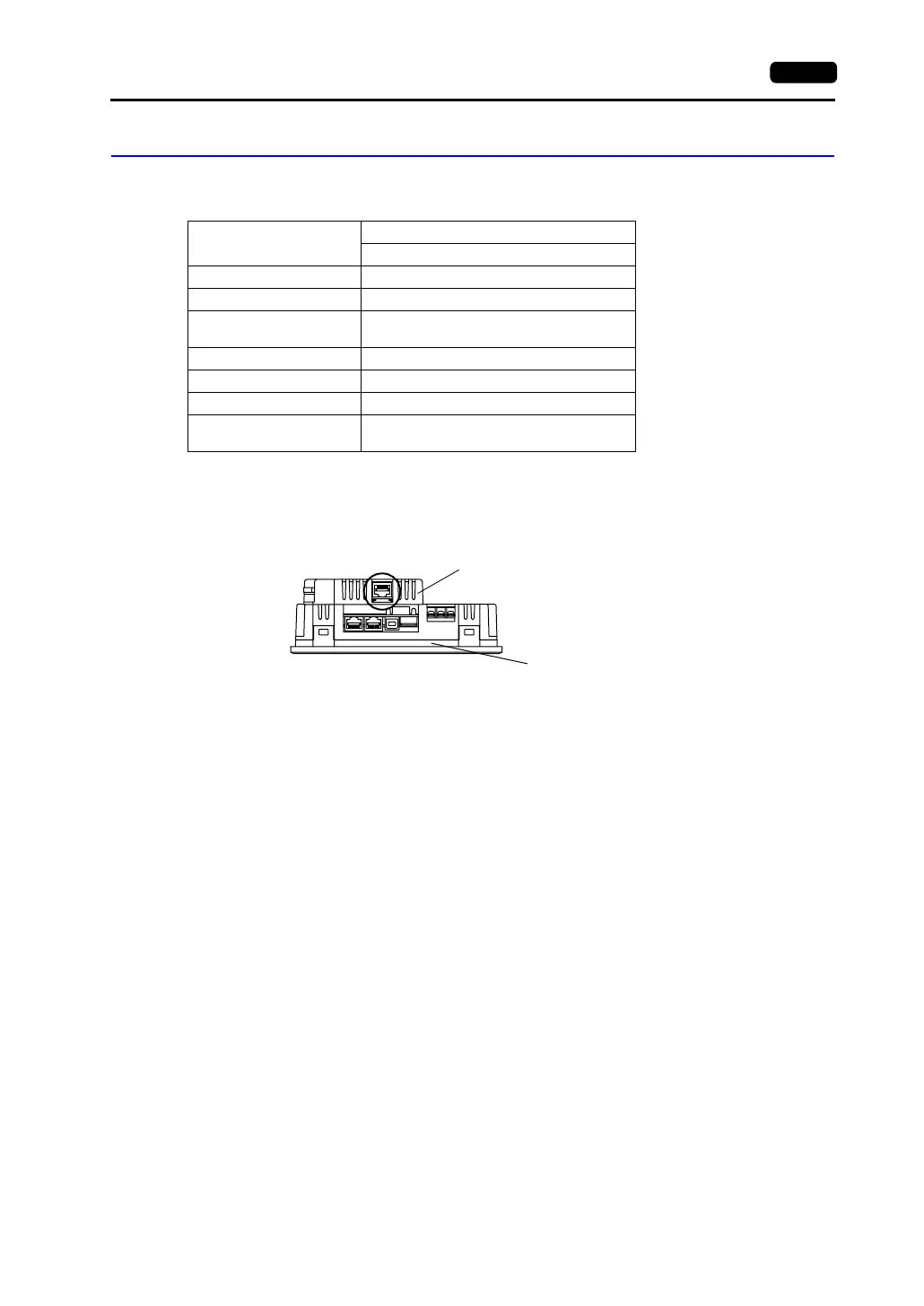

Appendix 5 Ethernet App5-5
Option Unit DU-01
Specifications
Port Position
When the DU-01 mounted on the V706, the LAN port faces downward.
Item
Specifications
10BASE-T
Baud rate 10 Mbps
Transmission method Base band
Maximum network distance
or maximum node interval
500 m (4 HUBs)
Maximum segment length 100 m (between the node and the HUB)
Maximum number of nodes 2/segment
Minimum node interval None
Connecting cable
UTP (unshielded twisted pair)
22-26AWG
Bottom View
DU-01
V706
