App5-6 Appendix 5 Ethernet
Wiring
10BASE-T Connection

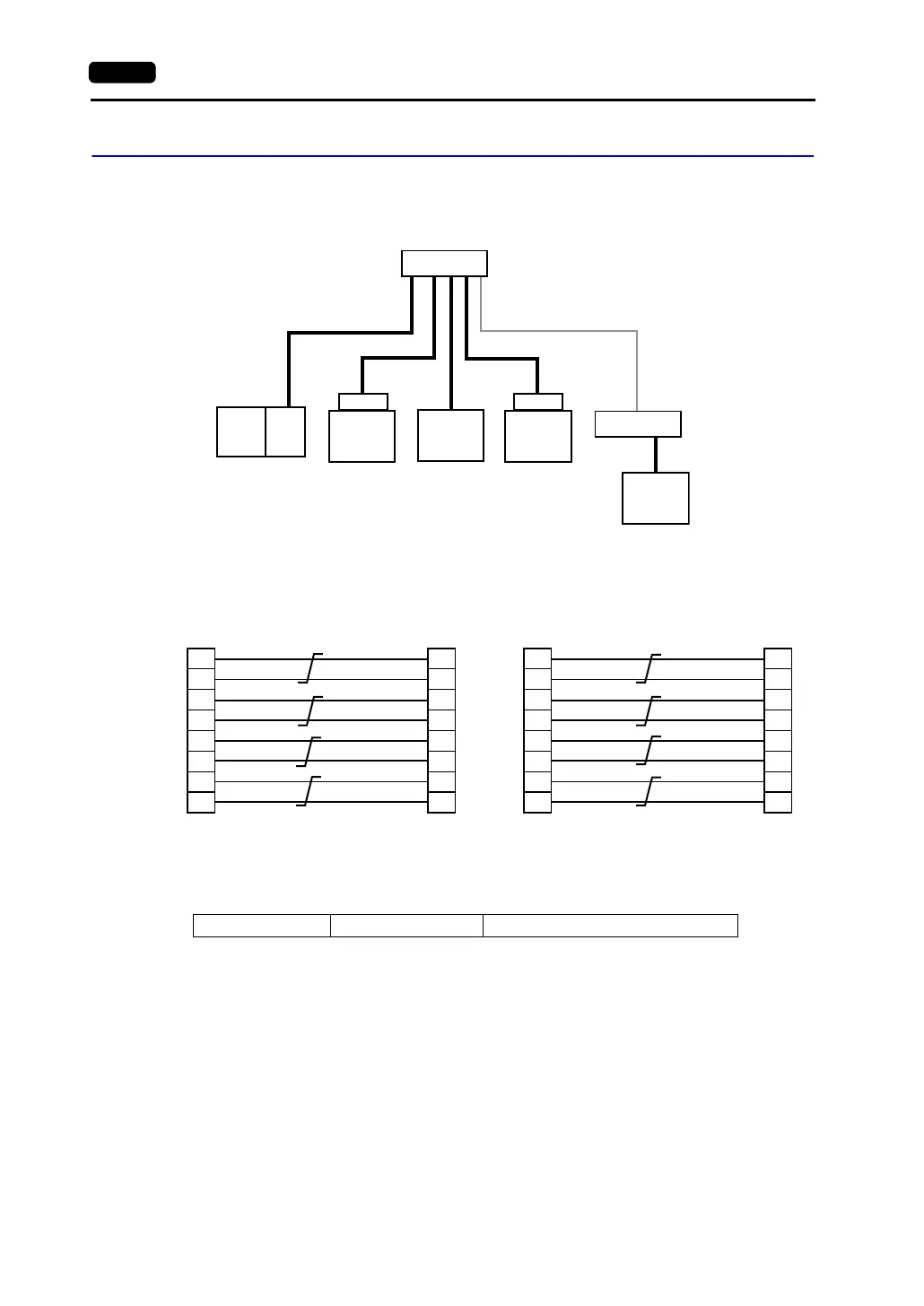

• Cable connection diagram
Straight cable Cross cable
(with HUB) (without HUB)
• Notes on cables
Use the following recommended cable.
Recommended cable 10BASE-T Type: Twist-pair cable, category 5
DU-01
V7iV706
PLC
HUB
HUB
CU-03
V7
Distance between the node and the HUB: 100 m maximum
Maximum network nodes: 100
Ethernet
unit
Node
UTP cable
Straight or cross cable
(For more information, refer to the HUB specifications.)
UTP cable
Straight
10BASE-T
RJ-45 8Pin
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
10BASE-T
RJ-45 8Pin
1
2
3
6
4
5
7
8
3
6
1
2
5
4
8
7
10BASE-T
RJ-45 8Pin
10BASE-T
RJ-45 8Pin
* Unshielded twist-pair cable * Unshielded twist-pair cable
