Appendix 2 n : 1 Connection (Multi-link 2) App2-1
Appendix 2 n : 1 Connection (Multi-link 2)
Multi-link 2
• One PLC is connected to a maximum of four V7 series.
• An original network is created where the V7 series (Local Port 1) that is directly connected to the
PLC is the master station, and other three V7 series are slave stations. Only the master station
makes communications directly with the PLC, and the slave stations make communications with
the PLC via the master station.
• Communications between the V7 master station and the PLC depend on the communication
speed set on the PLC. The maximum available speed for the V7 series is 115 kbps, which is
higher than the one available with multi-link connection described in “Appendix 3, n : 1 Connection
(Multi-link).”

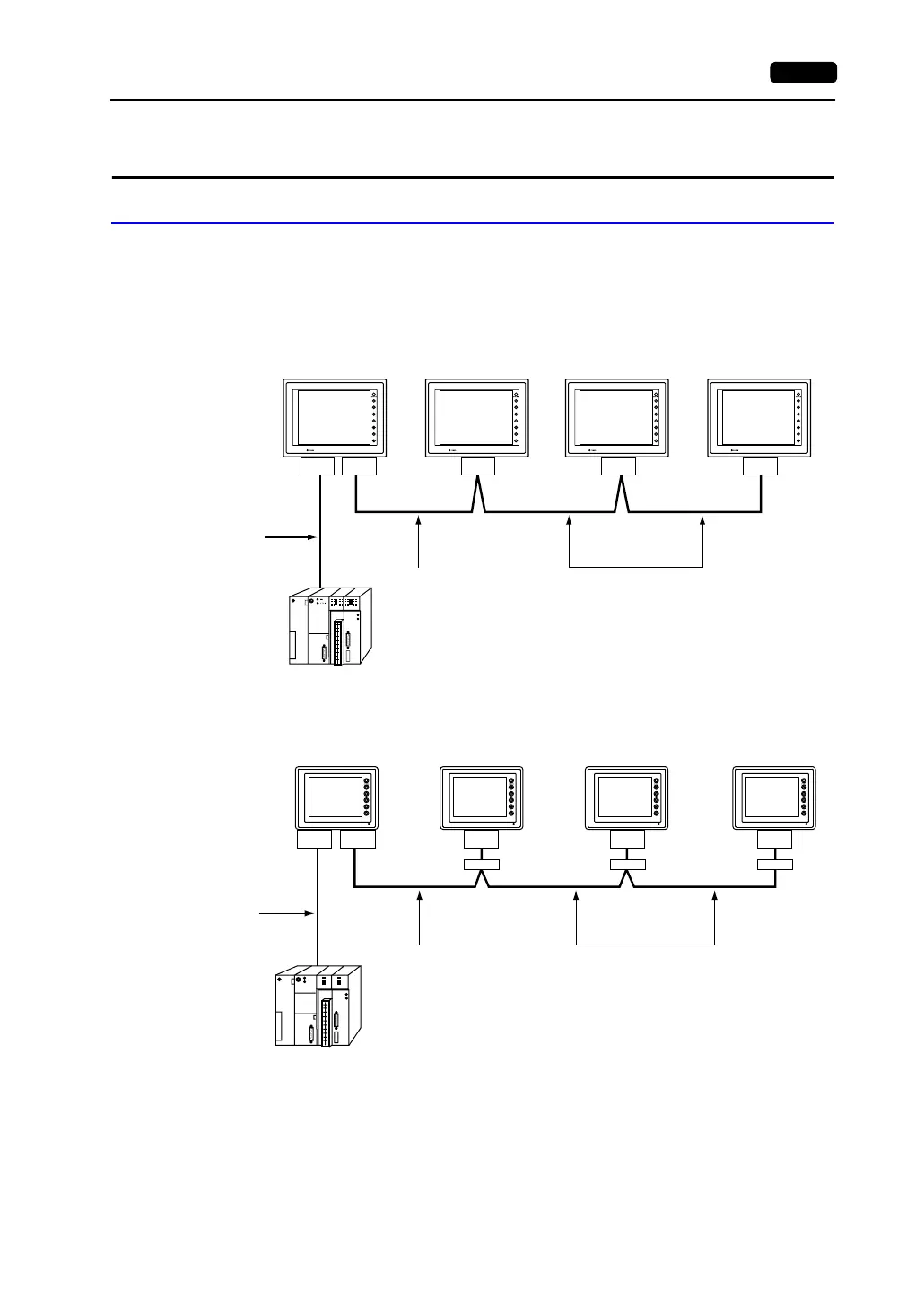

PLC
RS-232C
RS-422
RS-485
CN1 MJ2 CN1 CN1 CN1
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
. . .
RUN
STOP
PLC
RS-232C
RS-422
RS-485
MJ2 MJ1 MJ2 MJ2 MJ2
Hakko Electronics’ cable
“V6-MLT” (3 m)
RS-485 connection
V7 master station V7 slave station V7 slave station
Local port 1 Local port 2 Local port 3 Local port 4
V7 slave station
Hakko Electronics’ cable
“V6-MLT” (3 m)
RS-485 connection
V706 master station V706 slave station V706 slave station
Local port
1
Local port
2
Local port
3
Local port
4
V706 slave station
*
* In the case of V706 + DU-01, connect to “CN1.”
***
On a network with V706 units, a PLC is connected to MJ2 of the master station, the MJ1 of the
master station is connected to MJ2 of the slave stations, and the slave stations are connected
with each other via MJ2.
