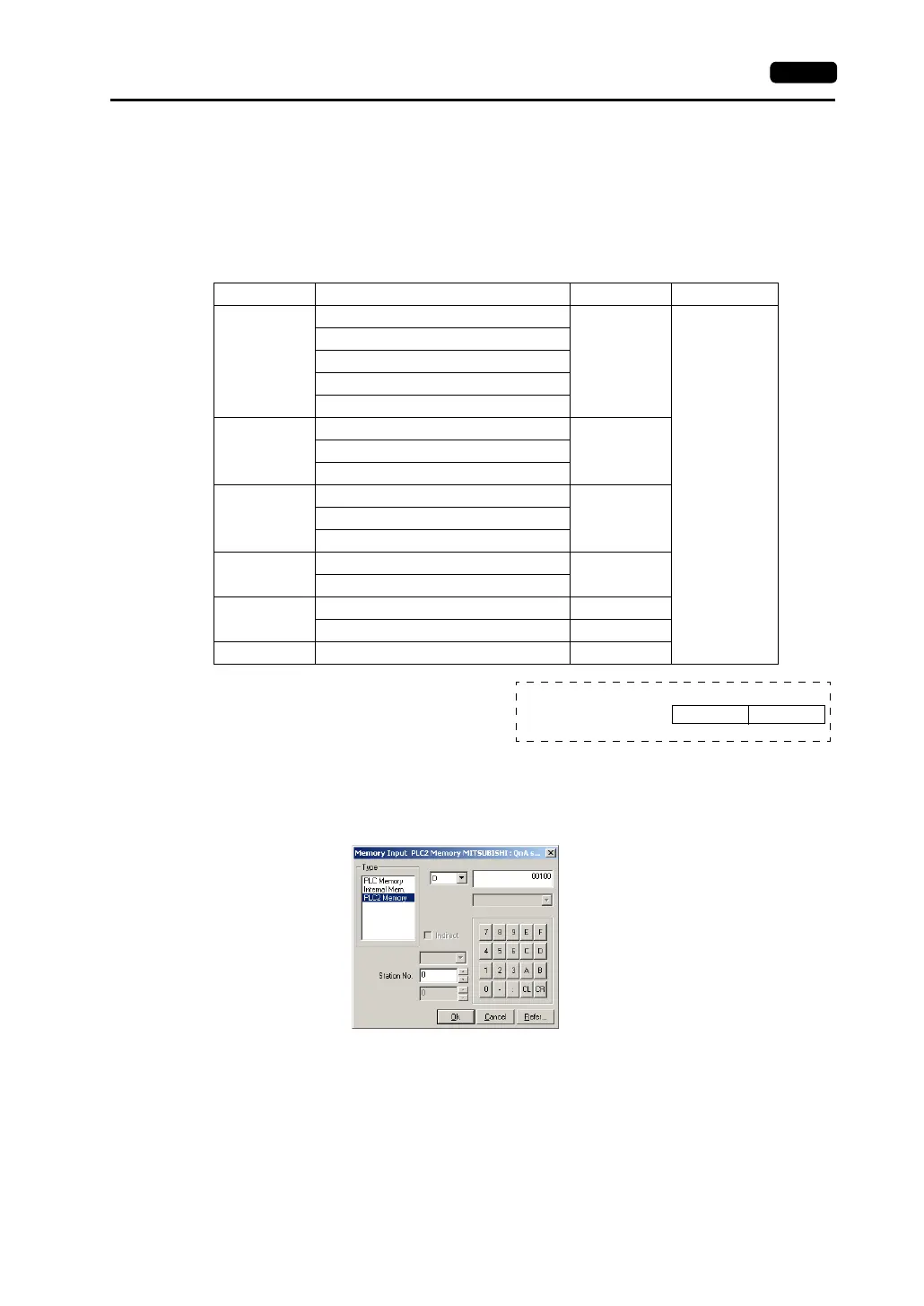

Hakko Electronics V Series User Manual

Appendix 1 PLC2Way App1-9
Code and Text Processing
For the PLC connected at the MJ port, code and text processing cannot be set in the [Temp.
Control/PLC2Way Comm. Setting] dialog.
• Code (numerical data input format)
The code is fixed as shown below.
For numerical data, such as those for data displays or data sampling in the sampling mode, BCD
or DEC should be chosen for [Input Type].
• Text processing
For processing characters, the arrangement
of the 1st and 2nd bytes in one word is fixed
as LSB → MSB as shown on the right.
Setting the PLC Memory Connected at the MJ Port
1. Open the [Memory Input] dialog for the part where the PLC memory connected at the MJ port
should be allocated.
2. For the PLC memory connected at the MJ port, select [PLC2 Memory] for [Type] and specify the
memory address.
3. Set the port number of the PLC.
Manufacturer Model Code Text Processing
MITSUBISHI
A series link
DEC
LSB → MSB
QnA series link
QnH (Q) series link
QnH (Q) series CPU
FX series link (A Protocol)
OMRON
SYSMAC C
BCDSYSMAC CV
SYSMAC CS1
SHARP
JW series
BCDJW100/70H COM port
JW20 COM port
YOKOGAWA
FA-M3
DEC
FA-M3R
Fuji Electric
MICREX-F series BCD
FLEX-PC series DEC
MATSUSHITA MEWNET DEC
[LSB → MSB]
MSB
LSB
15 0
2nd byte 1st byte
