Appendix 6 Universal Serial Communications App6-3

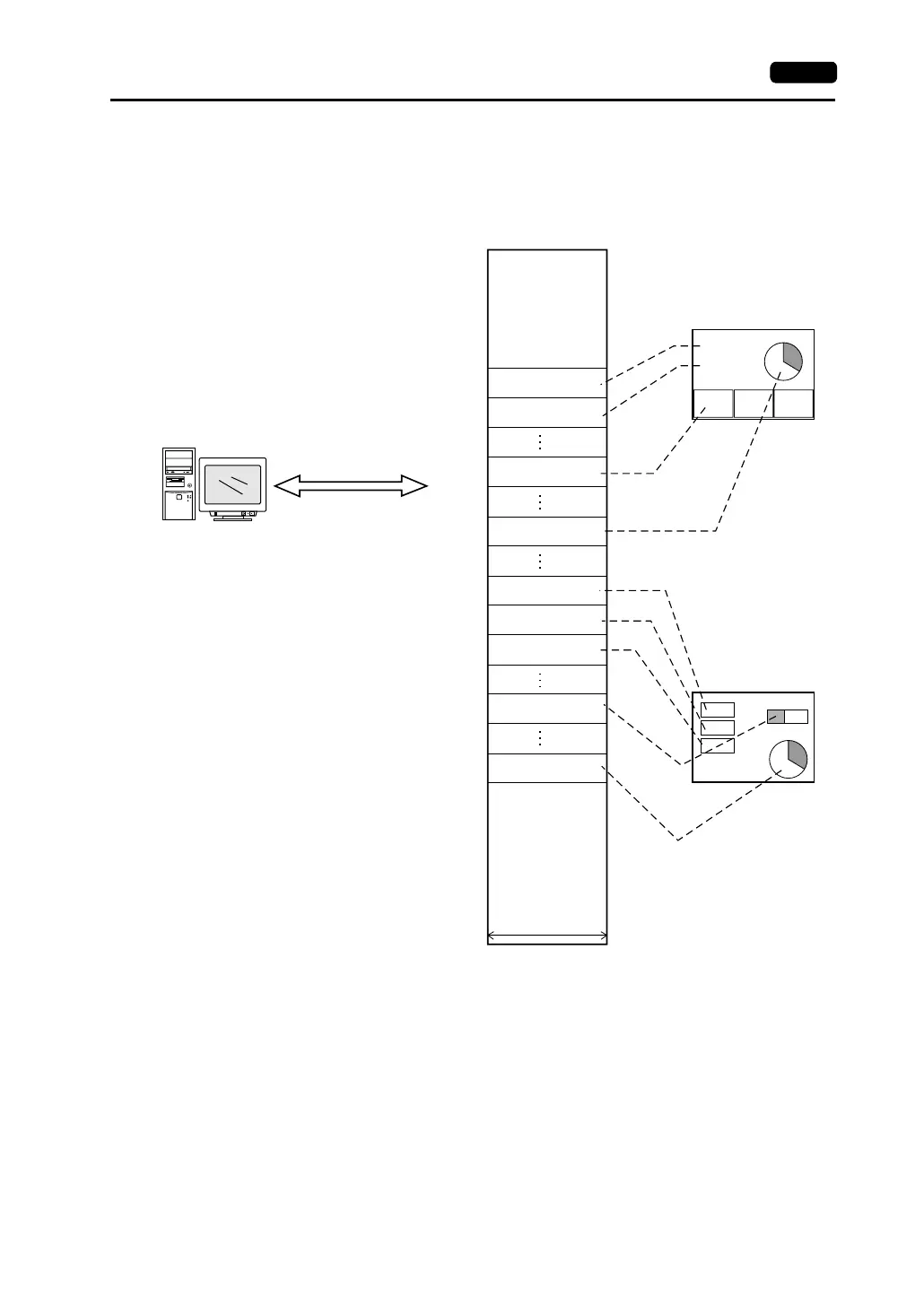

Memory settings (for lamp, data display, etc.) are required during screen creation, and the
memory addresses are mapped as shown below. The memory addresses are $u0 to 16383.
Assign memory addresses for system, lamp, data display, and mode within this range.
1234
1234
1234
1234
1234
0
0016
0017
0020
0030
1200
1201
1202
1350
1352
16383
RESET
disc
General-purpose
computer
Screen No. 1
Dedicated commands
Read
Write
V series screen data
Screen No. 0
V series internal
user memory ($u)
Word
(16 bits)
