7. FATEK AUTOMATION PLC 7-3

RS-422

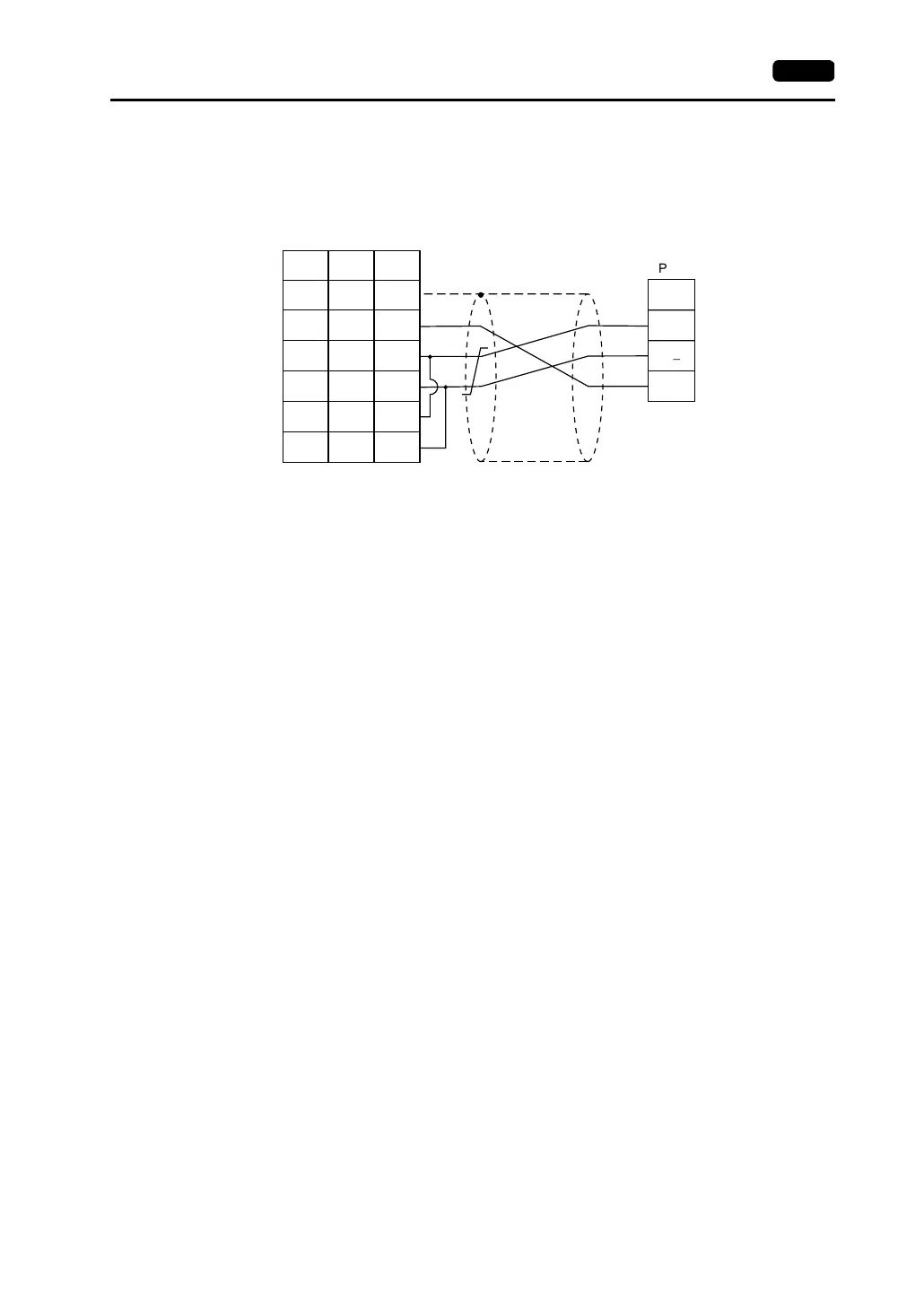

Wiring Diagram 3

D+

PLC

+SD

-SD

+RD

-RD

SHELL

* Use shielded twist-pair cables.

D-sub 25-pin (male)RJ-45 8-pin

V Series

CN1

V706

MJ2

*1 Pin No. 1 of CN1 is used

as FG.

The metal shell of the

modular jack 2 on the

V706 is used as SG.

Signal

Name

Pin No. Pin No.

Signal

Name

Default Chapter4
