Modules and transducers
QuantumX A03031_24_E00_01 HBM: public 109
Notice
The transducer excitation voltage can be set in the range of 5 ... 24 V (as
described in 6.1.2) is only available on channels 1 ... 8.
On channels 9 ... 16 the supply voltage (10 ... 30 V) from the module (e.g. 24
V) is output less approx. 1 V.
A current of max. 30 mA can be consumed for these channels. The current
limitation switches the transducer excitation off if current consumption is
higher.
8.10.2 MX1601B status display
The front panel of the universal amplifier has a system LED and 16 connection
LEDs. The system LED indicates the status of the device, the connection LEDs
the states of the individual connections.
System
LED
Connection LED
Connection LED

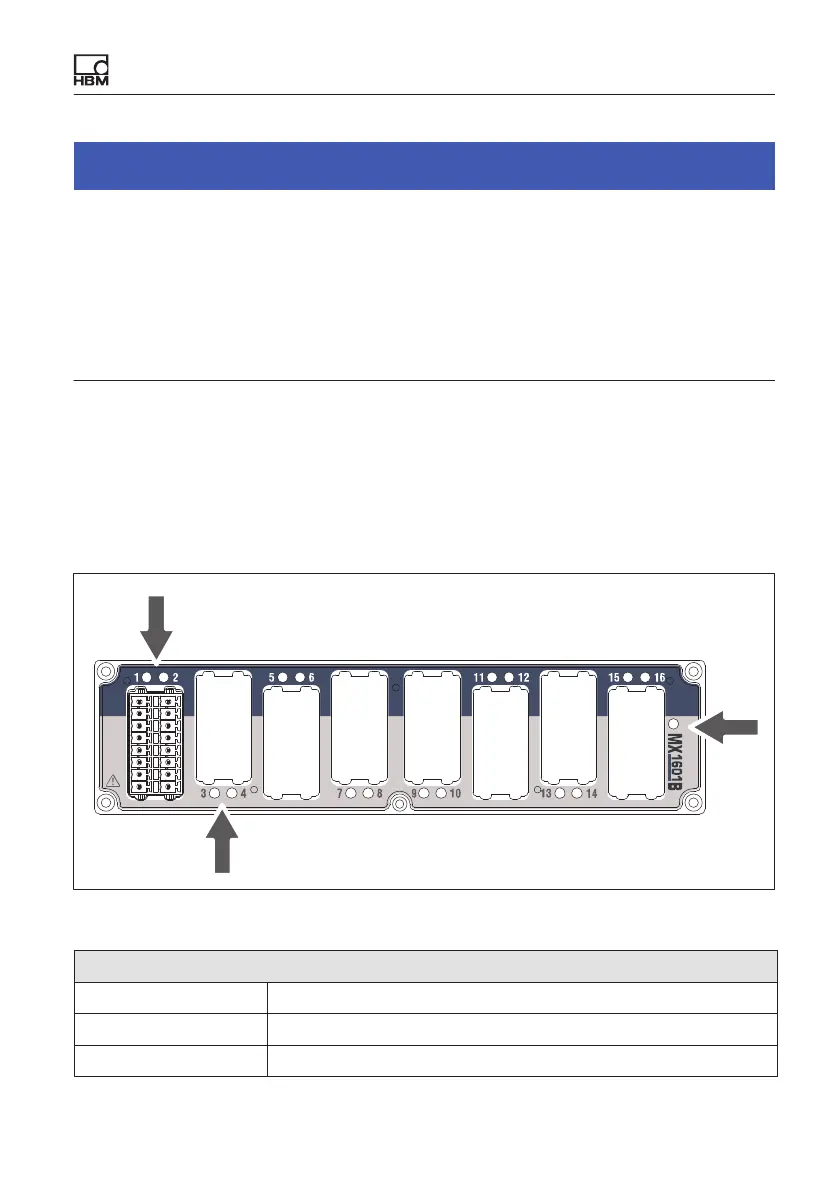

Fig. 8.17 MX1601B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
